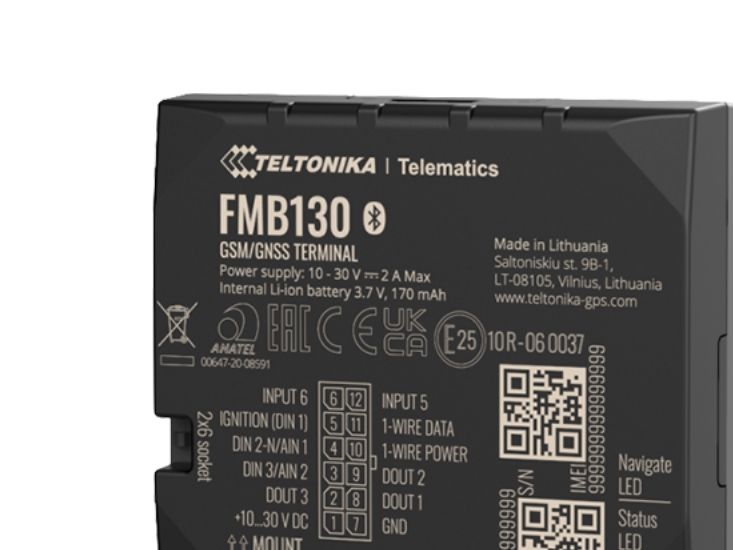

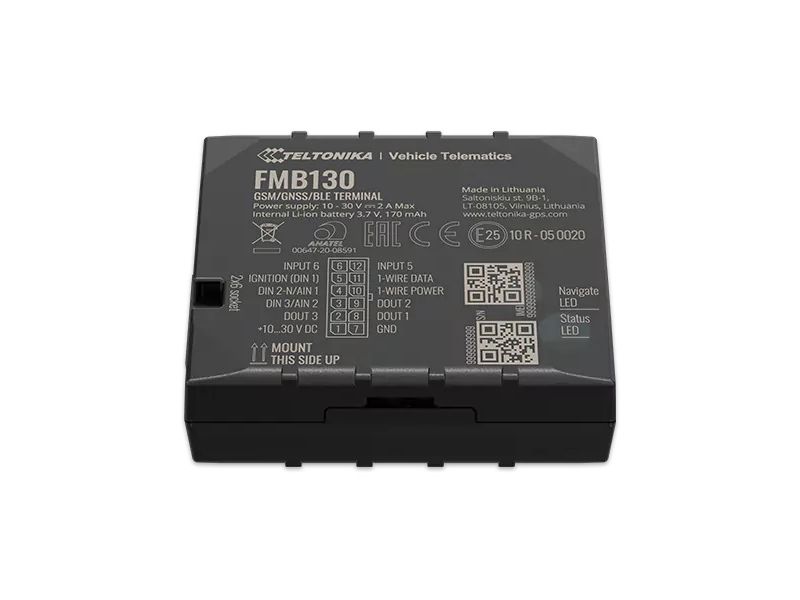

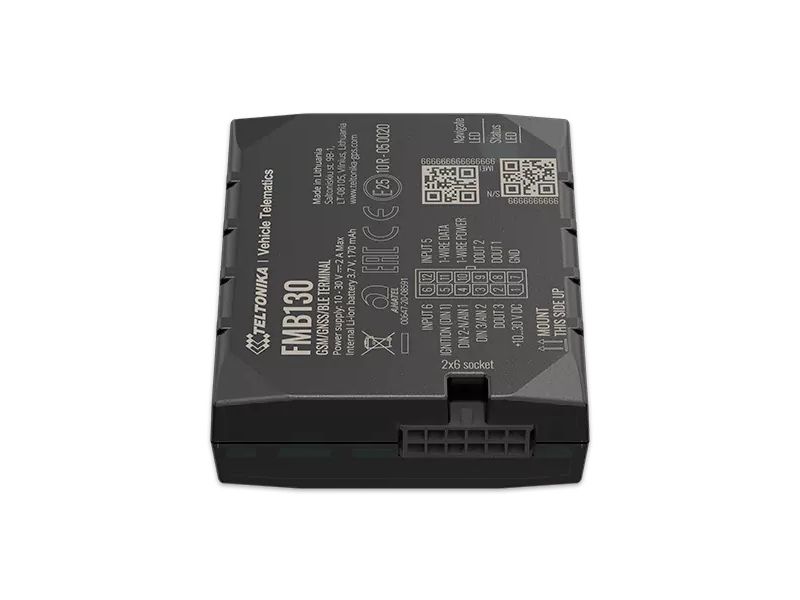

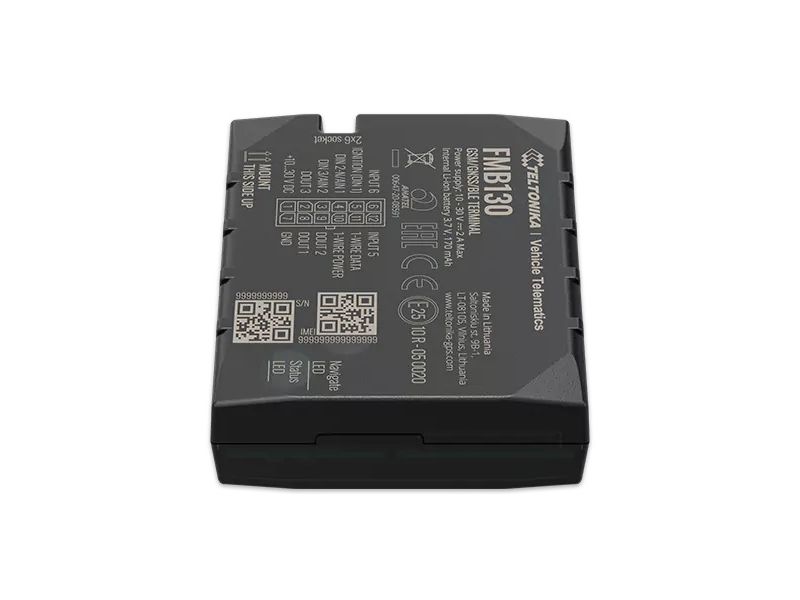

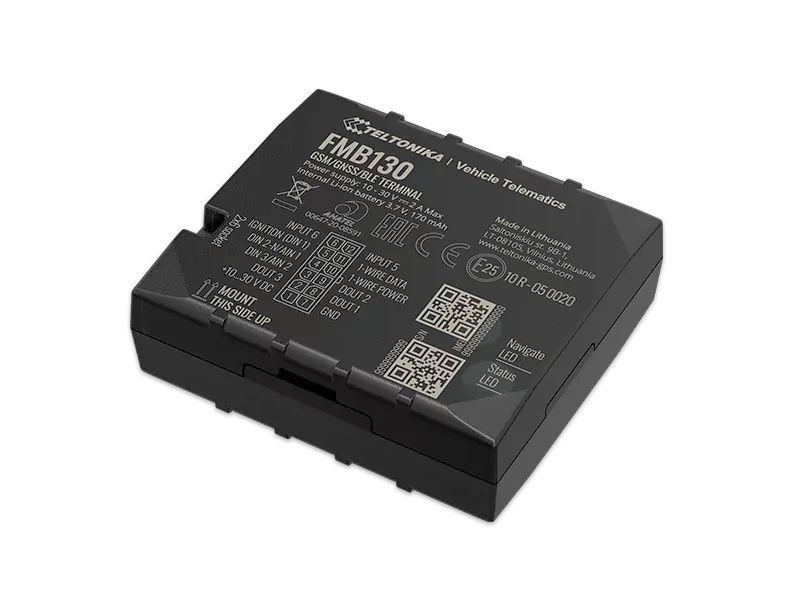

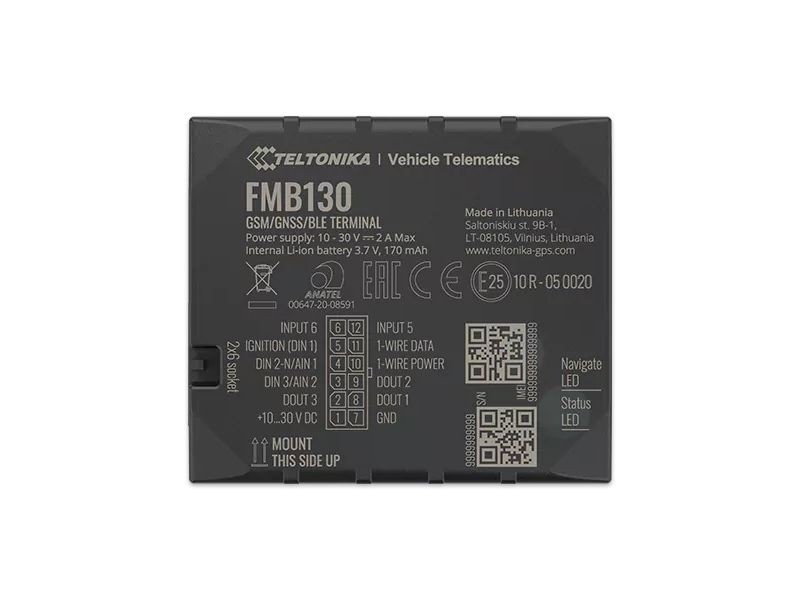

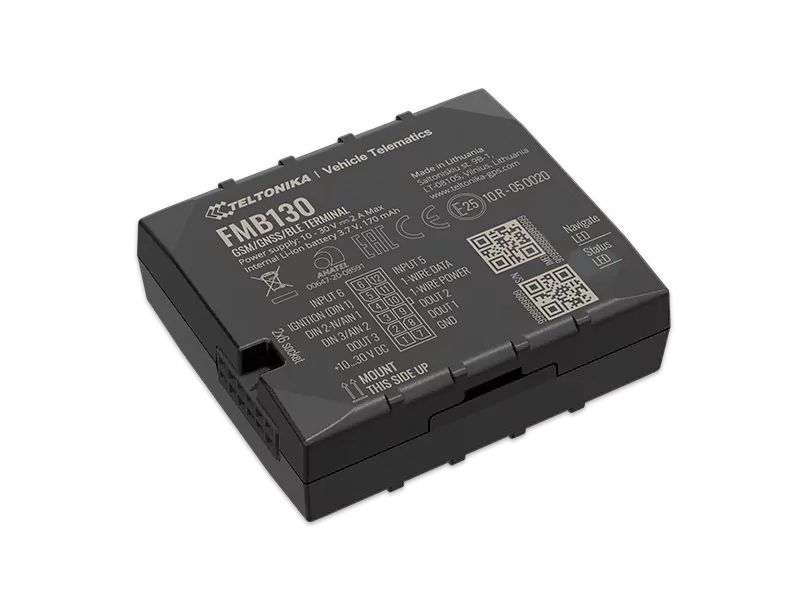

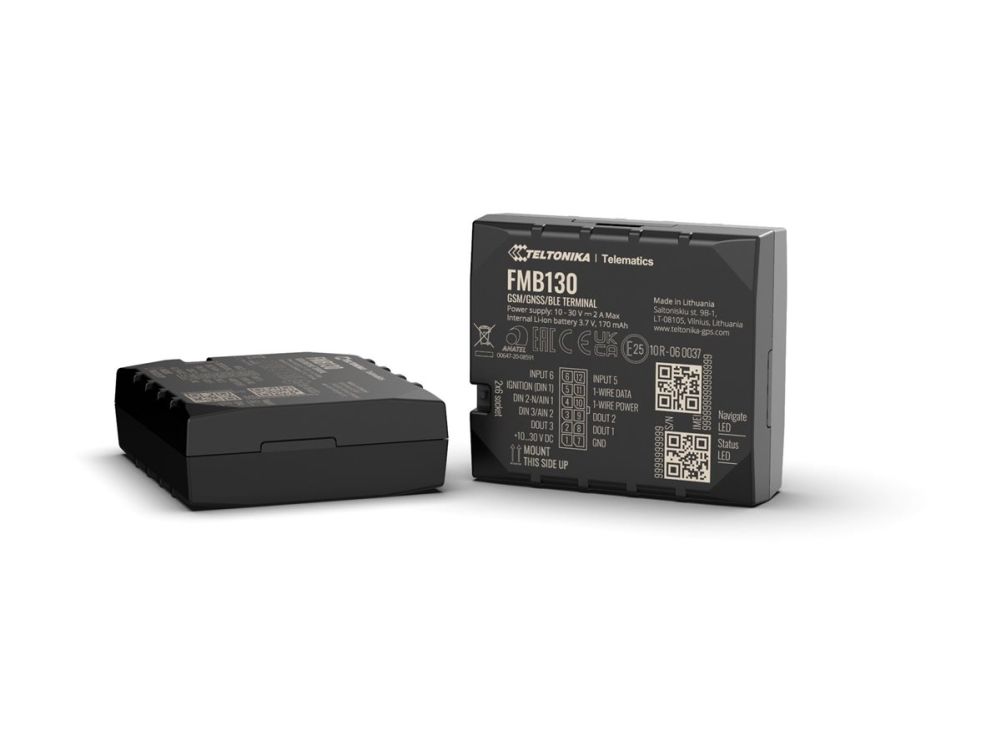

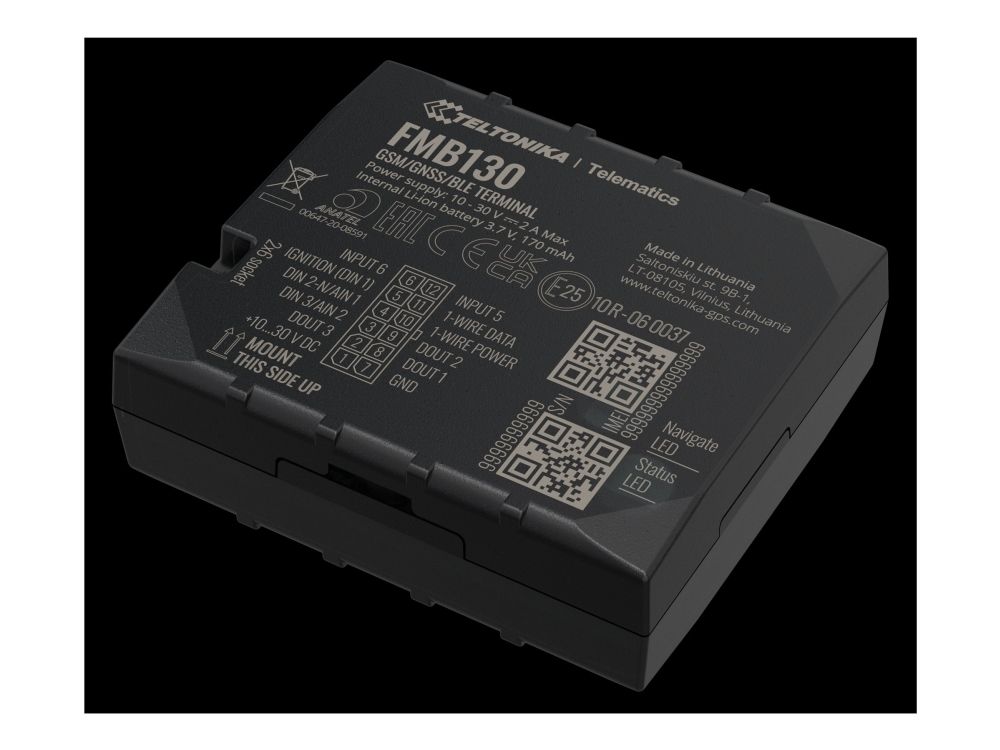

FMB130 is ADVANCED tracker with internal GNSS, GSM antennas, configurable digital/analogue inputs/negative input/impulse inputs, three DOUT outputs, Bluetooth connectivity and backup battery.
Teltonika keeps its promise to make IoT Easy. FMB130 device is the first device with negative input possibility. It allows you to save your precious integration time while connecting accessories like vehicle door sensor, alarm button, seatbelt detection and similar sensors or accessories.
Additionally, we have integrated possibility to enable Impulse Input for fuel flow meter data reading. Impulse based fuel usage control is much more accurate than different kind of fuel level sensors and enables possibility to be precise if needed. It is perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment.
We have added one additional Digital Output. Now it is 3 of them in total! It is not surprising that DOUT is the most popular connection type on FMB1 family devices. It`s allows you to use simultaneously 3 different DOUT scenarios like: immobilizer, buzzer, alarm lights, door lock and others.
New FMB130 is the first advanced vehicle tracking system with programmable DIN/AIN/Negative/Impulse input. First input has following choices: Digital, Analog, Negative, Impulse. Second input may be Digital or Analog.
With these new features you can have one tracking system for much wider range of use cases.
Indbygget GSM-modul (GSM 850/900/1800/1900), A-GPS teknologi, SMS-notifikationer, LED-indikator, micro-SIM-plads, IP41 support, accelerometer, brændstofsmåler, GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep, Time Synchronization
Dimensioner (B x D x H)
5.66 cm x 6.5 cm x 2.06 cm
Vægt
55 g
Generelt
Produkttype
GPS/GLONASS/GALILEO/BeiDou/QZSS-sporingsenhed
Modtager
33 kanaler - Teltonika TM2500
Grænseflade
Bluetooth, USB 2.0, CAN bus
Nøjagtighed
Position - 2.5 m
Sporings Følsomhed
-165 dBm
Antenne
Indbygget
Intern hukommelse
128 MB
Egenskaber
Indbygget GSM-modul (GSM 850/900/1800/1900), A-GPS teknologi, SMS-notifikationer, LED-indikator, micro-SIM-plads, IP41 support, accelerometer, brændstofsmåler, GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep, Time Synchronization
Akkvisitionstid
Hurtig
1 sekund
Varm
25 sekunder
Kold
35 sekunder
Tilslutninger
Interface
USB 2.0 - mikro-USB Type B CAN bus Digital/analog input/output
Batteri
Type
Litiumion
Kapacitet
170 mAh
Mål og vægt
Bredde
5.66 cm
Dybde
6.5 cm
Højde
2.06 cm
Vægt
55 g
Miljømæssige parametre
Min. driftstemperatur
-20 °C
Maks. driftstemperatur
85 °C
Fugtighedsgrad ved brug
5 - 95 % (ikke-kondenserende)
