Icy Dock MB021VP-B, SSD enclosure, 2.5", Serial ATA, SAS, Black
Item no.: [8222408] | Manufacturer: ICY DOCK | Model no.: MB021VP-B | EAN: 4713227445658
Remote stock (2-3 days)
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
87,61
Incl. VAT 109,51
Total incl. delivery
124,51
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail

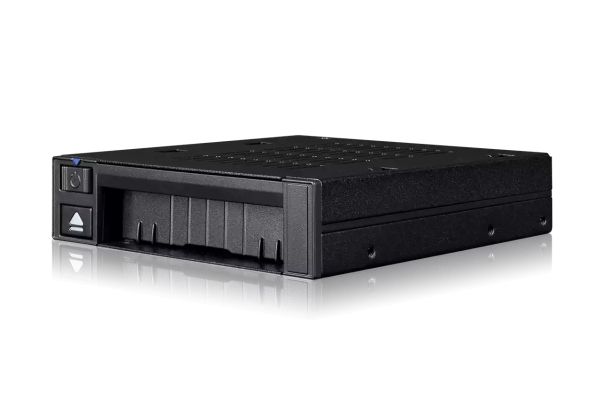

The flexiDOCK MB021VP-B is a compact U.2 NVMe PCIe 3.0/4.0 SSD mobile rack enclosure supporting up to 64Gbps data transfer speeds through a Slimline SAS (SFF-8654) connection. It fits into a computer case's external 3.5" drive bay (floppy bay) and allows tray-less & door-less drive installation and removal. Users can access their enterprise U.2 SSD without opening the computer case or using any tools or screws. Simply insert a U.2 SSD and switch on the drive power, you are all set to go.
Tool-less, Removable & Elegant

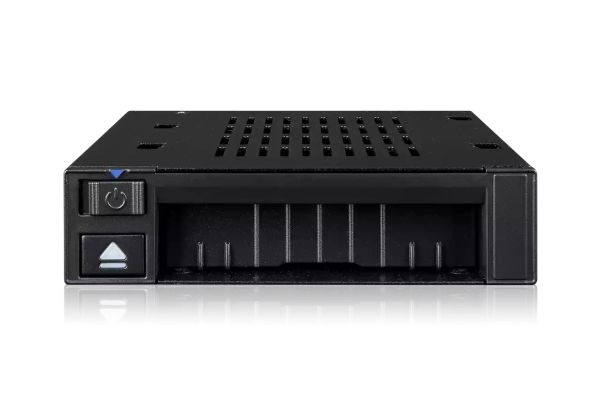

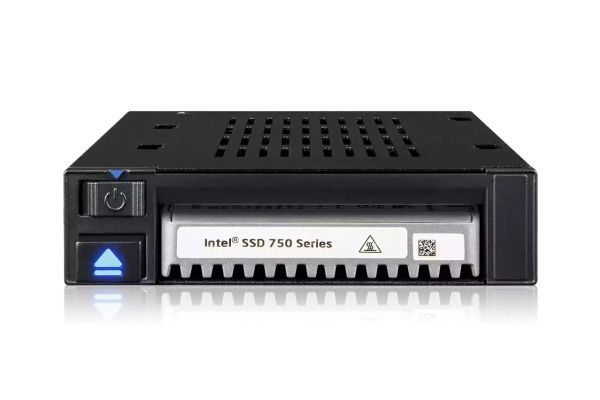

The open front tray-less design lets users swap their bare U.2 NVMe SSDs within seconds. When a drive is inserted into MB021VP-B, the drive ejection button extends out. To remove the drive, press the ejection button back in and the drive will pop out. The Elegant & Easy-to-read LED drive activity light is built into the ejection button, indicating the drive's status.
Intelligent Drive Guiding Mechanism

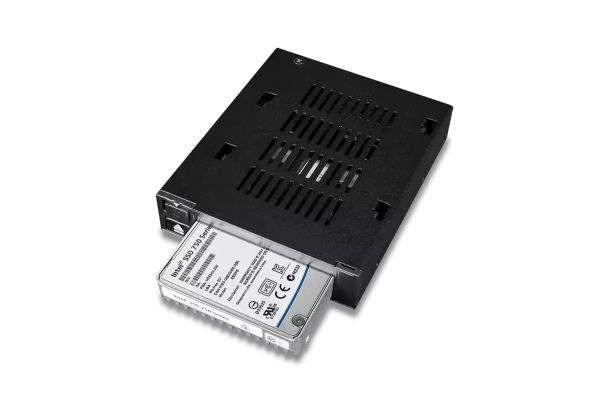

We designed an intelligent drive guiding mechanism for a smooth and steady drive insertion/removal whether you are using a 7mm or 15mm height U.2 SSD. There are two drive guiding pecks on either side of the drive and a metal flap in the rear that adjusts automatically based on the drive height. Each guiding peck clamps the drive tightly while the adjustable metal flap pushes the drive down to improve the drive stability.
Superior Performance
To unlock the full performance of U.2 NVMe PCIe 4.0x4 SSD, the MB021VP-B uses Slimline SAS (SFF-8654) connector to supports up to 64Gbps transfer rates and is backward compatible with U.2 NVMe PCIe 3.0 x4 SSD up to 32Gbps.
Individual Drive Power Switch
flexiDOCK MB021VP-B is equipped with a slide power switch, allowing users to power off the drives while not in use and achieving reduced power consumption and elongated drive's life expectancy. It also helps against unforeseen malicious cyber attacks.
Packed with Features
The drive slot is covered by a spring-loaded dust cover to prevent dust and debris from entering the device and system.
The heavy-duty metal housing is able to withstand the harshest environments and offers ample heat dissipation for high wattage U.2 NVMe SSD. In addition, the Multi-Flow Technology allows air to move freely through the ventilation holes place on top and bottom of the device and keeps a low drive temperature.
Exceptional Product Compatibility
The MB021VP-B is compatible with motherboards, RAID/HBA cards, and M.2 adapters from major brands including Adaptec, Areca, Broadcom, HighPoint, Supermicro, and more. This compatibility gives you the freedom to choose from a wide range of hardware options, moving beyond the constraints of single-brand system configurations. For more information on product compatibility

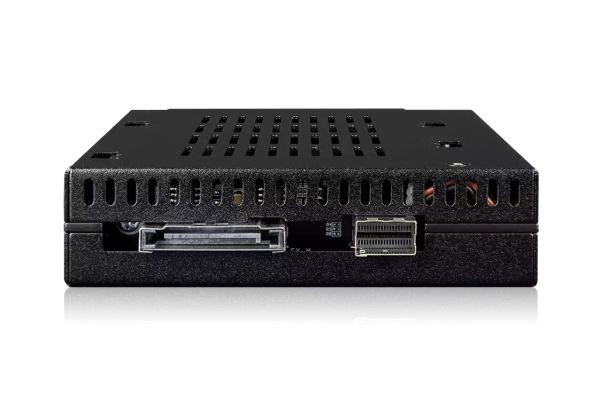

The Slimline SAS and SATA power connectors support data and power cables with a locking latch design. Once the cables are connected, they will stay in place to prevent unintentional disconnections.
(Optional) M.2 NVMe SSD to U.2 NVMe SSD Adapter
Converting your M.2 NVMe SSD into U.2 NVMe SSD with the EZConvert MB705M2P-B adapter offers tool-less SSD installation and comes with a large heatsink designed explicitly for high-speed M.2 NVMe SSDs. The MB705M2P-B uses a bridge connector to link the M.2 NVMe SSD, ensuring that the gold fingers of the M.2 NVMe SSD are protected from damage during insertion and removal. This makes it an ideal solution for users who frequently swap M.2 NVMe SSDs.
(Optional) 3.5" to 5.25" Drive Bay Bracket
Converting your 5.25" device bay into a 3.5" device bay with Flex-Fit MB343SP drive bay bracket, it features a solid one-piece design with additional dual 2.5" drive slots for extra drive storage.
Explore our range of compatible cables to simplify your setup process, eliminating the need for extensive research and ensuring a more straightforward experience.
We offer a wide selection of similar products that uses the same rear connections. Simply click on the products below for additional details.
Customizable ICY DOCK Drive Enclosures: Tailored to Meet TAA & UL Certification Standards and More!At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.
Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you'll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
