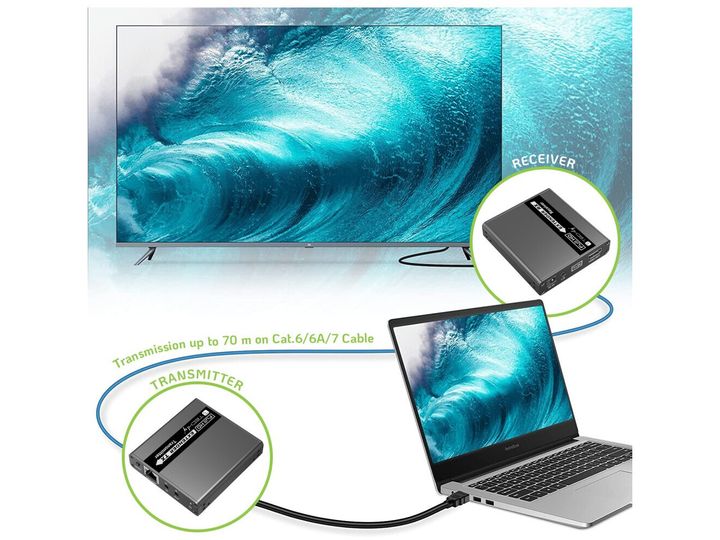

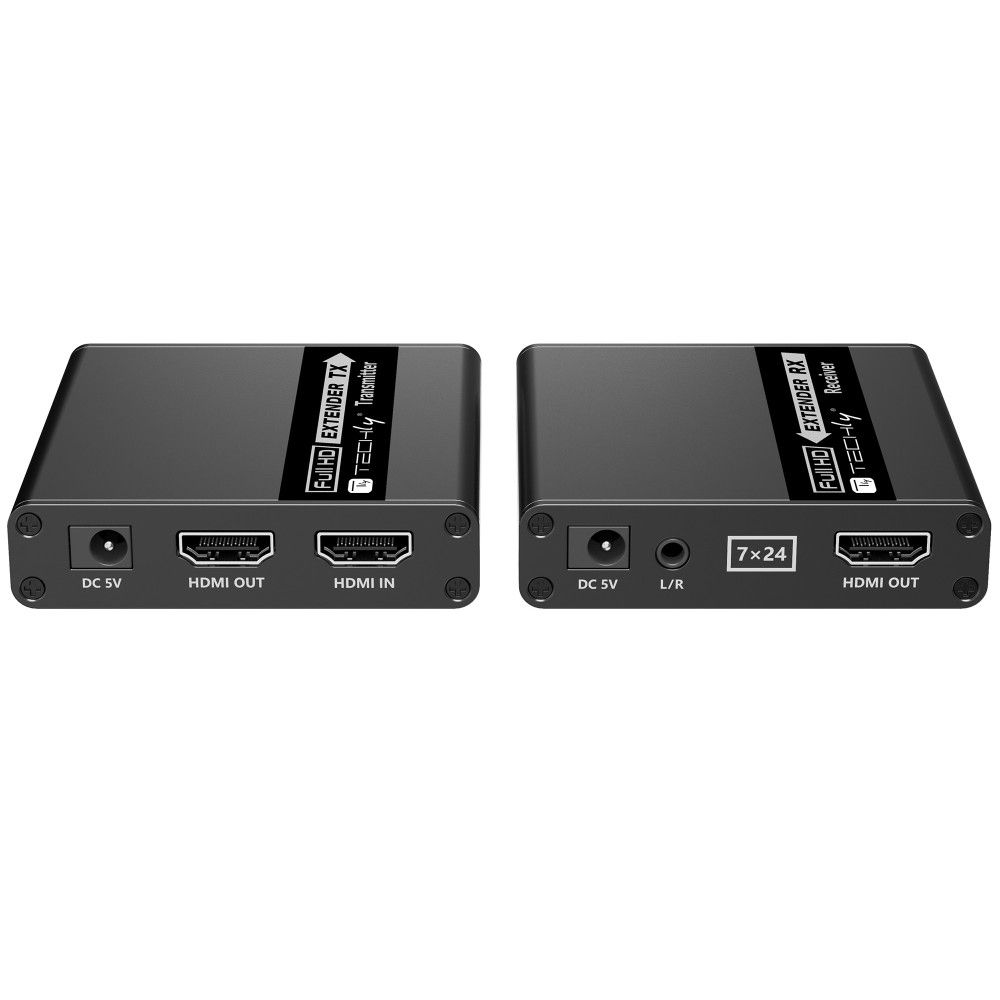

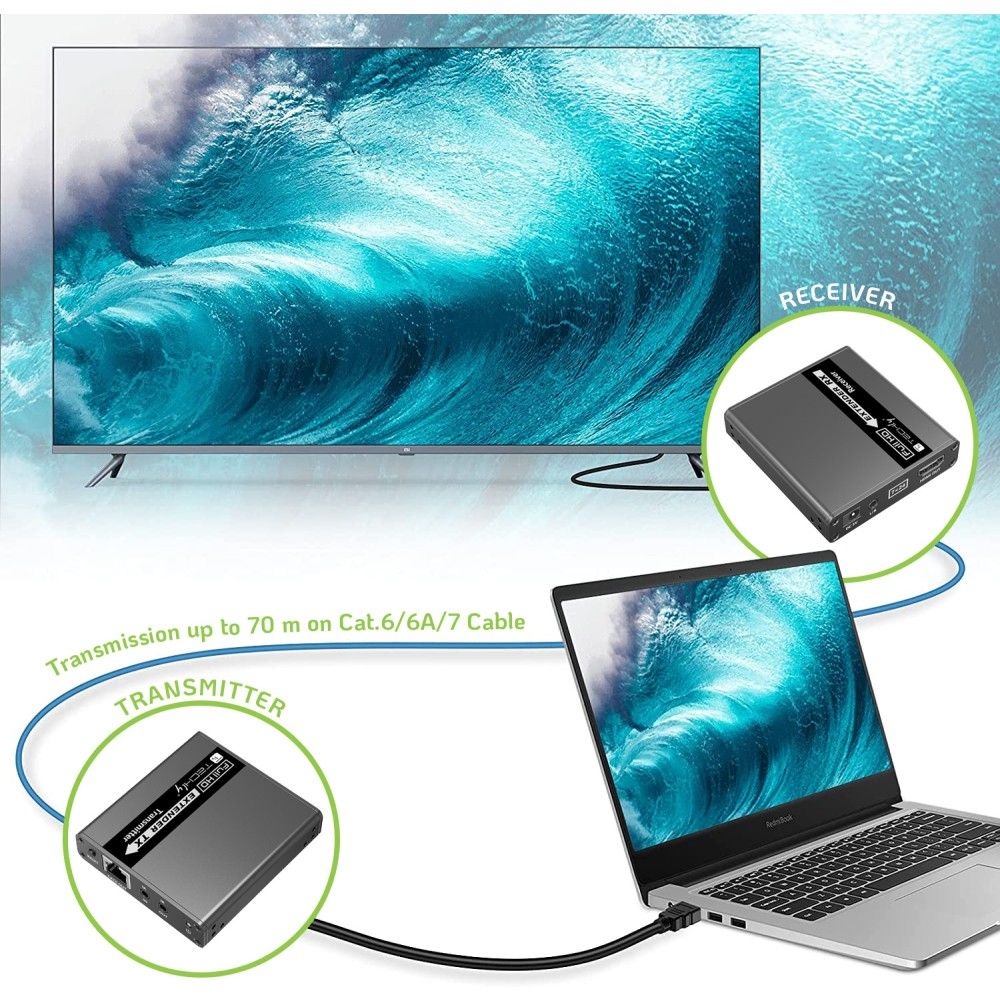

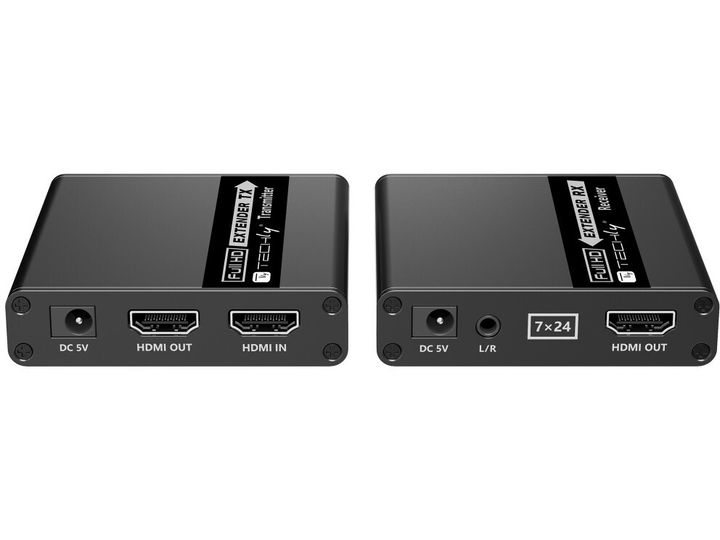

IDATA EXT-E223 is an HDMI extender which includes a transmitter unit and a receiver unit. Allows HDMI signal transmission up to 70 meters at 1080p resolution using a Cat6 / 6A / 7 network cable. Adopts point-to-point connection configuration, supports bidirectional IR pass-back and 3.5mm stereo audio output. It is perfect for outdoor advertising, as a monitoring system, home entertainment, conferencing and more.
Type
AV transmitter & receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat6, Cat6a, Cat7
Maximum transfer distance
70 m
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10)
Maximum refresh rate
60 Hz
Extended display identification data (EDID)
Yes
IR pass-through
Yes
Electrostatic Discharge (ESD) protection
Yes
Infrared (IR) frequency range
20 - 60 kHz
LED indicators
Power
Supported video modes
480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions
800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 960, 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Audio formats supported
DTS, LPCM, PCM
HDCP
Yes
Material
Aluminium
HDCP version
1.4
Product colour
Black
Connectivity technology
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
2
HDMI version
1.3
Audio (L/R) out
1
Remote (IR) input
2
Remote (IR) output
2
DC-in jack
Yes
Power source type
DC
Operating voltage
5 V
Power consumption (TX)
2.5 W
Power consumption (RX)
2.5 W
Operating temperature (T-T)
20 - 60 °C
Storage temperature (T-T)
30 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Width
75 mm
Depth
80 mm
Height
18 mm
Weight
525 g
AC adapter included
Yes
Manual
Yes
IR blaster included
Yes
IR receiver included
Yes
Compliance certificates
CE
Vendor code
363005
Audio support
Yes
