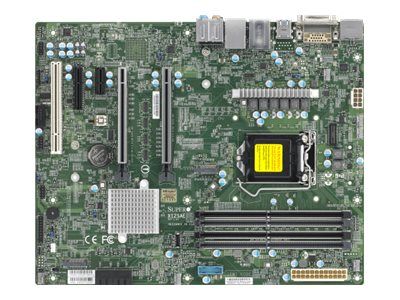

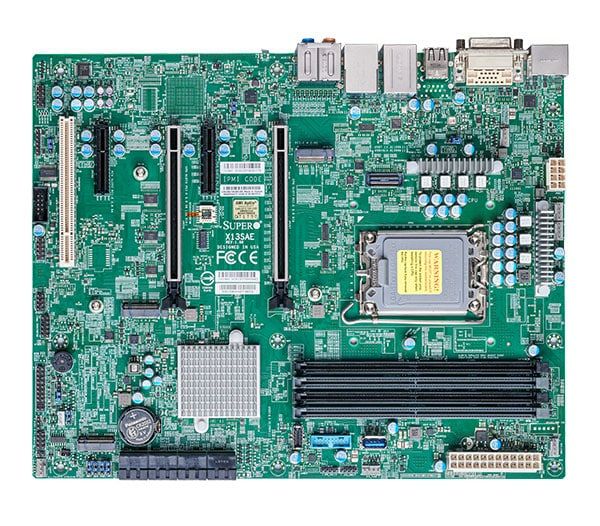

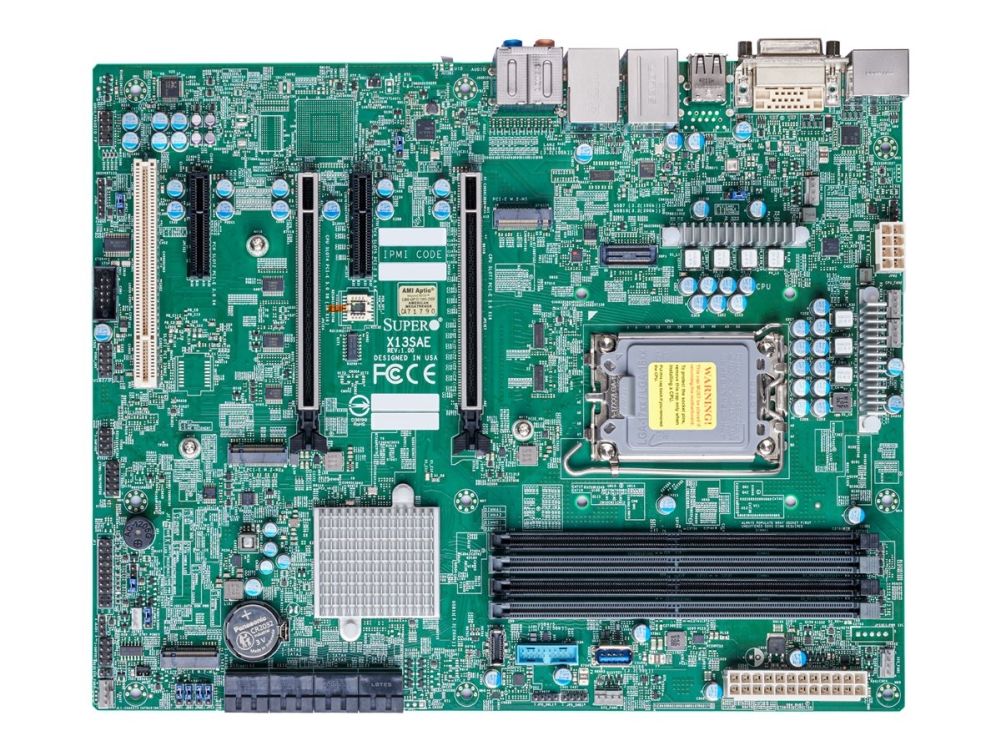

Supermicro MBD-X13SAE, Intel, LGA 1700, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, DDR5-SDRAM, 192 GB, DIMM

Item no.: [8711365] | Manufacturer: SUPER MICRO Computer | Model no.: MBD-X13SAE-O | EAN: 0672042472840

Remote stock (14-21 days)

The item is in a remote warehouse, delivery time is 14-21 business days. More info

Shipping @price - GLS

12,00

EUR 486,97

Incl. VAT 608,71

Total incl. delivery 623,71

Read further specifications and description

Supermicro motherboards are designed to provide you with high standards in quality and performance.

Produktbeskrivelse	SUPERMICRO X13SAE - bundkort - ATX - LGA1700 sokkel - W680
Produkttype	Bundkort - ATX
Chipsættype	Intel W680
Processor-socket	1 x LGA1700 sokkel
Kompatible processorer	Core i3, Core i5, Core i7, Core i9 (Maksimal TDP 150 Watt)
Max RAM-størrelse	192 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, ECC, ikke bufferet
Lagringsporte	8 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte	1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
Audio	HD Audio
LAN	Gigabit Ethernet, 2.5 Gigabit Ethernet
Producentgaranti	3 års garanti
Designet for	S5 GS5A-754K; SC732 D3-903B, D4-668B, D4-903B; SC842 TQC-668B

Generelt
Produkttype	Bundkort - ATX
Chipsættype	Intel W680
Processor-socket	LGA1700 sokkel
Max antal processorer	1
Kompatible processorer	Core i3, Core i5, Core i7, Core i9 (Maksimal TDP 150 Watt)
Understøttet RAM
Maks. størrelse	192 GB
Teknologi	DDR5
Bus Clock	4400 MHz, 4000 MHz, 3600 MHz
Understøttet RAM-integritetskon	Ikke-ECC, ECC
Registreret eller buffer	Ikke bufferet
Audio
Type	HD Audio
Audio codec	Realtek ALC888S
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværk controller	Intel I225-V / Intel I219LM
Netværks interfaces	Gigabit Ethernet, 2.5 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins (1.1 V) 2 x PCIe 5.0 x16 (x16/x0, x8/x8 modes) 1 x PCI (5 V) 2 x PCIe 3.0 x4 3 x M.2 socket (2280 M.2 Key M-åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
Interface	1 x LAN (Gigabit Ethernet) 1 x LAN (2.5Gigabit Ethernet) 2 x USB 2.0 1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 2 1 x HDMI 1 x DVI 1 x DisplayPort 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 1 x USB 3.2 Gen 1
Interne interfaces	2 x USB 3.2 Gen 1 - intern stik 2 x USB 2.0 - intern stik 1 x USB-C 3.2 Gen 2x2 - intern stik 1 x seriel - intern stik 1 x SPI - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	ACPI 6,0 support, SMBIOS 3,0 support, genoprettelse af strømafbrud (genoprettelse af AC-tab)
Hardwareovervågning	CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding, blæserkontrol
Sov/ Vågn	Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber	WatchDog Timer, chassis intrusion styring, diagnose LED's
Diverse
Udstyr inkluderet	I/O- bagvæg
Medfølgende ledninger	4 x Seriel ATA kabel
Med software	SuperDoctor 5
Overensstemmelsesstandarder	Plug and Play, RoHS
Bredde	30.48 cm
Dybde	24.38 cm
Pakketype	Detailsalg
Producentgaranti
Service & Support	Begrænset garanti - 3 år
Oplysninger om kompatibilitet
Designet for	Supermicro S5 GS5A-754K Supermicro SC732 D3-903B, D4-668B, D4-903B Supermicro SC842 TQC-668B
