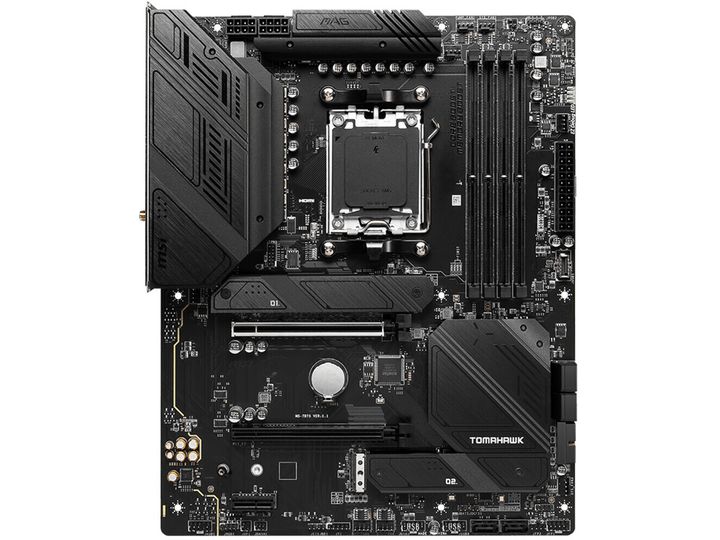

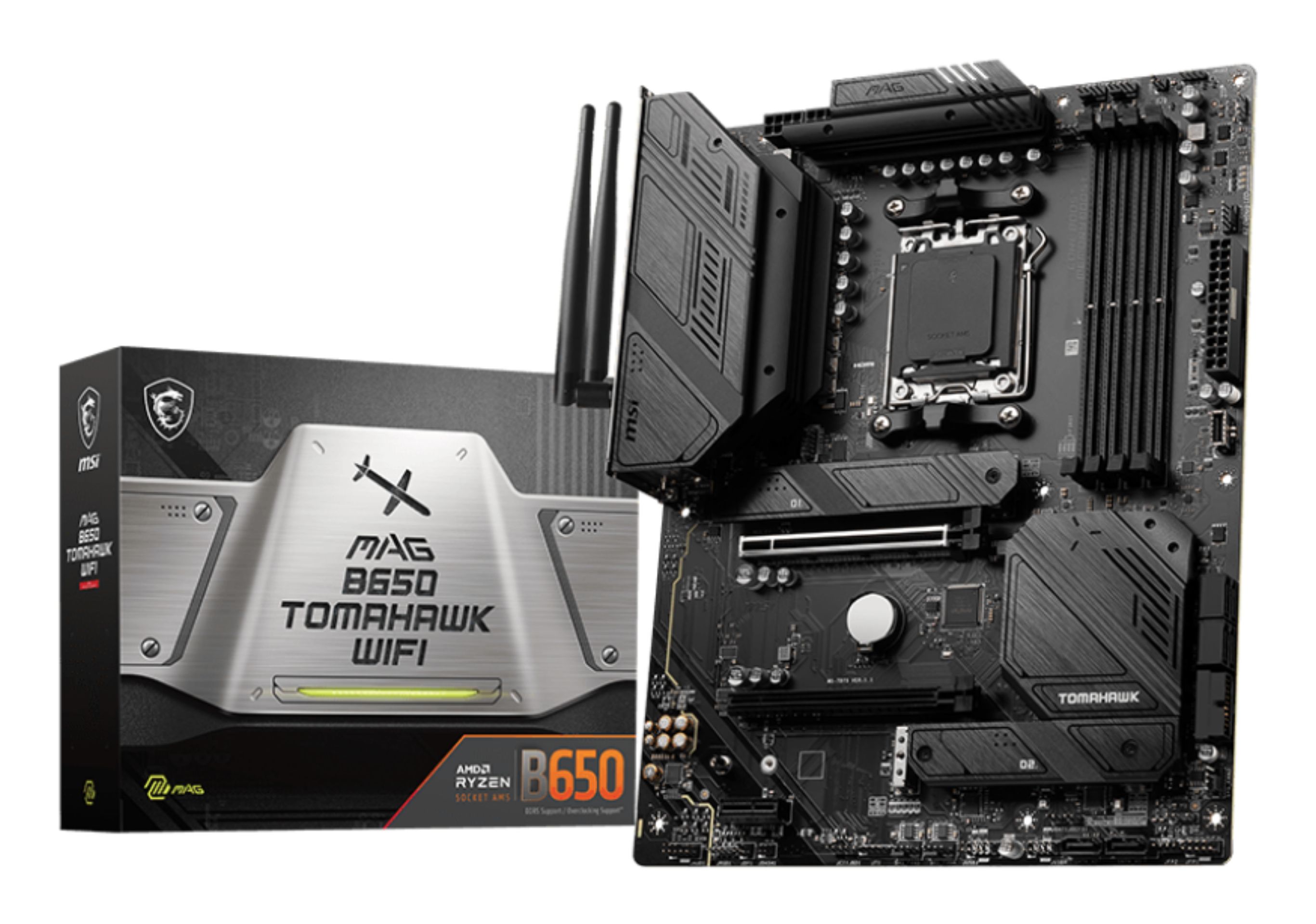

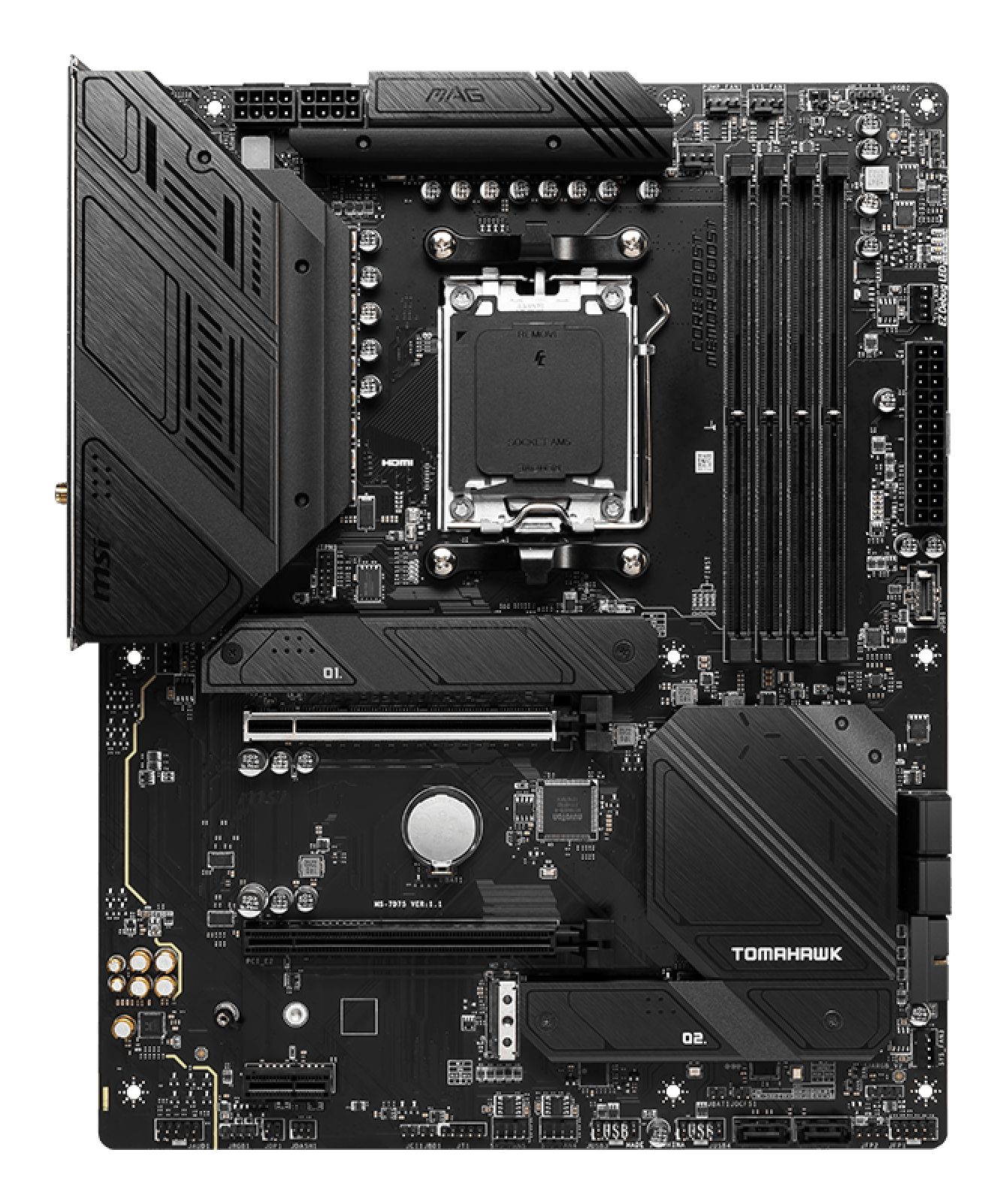

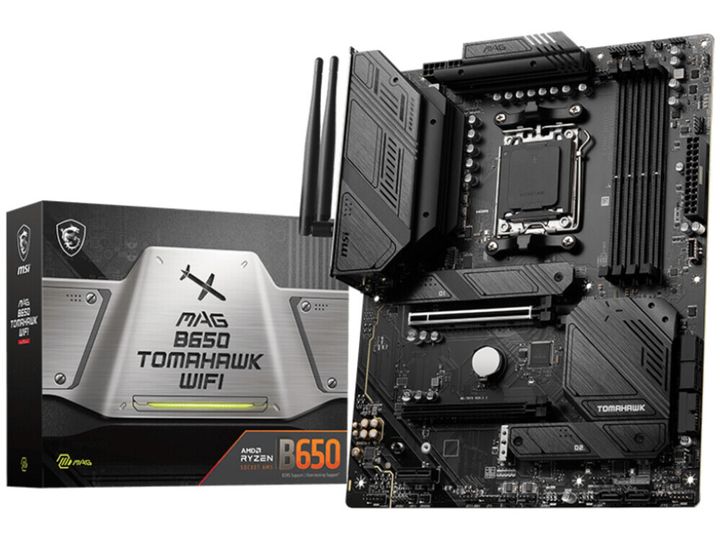

MSI MAG B650 TOMAHAWK WIFI motherboard Socket AM5 ATX DDR5

Item no.: [9148296] | Manufacturer: MSI | Model no.: 7D75-001R | EAN: 4711377010153

Remote stock (4-5 days)

The item is in a remote warehouse, delivery time is 3-4 business days. More info

Shipping @price - GLS

12,00

EUR 230,36

Incl. VAT 287,95

Total incl. delivery 302,95

Read further specifications and description

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Produktbeskrivelse	MSI MAG B650 TOMAHAWK WIFI - bundkort - ATX - Socket AM5 - AMD B650
Produkttype	Bundkort - ATX
Chipsættype	AMD B650 / Nuvoton NCT6687D-R
Processor-socket	1 x Socket AM5
Kompatible processorer	(understøtter Ryzen 7000 Series)
Max RAM-størrelse	256 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte	6 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte	1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2

Generelt
Produkttype	Bundkort - ATX
Chipsættype	AMD B650 / Nuvoton NCT6687D-R
Processor-socket	Socket AM5
Max antal processorer	1
Kompatible processorer	(understøtter Ryzen 7000 Series)
Understøttet RAM
Maks. størrelse	256 GB
Teknologi	DDR5
Bus Clock	7600 MHz (O.C.), 7400 MHz (O.C.), 7200 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz (O.C.), 5400 MHz (O.C.), 5200 MHz (O.C.), 5000 MHz (O.C.), 4800 MHz
Understøttet RAM-integritetskon	Ikke-ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi
Audio
Type	HD Audio (8-kanaler)
Audio codec	Realtek ALC4080
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværk controller	Realtek RTL8125B
Netværks interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4-modus) 1 x PCIe 3.0 x1 3 x M.2 socket (PCIe 4,0 x4 tilstand)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1
Interface	1 x HDMI 1 x DisplayPort 1 x LAN (2.5Gigabit Ethernet) 4 x USB 3.2 Gen 1 1 x audio linje-ud (bagtil) - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ud (frontsurround) - mini-jack 2 x USB 2.0 3 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen2x2 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x audio linje-ud (sidesurround) - mini-jack 1 x SPDIF-ud
Interne interfaces	1 x USB-C 3.2 Gen 2 - intern stik 2 x USB 3.2 Gen 1 - intern stik 4 x USB 2.0 - intern stik 1 x audio - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	UEFI BIOS, ACPI 6,4 support, SMBIOS 3,4 support, Flersproget BIOS
Hardware egenskaber	Debug LED, 4K opløsningssupport, flash BIOS-knap, Windows 11 kompatibel, MSI Mystic Light, MSI Core Boost, 6 Layer PCB, 2oz Copper PCB, Digital PWM, MSI Steel Armor, Extended Heatsink Design, Water Pump Header, M.2 Shield FROZR, MSI Memory Boost, 14+2+1 Phase Power Design, overspændingsbeskyttelse, MSI Audio Boost 5
Diverse
Udstyr inkluderet	Wi-Fi-antenne, 2 x EZ M.2 klemmer, kabelmærkater
Medfølgende ledninger	1 x Seriel ATA kabel
Overensstemmelsesstandarder	DisplayPort 1.4, RED 2014/53/EU, Directive 2014/35/EU, EMC 2014/30/EU, ErP 2009/125/EC, ROHS Directive 2011/65/EU
Bredde	24.384 cm
Dybde	30.48 cm

The item is known under the following item numbers in our system

EAN:	4711377010153

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
