The BPS series from Argus stands for powerful and reliable power supplies. To upgrade existing systems or to configure new ones, thanks to 80PLUS Bronze 230V EU certification and advanced components, the BPS series will keep you up to date. To secure the built-in hardware and the power supply unit itself, the power supply units of the BPS series are supplied with a total of five protective circuits (OPP, SCP, OVP, OCP and NLP).
The BPS-500 has two PCIe 6+2pin and six S-ATA connections available. With 41A on the 12V line, there is more than enough power available for potent hardware. The overall package is rounded off by the smooth-running 120mm fan.
Produktbeskrivelse

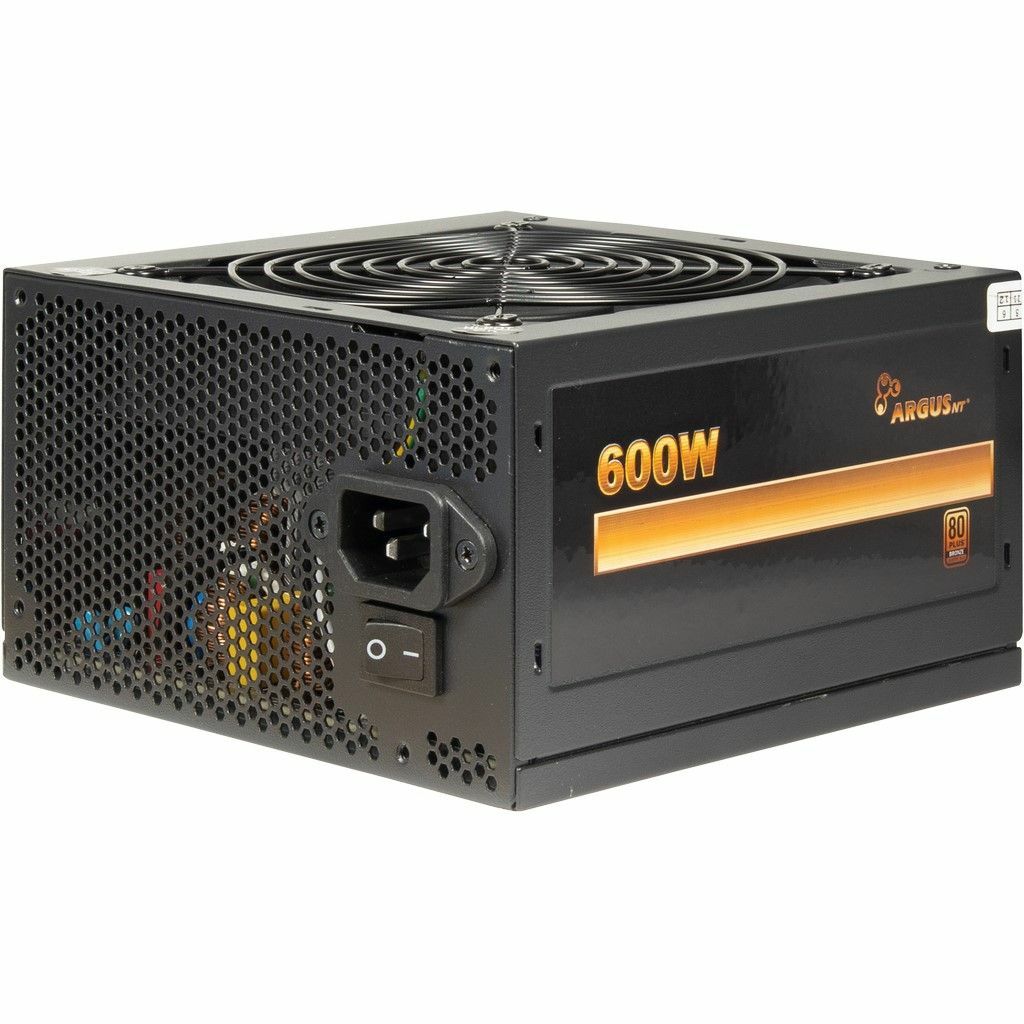

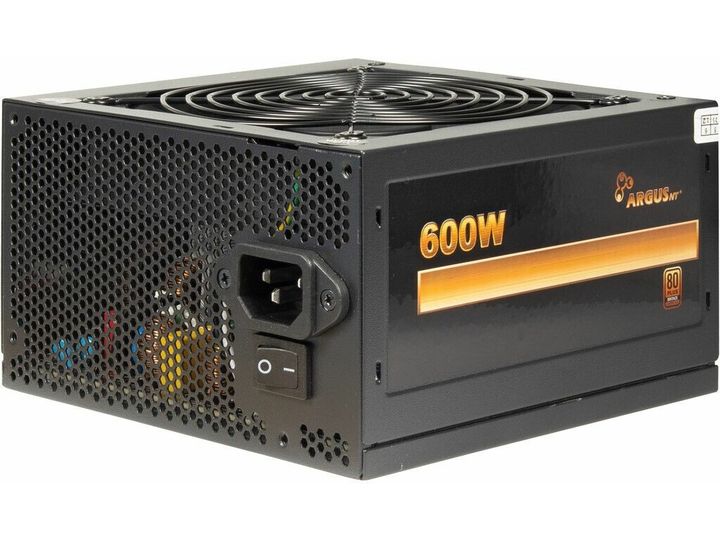

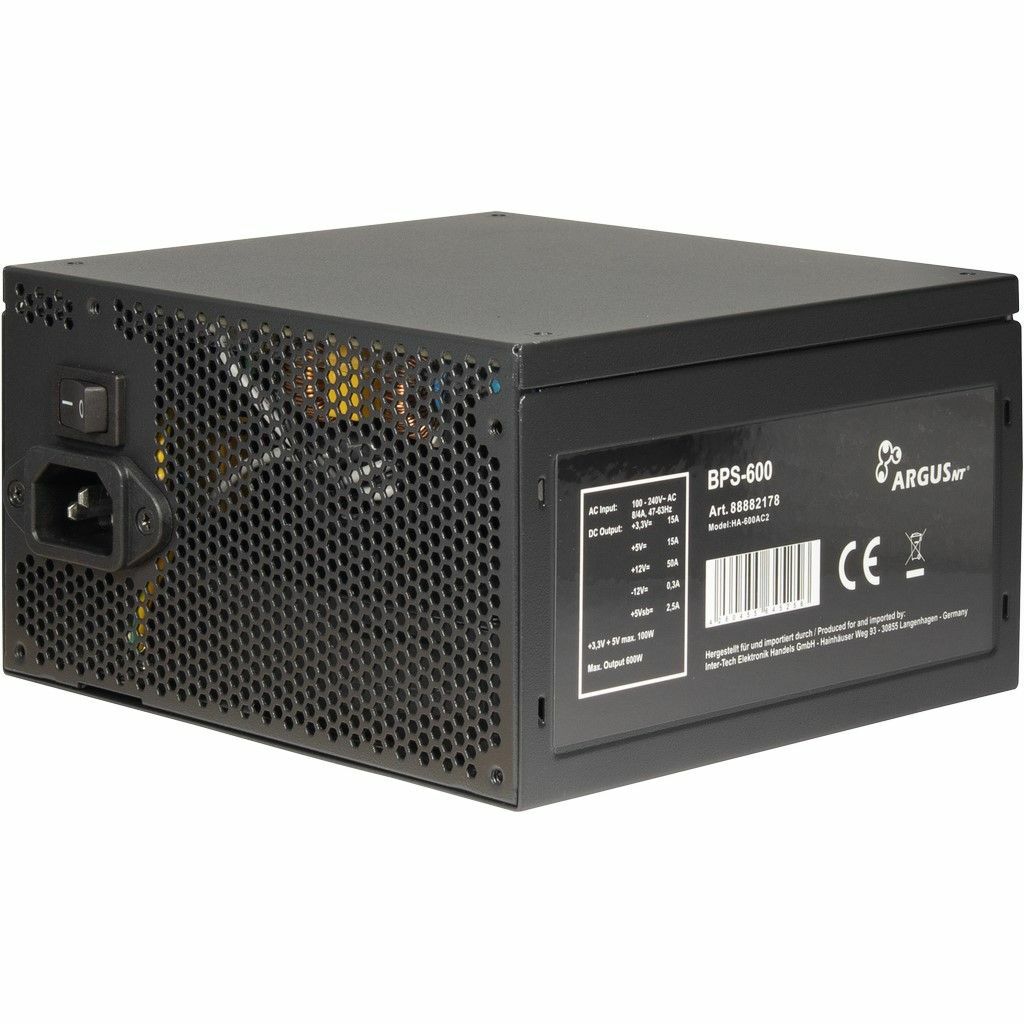

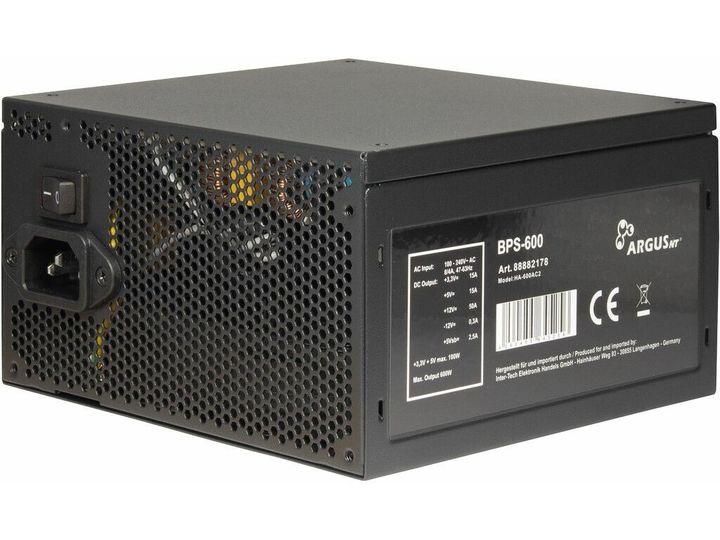

Argus BPS-600 - strømforsyning - 600 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.4
80 PLUS certificering
80 PLUS Bronze
Vægt
1.77 kg
Indgangspænding
AC 100/240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
600 Watt
Output Current
+12V - 50 A +3.3V - 15 A +5V - 15 A -12V - 0.3 A +5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin +12 V med aftagelig 4 pin sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 6 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder
Kølesystem

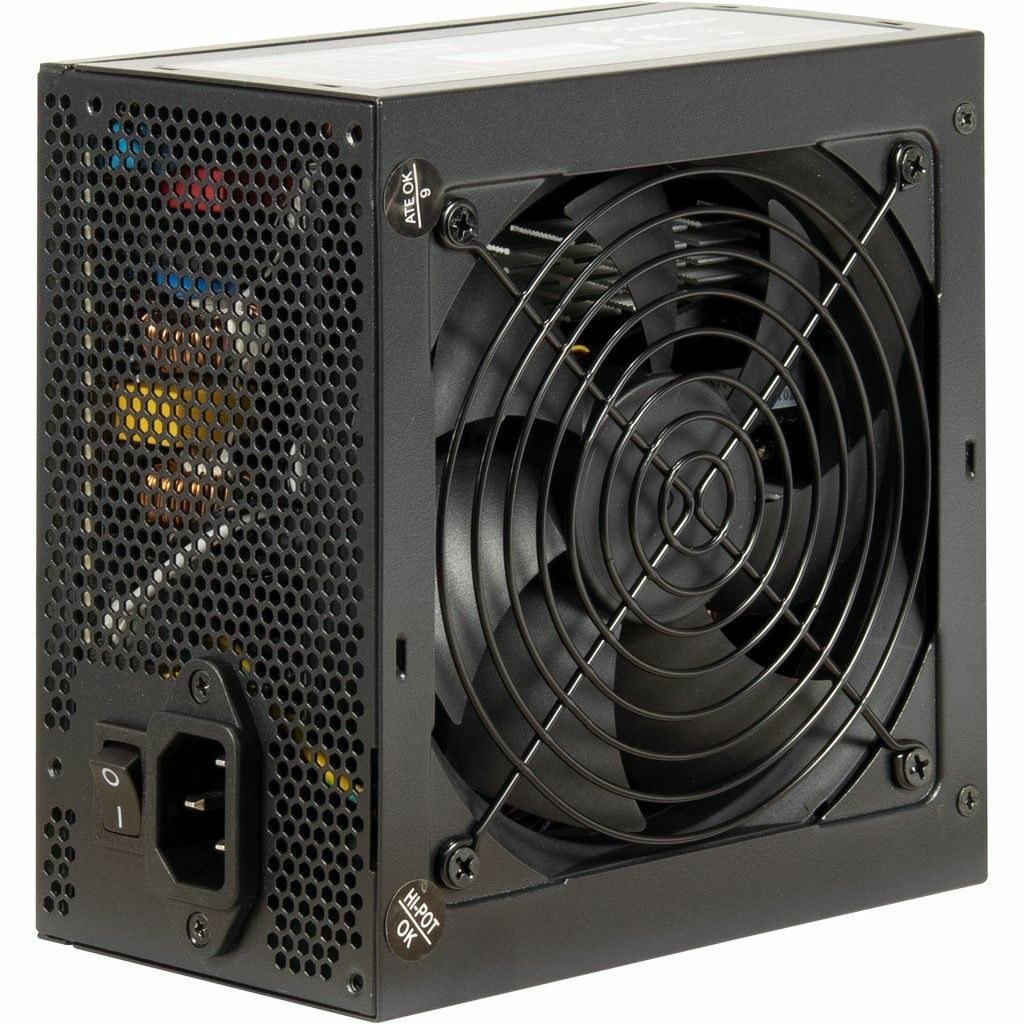

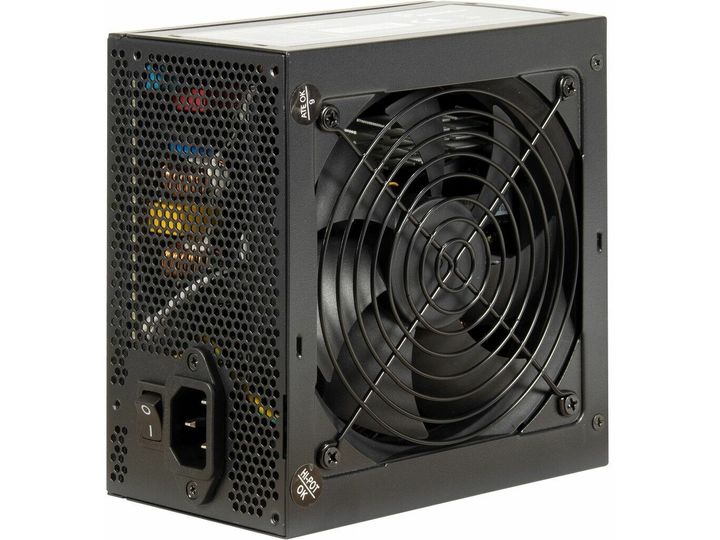

120 mm ventilator
Udstyr inkluderet
Skruer, kabelbånd
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Producentgaranti
3 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.4
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 100/240 V
Nødvendig frekvens
47 - 63 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin +12 V med aftagelig 4 pin sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 6 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
600 Watt
Output Current
+12V - 50 A +3.3V - 15 A +5V - 15 A -12V - 0.3 A +5VSB - 2.5 A
Effektivitet
82,6 % ved 20 % ladning, 86.9% at 20% Load, 88.7% at 50% Load, 85.6% at 100% Load
80 PLUS certificering
80 PLUS Bronze
Diverse
Udstyr inkluderet
Skruer, kabelbånd
Kølesystem
120 mm ventilator
Egenskaber
Beskyttelse mod overstrøm, overspændingsbeskyttelse, kortslutnings beskyttelse, termisk beskyttelse
Overensstemmelsesstandarder
FCC, RoHS, WEEE
Producentgaranti
Service & Support
Begrænset garanti - 3 år
Mål og vægt
Bredde
15 cm
Dybde
14 cm
Højde
8.6 cm
Vægt
1.77 kg
Mål & vægt (forsendelse)
Vægt ved forsendelse
2.13 kg
