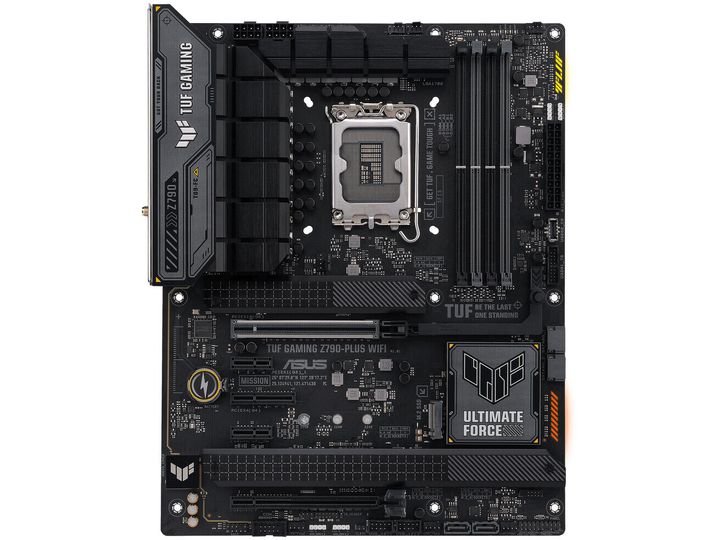

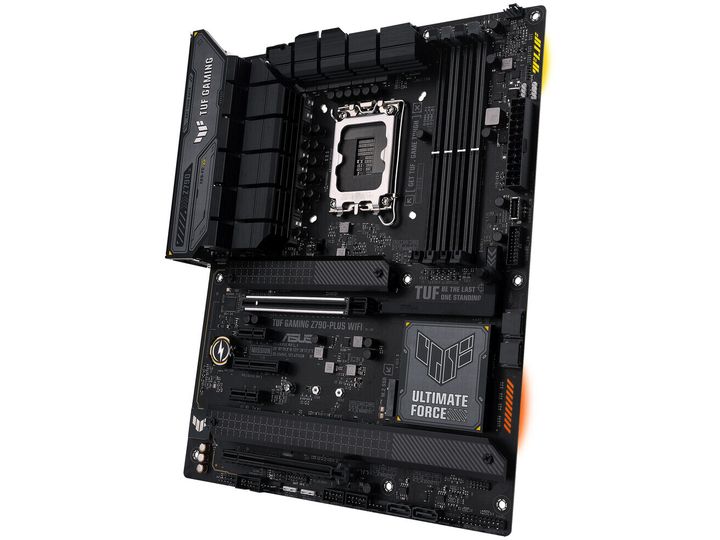

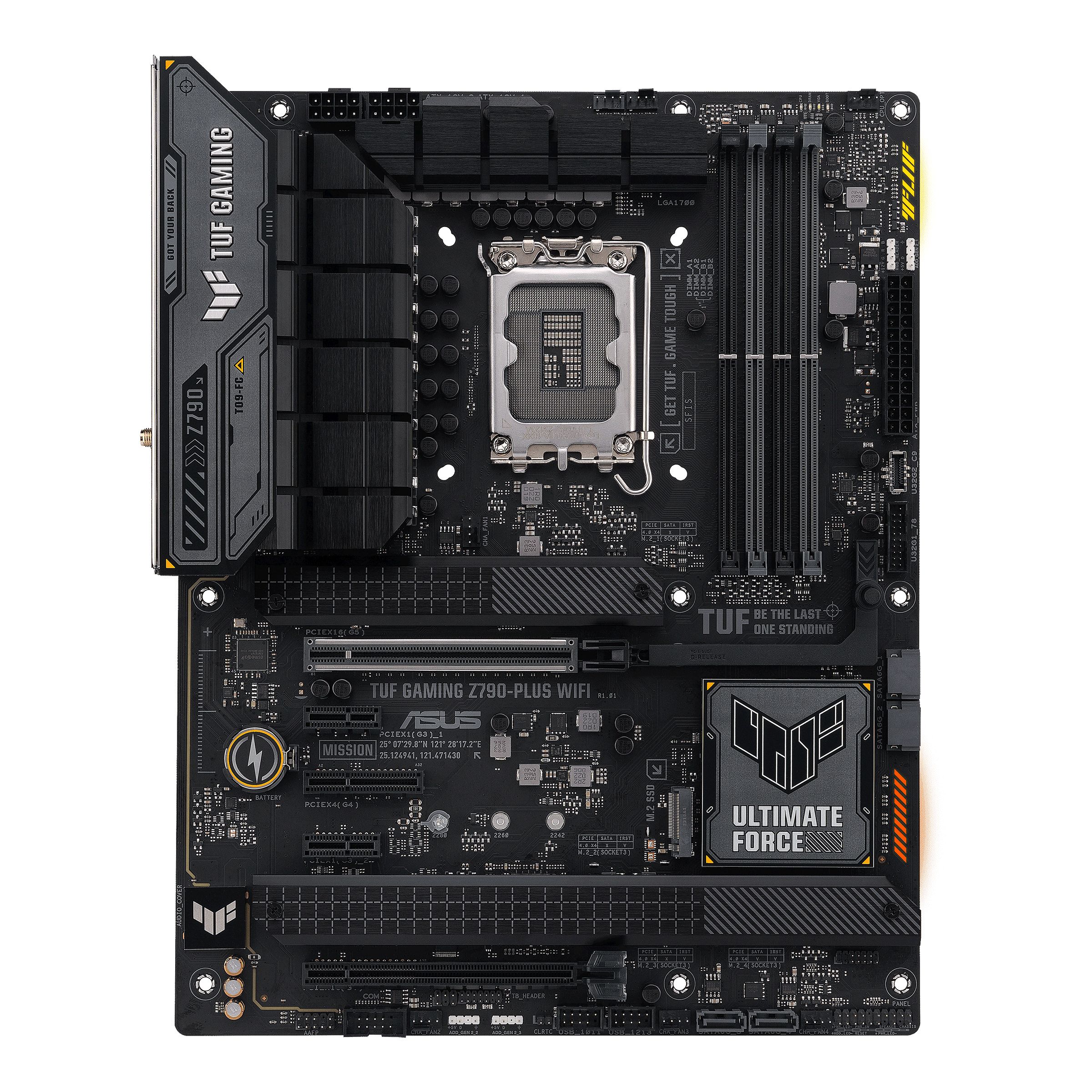

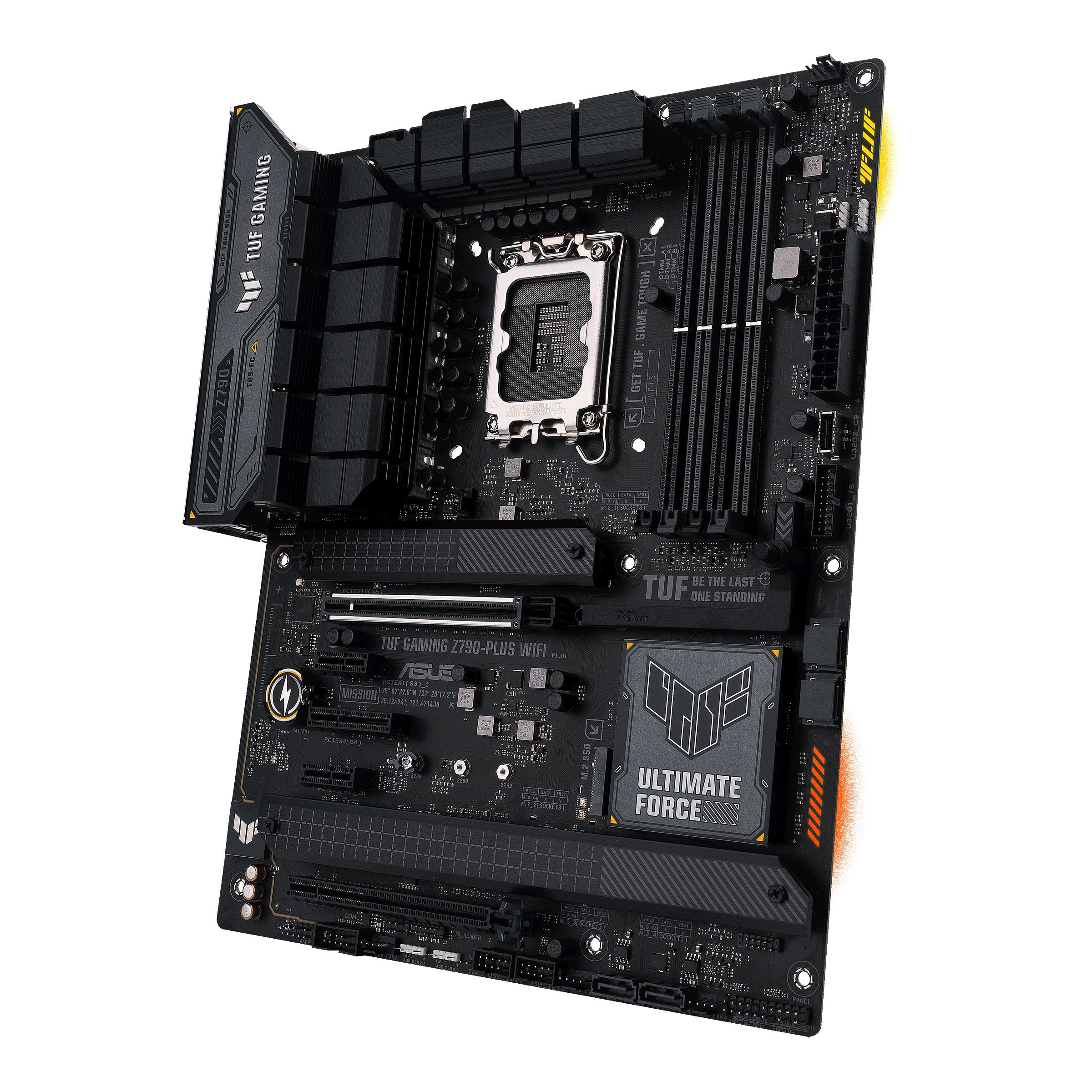

ASUS TUF GAMING Z790-PLUS WIFI LGA1700 1xHDMI 1xDP
Item no.: [9226906] | Manufacturer: ASUS | Model no.: TUF GAMING Z790-PLUS WIFI | EAN: 4711387014509
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
209,33
Incl. VAT 261,66
Total incl. delivery
276,66
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login
TUF GAMING Z790-PLUS WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 4 x M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Generelt
Produkttype
Bundkort - ATX
Chipsættype
Intel Z790
Processor-socket
LGA1700 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALCS1220A
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværks interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-modus) 1 x PCIe 4.0 x4 2 x PCIe 3.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning) 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning)
1 x DisplayPort 1 x HDMI 1 x USB-C 3.2 Gen2x2 2 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 4 x USB 3.2 Gen 1 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 1 x audio linje-ind - mini-jack 1 x SPDIF-ud 1 x LAN (2.5Gigabit Ethernet) 2 x antenne
Interne interfaces
1 x USB-C 3.2 Gen 2 - intern stik 2 x USB 3.2 Gen 1 - intern stik 4 x USB 2.0 - intern stik 1 x audio - intern stik 1 x Thunderbolt - intern stik 1 x seriel - intern stik
Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber
ASUS OptiMem II, Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, Preboot eXecution Environment (PXE), TUF LANGuard, Windows 11 kompatibel, ASUS Aura Sync, jack retasking, audio jack detektions teknologi, Water Pump Header, ASUS TUF Protection, ASUS DIGI+ VRM, ESD Guards, overspændingsbeskyttelse, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED, Q-Slot, M.2 kølelegeme, VRM kølelegemedesign, ASUS EZ DIY, CPU Socket-håndtagsbeskytter, ASUS ProCool, præmonteret I/O-skjold, ASUS SafeDIMM, ASUS TurboV EVO, CrashFree BIOS 3, 16+1 Phase Power Design, 60 A Power Stage, Dr.MOS MOSFET, 6 Layer PCB, TUF Components
Diverse
Udstyr inkluderet
ASUS Wi-Fi bevægende antenne, TUF-mærkater, 2 x M.2 gummipakke, M.2 skruepakke, TUF-certificeringskort
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, PC Cleaner, ASUS TUF GAMING CPU-Z, MyAsus, Norton 360 for Gamers, WinRAR
Overensstemmelsesstandarder
DisplayPort 1.4
Bredde
30.5 cm
Dybde
24.4 cm
