Connect to LoRa Network with Excellent LoRaWAN Gateway

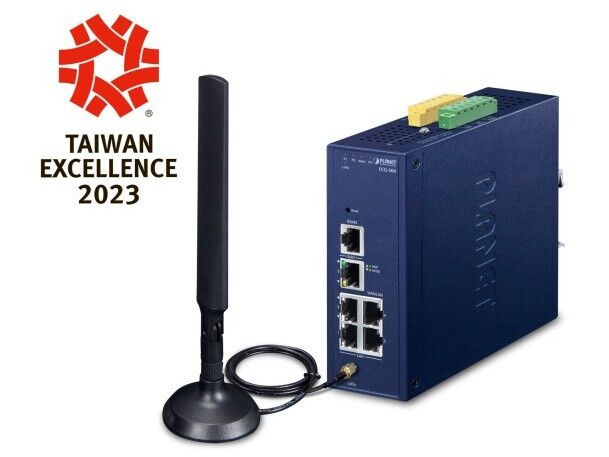

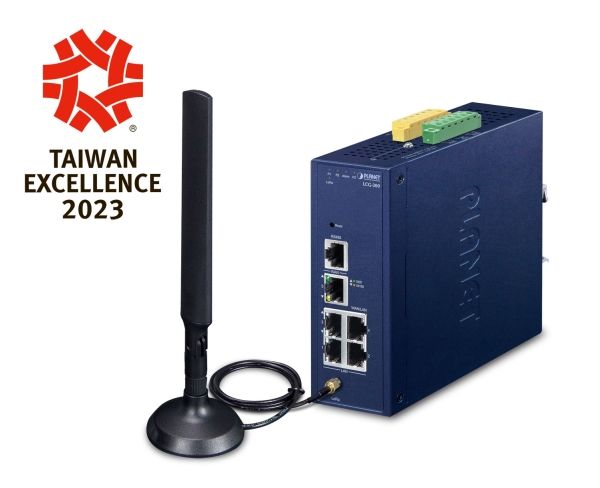

PLANET LCG-300 is an industrial-grade LoRaWAN gateway with reliable connectivity for IoT deployments. With LoRaWAN protocol support, it helps to bridge LoRa wireless network to an IP network. The LoRa wireless allows sensors to transmit data over extremely long ranges with low power consumption. The LCG-300 is fully compatible with LoRaWAN protocol and supports connection with up to 300 end-nodes. It also provides pre-configured standard LoRaWAN frequency bands for different countries. PLANET LCG-300 is a best choice to help you to promote the implementation of AIoT network.
Comprehensive features for Industrial environemnt
The LCG-300 also features five Ethernet ports (4 LANs and 1 WAN), serial port (RS-485), and DI and DO interfaces designed in a compact yet rugged metal case. The LCG-300 also features several main categories across your industrial network deployments:
- SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec) - Cybersecurity and SPI firewall security protection - Easy management with setup wizard, DHCP server and dashboard
LoRaWAN Compatibilityle
LoRaWAN is a low-power, wide area networking protocol built on top of the LoRa radio modulation technique. LoRaWAN networks and devices such as sensor and gateway allow public or private network to connect multiple applications such as IoT, M2M, smart city, sensor network, and industrial automation applications in the same space. The LCG-300 is LoRaWAN compatible and make sure it works well with LoRa sensor without any propblem.
Excellent Ability in Threat Defense
The LCG-300 has built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions to provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.
Cybersecurity Network Solution to Minimize Security Risks
The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the LCG-300 is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the LCG-300 offers an easy-to-use, platform independent management and configuration facility. The LCG-300 supports SNMP and it can be managed via any management software based on the standard SNMP protocol.
Product colour
Blue
Enclosure material
Metal
Mounting type
DIN-rail/Wall mounting
LED indicators
Yes
Enclosure International Protection (IP) code
IP30
Antenna type
External
Antenna connector type
SMA
Control display unit
No
DHCP server
Yes
Width
50 mm
Depth
135 mm
Height
135 mm
Weight
900 g
Operating temperature (T-T)
40 - 75 °C
Storage temperature (T-T)
40 - 85 °C
Operating relative humidity (H-H)
5 - 90%
Storage relative humidity (H-H)
5 - 90%
Certification
CE, FCC
