Visaton VS-PX13
Item no.: [9431059] | Manufacturer: Visaton | Model no.: 4603 | EAN: 4007540046037
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
30,36
Incl. VAT 37,95
Total incl. delivery
52,95
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail

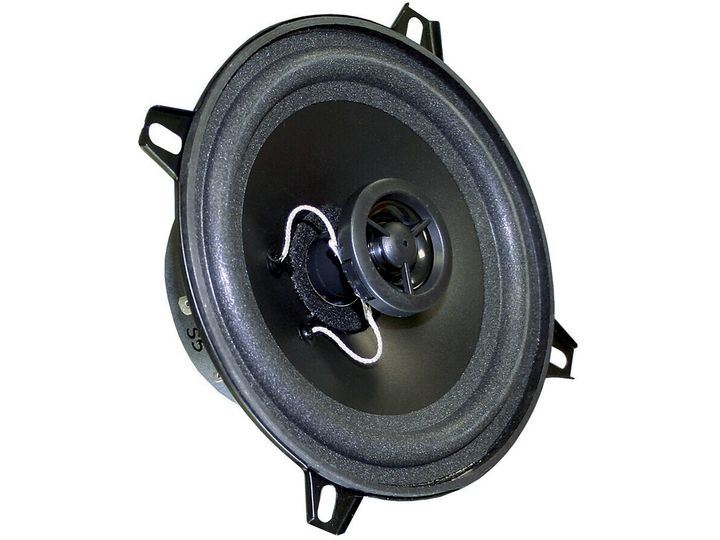

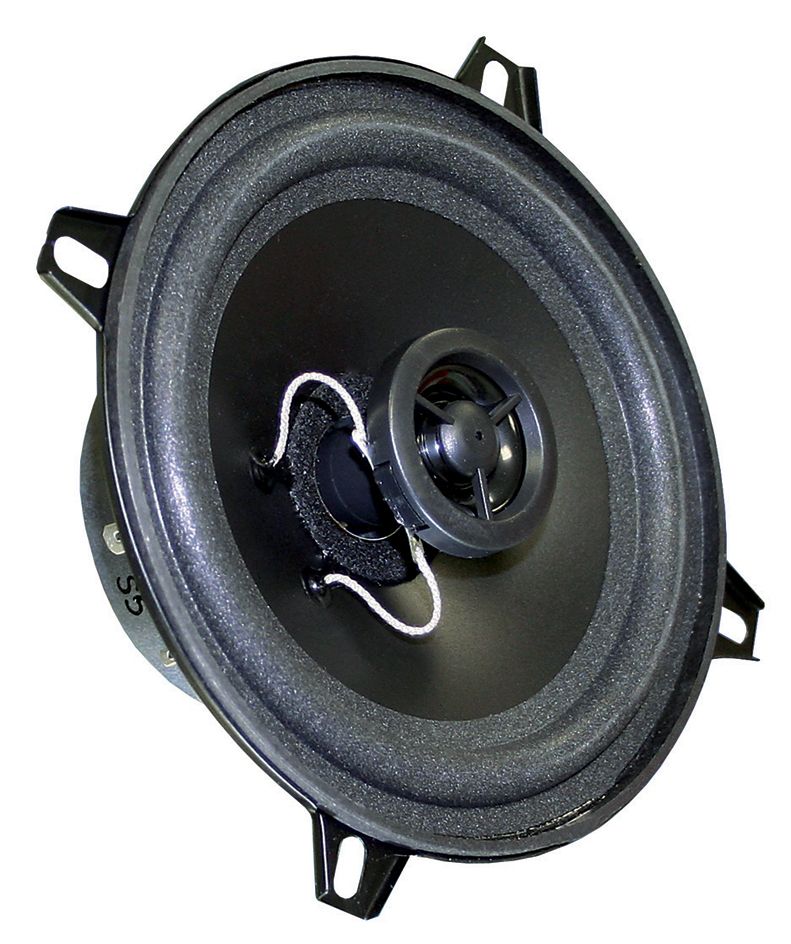

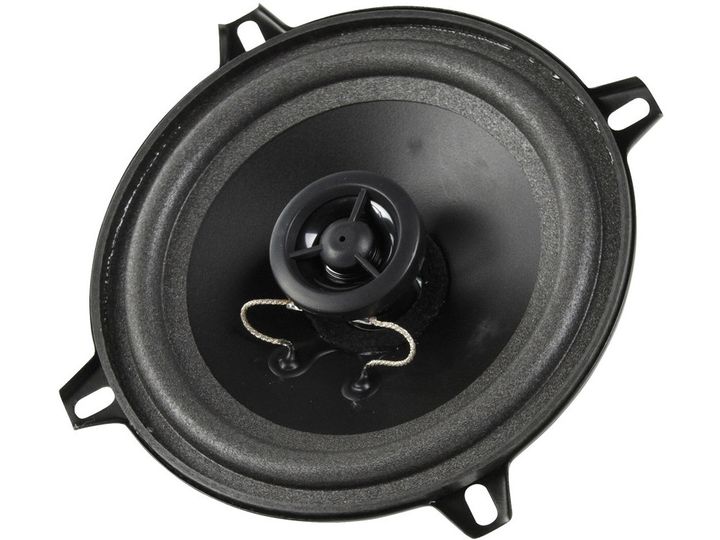

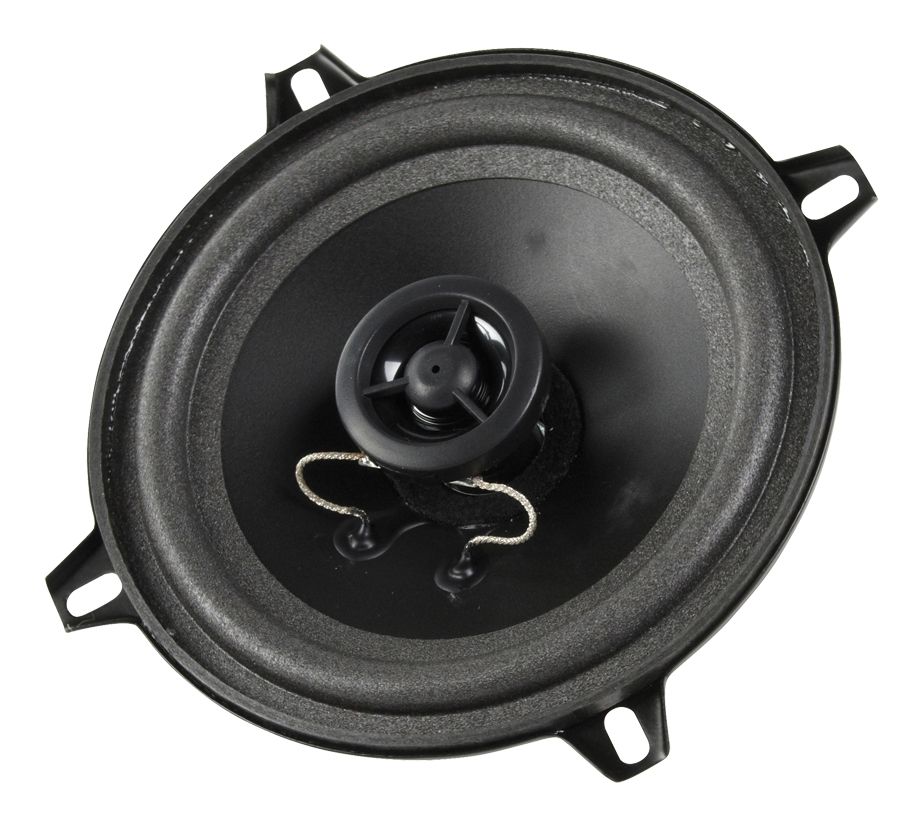

13 cm (5") 2-way coaxial loudspeaker with standard basket and piezoelectric tweeter. Straightforward installation in vehicles with cutouts for 13 cm speakers.
Typical applications:
- Vehicles
- Mobile homes • Rated power:20 W
• Maximum power:30 W
• Nominal impedance Z:4 Ohm
• Frequency response:60–15000 Hz
• Mean sound pressure level:84 dB (1 W/1 m)
• Opening angle (-6 dB):75°/4000 Hz
• Excursion limit:+/-2 mm
• Resonance frequency fs:95 Hz
• Magnetic induction:1.0 T
• Magnetic flux:190 µWb
• Height of front pole-plate:3 mm
• Voice coil diameter:20 mm
• Height of winding:5.5 mm

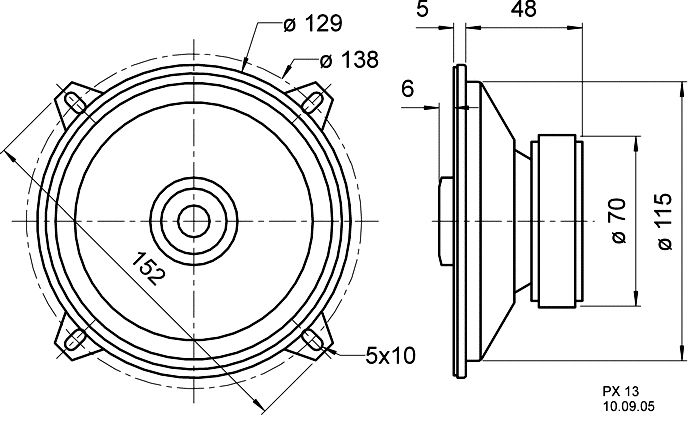

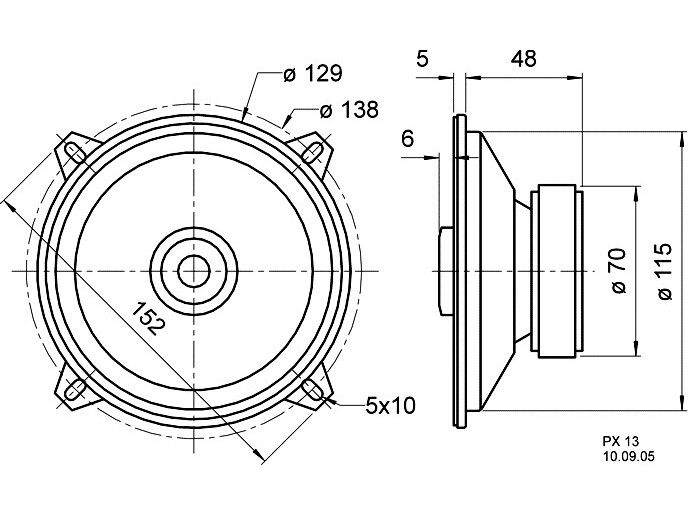

• Cutout diameter:116 mm
• Net weight:0.48 kg
• Temperature range:-25 ... 70 °C
Typical applications:
- Vehicles
- Mobile homes • Rated power:20 W
• Maximum power:30 W
• Nominal impedance Z:4 Ohm
• Frequency response:60–15000 Hz
• Mean sound pressure level:84 dB (1 W/1 m)
• Opening angle (-6 dB):75°/4000 Hz
• Excursion limit:+/-2 mm
• Resonance frequency fs:95 Hz
• Magnetic induction:1.0 T
• Magnetic flux:190 µWb
• Height of front pole-plate:3 mm
• Voice coil diameter:20 mm
• Height of winding:5.5 mm
• Cutout diameter:116 mm
• Net weight:0.48 kg
• Temperature range:-25 ... 70 °C
