FRITZ!Repeater 3000 AX international

FRITZ!Repeater 3000 AX Edition International

A Strong Signal in Every Room with Wi-Fi 6

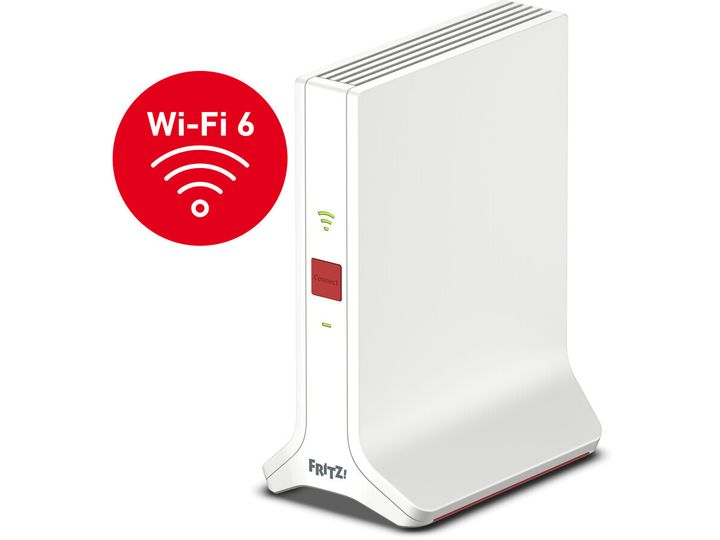

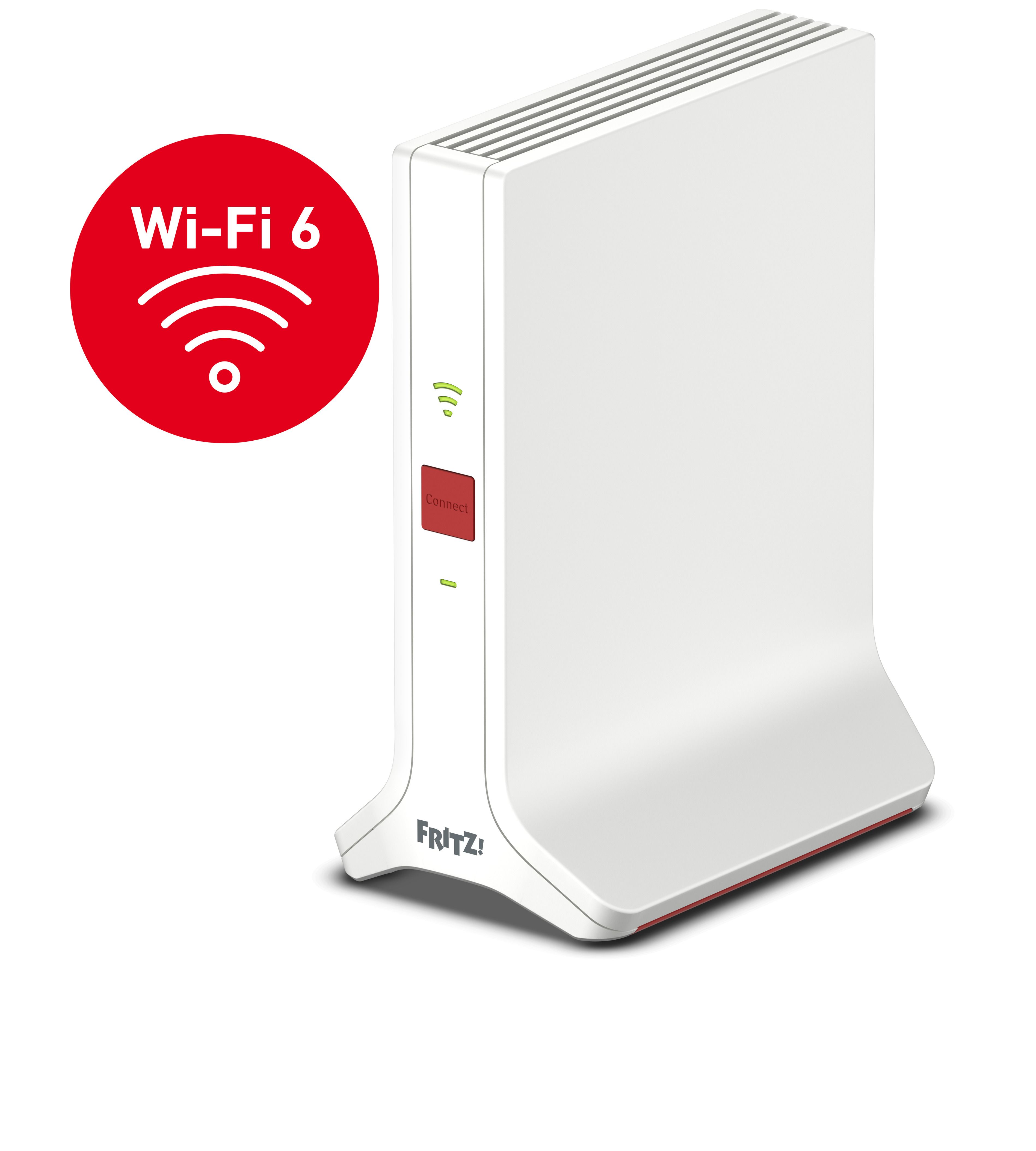

The FRITZ!Repeater 3000 AX is equipped with Wi-Fi 6 to bring powerful Wi-Fi to the home network. Three radio units with a total of eight antennas provide a combined data rate of up to 4200 Mbit/s, ensuring extensive coverage and high data throughput throughout the Wi-Fi network.

This tri-band repeater therefore provides stable coverage right into the furthest corners, even in large homes or multi-room offices.

With two Gigabit LAN ports, the repeater also ensures fast wired data distribution throughout the home network. Its modern design with clean lines complements the existing FRITZ! Wi-Fi 6 product range.

Ultra-Fast Wi-Fi AX + AC + N

The powerful FRITZ!Repeater 3000 AX operates on three Wi-Fi bands: one 2.4 GHz band and two 5 GHz bands. These three frequency bands are used intelligently in parallel.

Through automatic band selection using Crossband Repeating, the repeater selects the most efficient connection path to connected wireless devices.

Multiple simultaneous applications such as streaming, gaming and video conferences therefore run smoothly with the FRITZ!Repeater 3000 AX.

Perfect for Mesh Wi-Fi

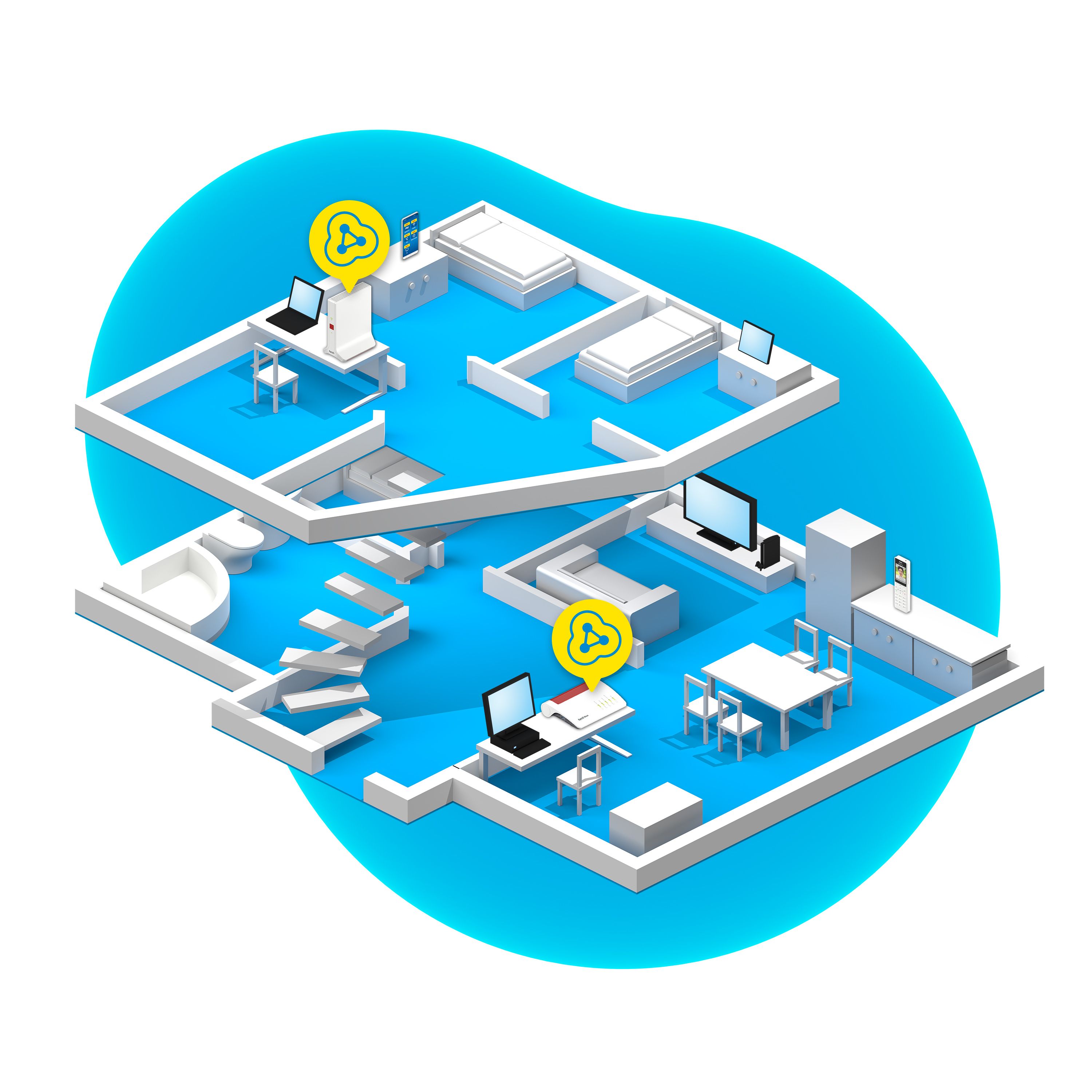

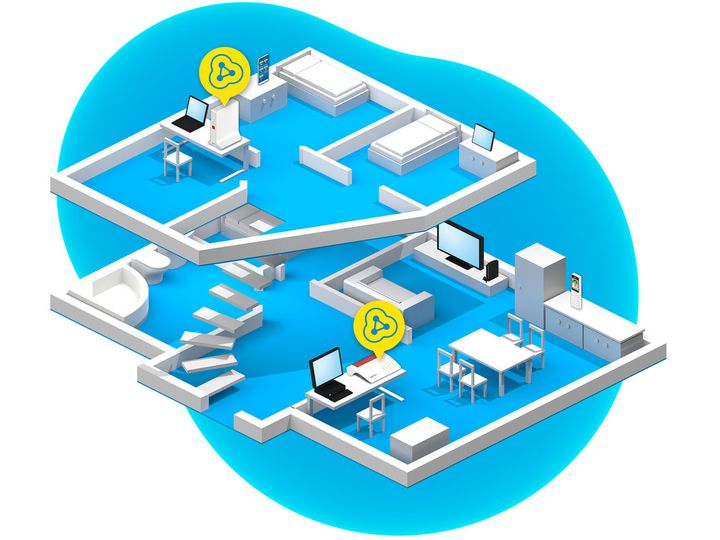

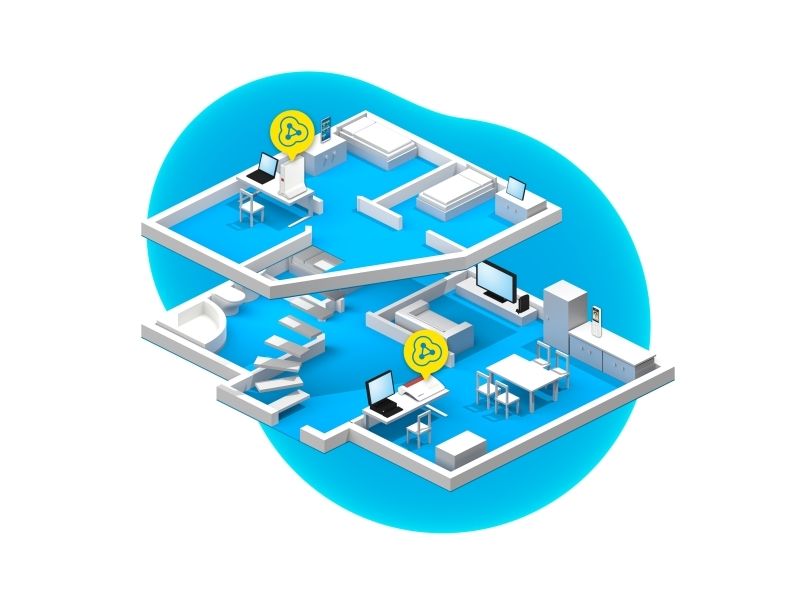

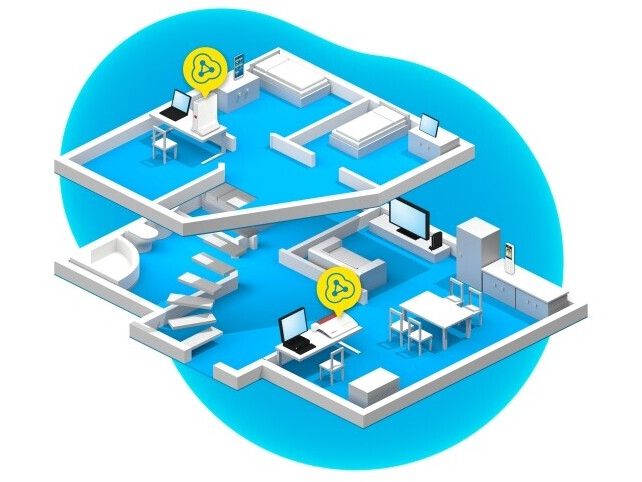

The FRITZ!Repeater 3000 AX supports Mesh Wi-Fi when used with a FRITZ!Box. Mesh Wi-Fi combines the individual Wi-Fi networks of FRITZ! devices into a single shared Wi-Fi network, providing fast and reliable connections in every room.

The entire Wi-Fi network is securely encrypted and uses one shared network name and password. Additional wireless access points can easily be added at the push of a button.

Maximum Security and Convenience

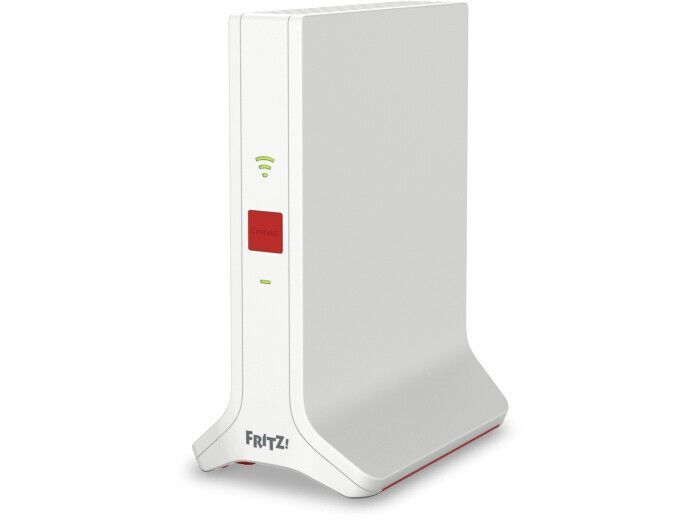

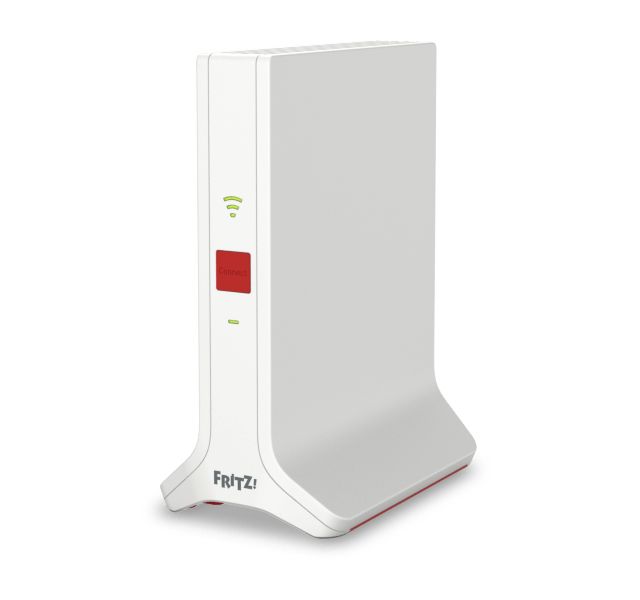

The latest encryption standards protect privacy throughout the entire Mesh Wi-Fi network. LEDs on the housing indicate Wi-Fi signal strength and help users find the optimal position for the FRITZ!Repeater 3000 AX. After installation, the LEDs can be dimmed or switched off completely.

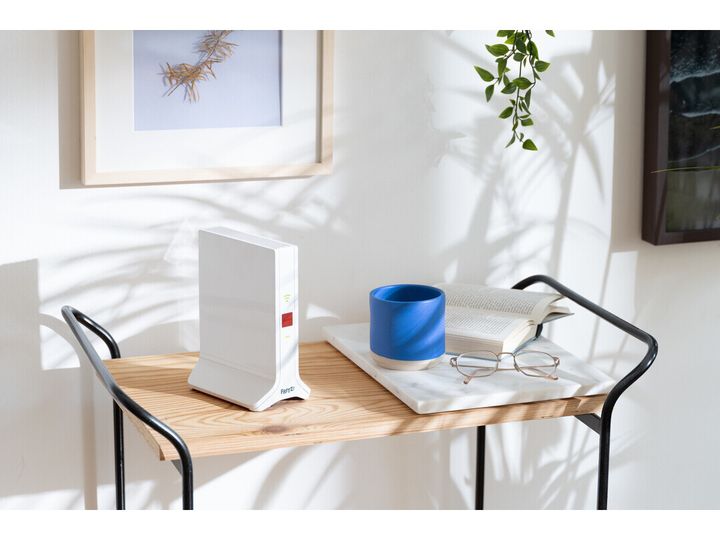

The FRITZ!App WLAN also helps find the ideal location. With the included power adapter, the repeater can be positioned flexibly throughout the home.

FRITZ!Repeater 3000 AX at a Glance

• Increases Wi-Fi range with Wi-Fi 6 for all connected devices.


• Three radio units with a total of eight antennas: 2 × 5 GHz (4 × 4 / 2 × 2) and 1 × 2.4 GHz (2 × 2).


• Wi-Fi data rates of up to 4200 Mbit/s: 2400 and 1200 Mbit/s on 5 GHz and 600 Mbit/s on 2.4 GHz.


• Supports 80 MHz channel bandwidth as well as 160 MHz on the 5 GHz band.


• Connects to the router via a dedicated 5 GHz Wi-Fi band.


• Suitable for demanding applications such as multiple simultaneous 4K streams in home networks with ultra-fast internet connections and many Wi-Fi devices in use at the same time.


• Mesh Wi-Fi combines multiple wireless access points into a single intelligent Wi-Fi network with optimal performance.


• Intelligent automatic band selection during operation with Dynamic Crossband Repeating.

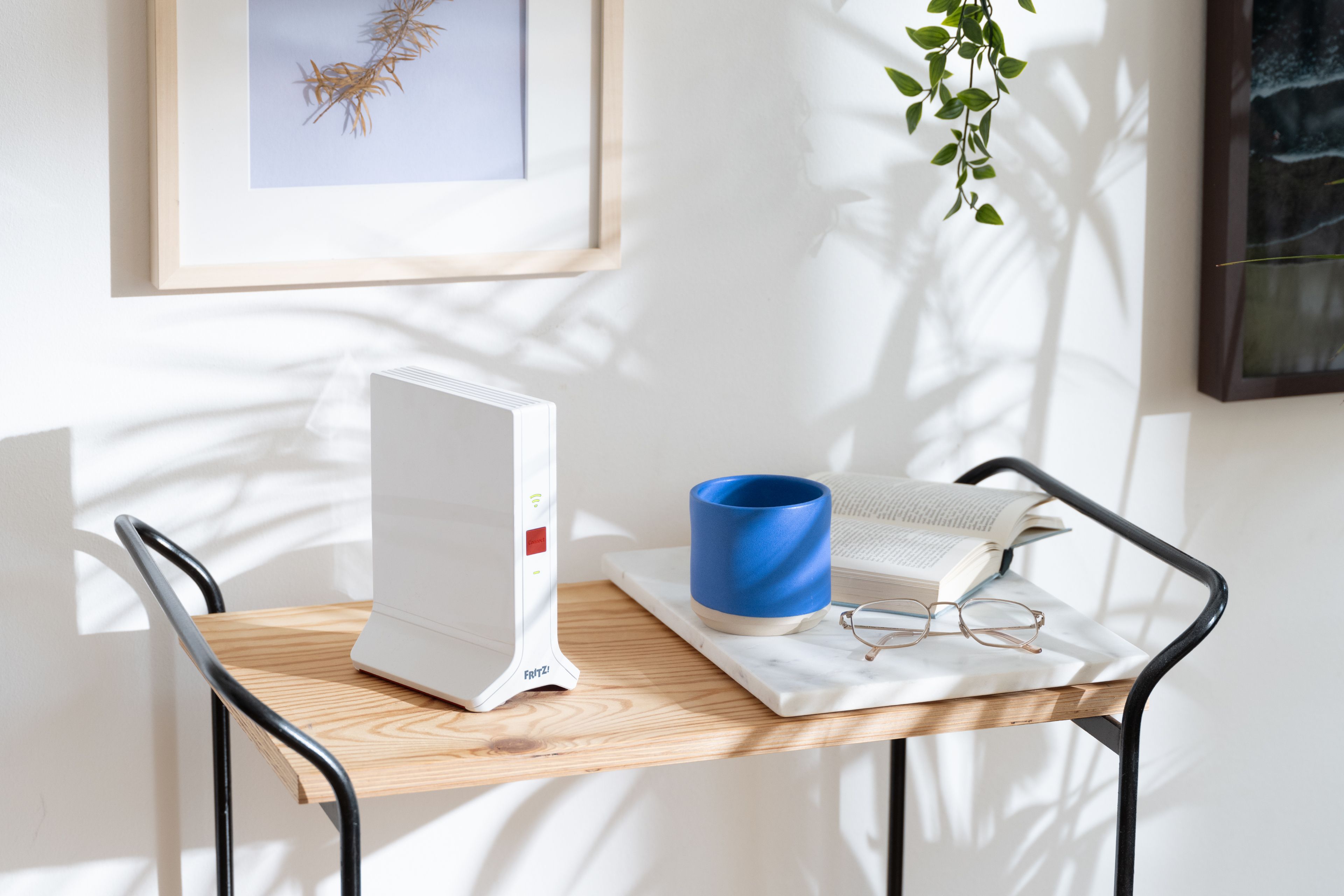

• Upright housing design allows flexible placement throughout the home.


• Automatically adopts existing Wi-Fi encryption and all important settings from the FRITZ!Box.

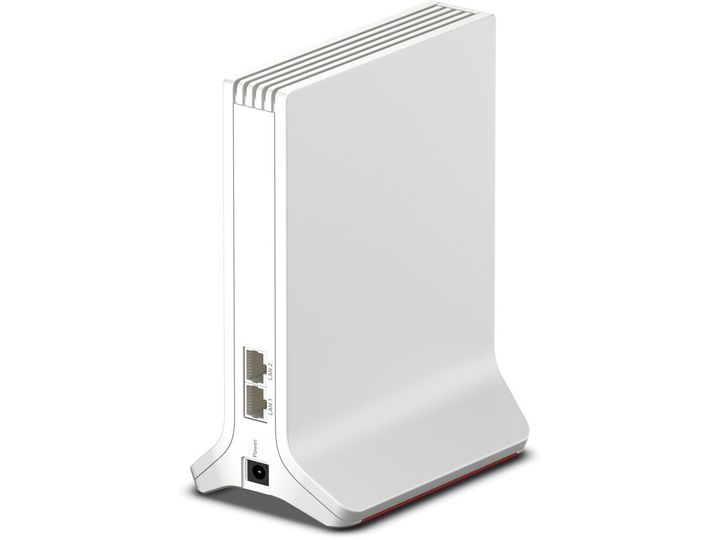

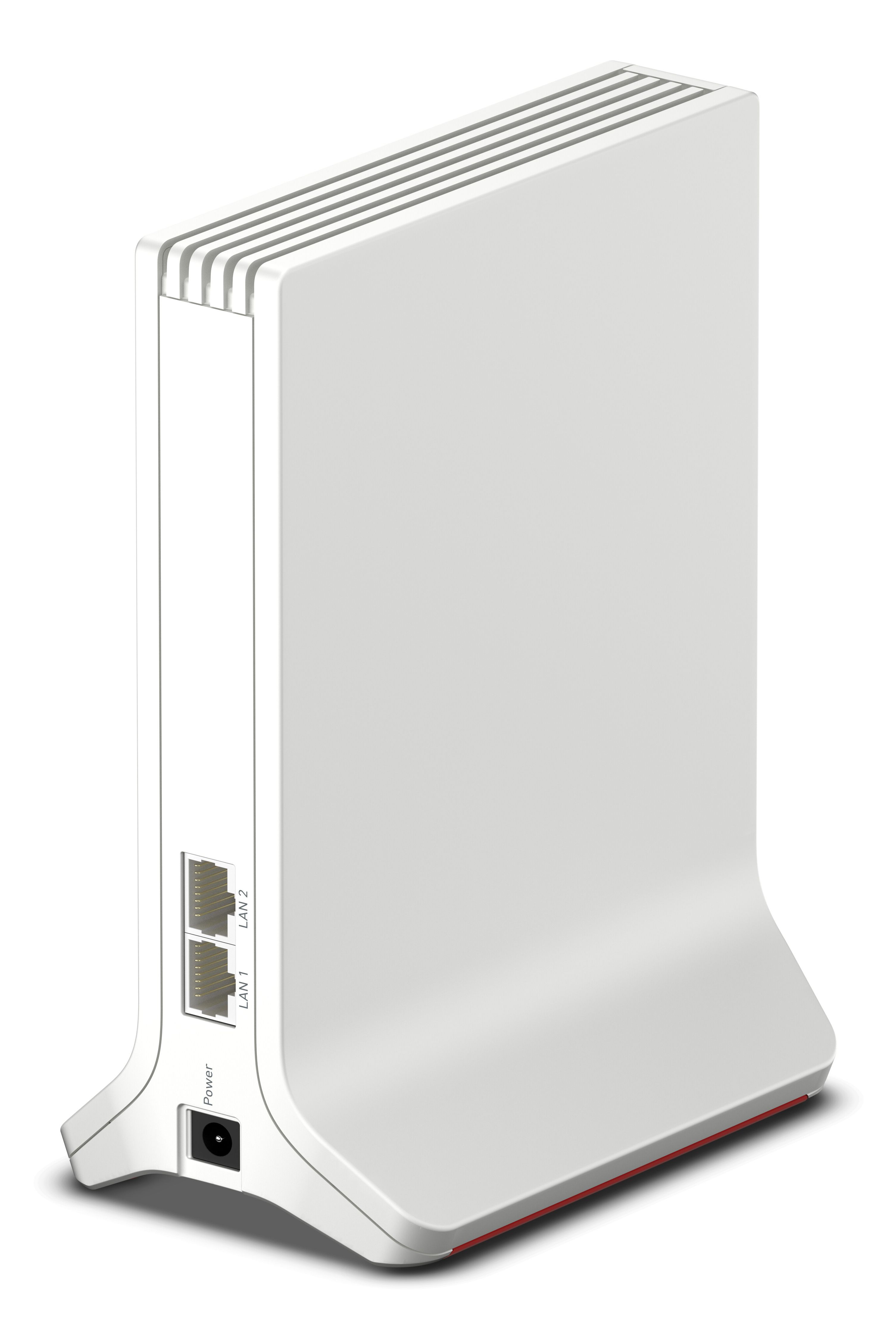

• 2 × Gigabit LAN ports for connecting additional devices by cable or setting up a LAN bridge.


• Simple and secure registration of new wireless devices using WPS.


• Supports FRITZ!Box Wi-Fi guest access.


• LEDs can be dimmed or switched off completely.


• The FRITZ!App WLAN helps determine the optimal location.


• Energy-saving features through Wi-Fi night settings and ECO Mode.

Package Contents

• FRITZ!Repeater 3000 AX.


• Power adapter.


• LAN cable.


• Quick guide.
