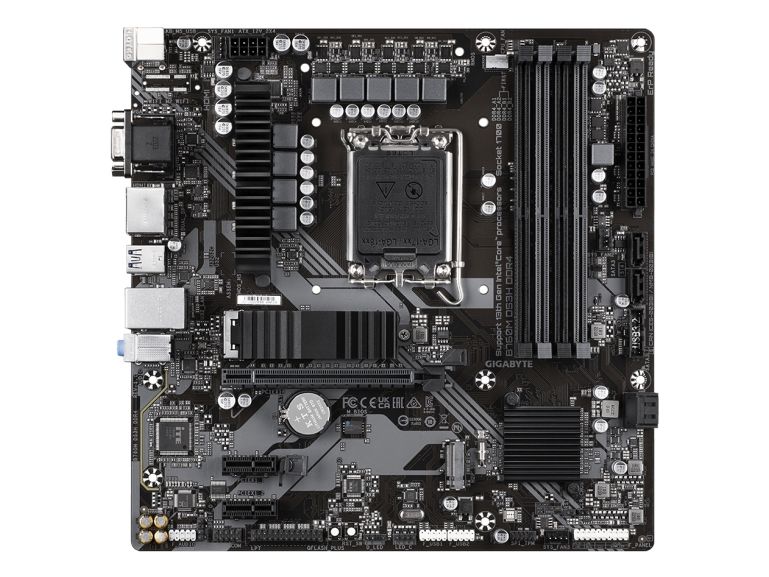

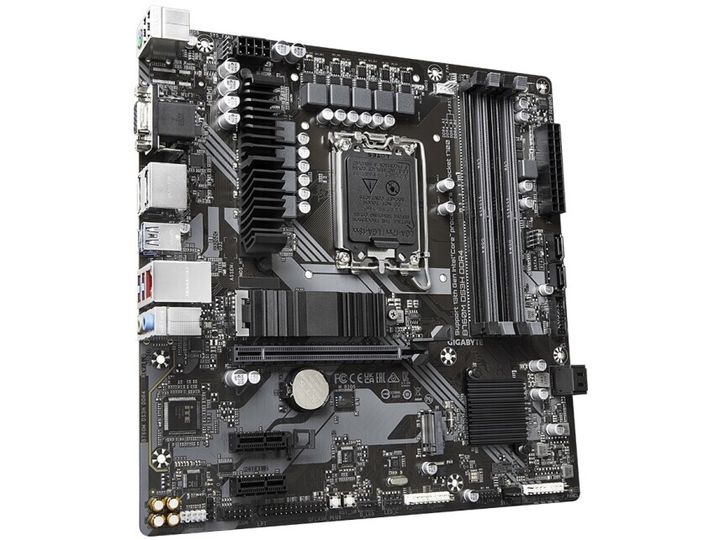

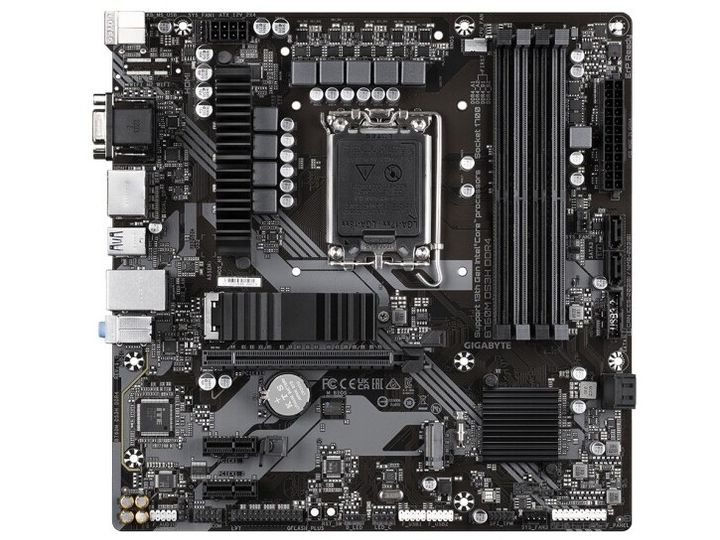

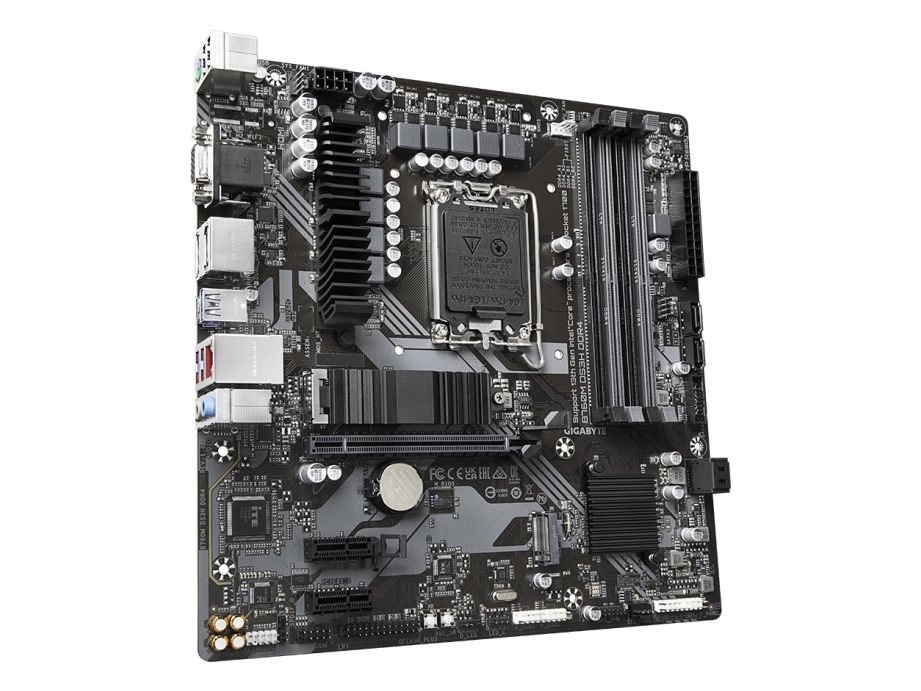

MB Gigabyte B760M DS3H DDR4 (B760,S1700,mATX,Intel)

Item no.: [9572991] | Manufacturer: Gigabyte Technology | Model no.: B760M DS3H DDR4 | EAN: 4719331850876

Remote stock (2-3 days)

The item is in a remote warehouse, delivery time is 2-3 business days. More info

Shipping @price - GLS

12,00

EUR 92,03

Incl. VAT 115,04

Total incl. delivery 130,04

Read further specifications and description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Produktbeskrivelse	Gigabyte B760M DS3H DDR4 - 1.0 - bundkort - micro ATX - LGA1700 sokkel - B760
Produkttype	Bundkort - micro ATX
Chipsættype	Intel B760
Processor-socket	1 x LGA1700 sokkel
Kompatible processorer	(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse	128 GB
RAM understøttet	4 DIMM åbninger - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte	4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte	1 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	2.5 Gigabit Ethernet

Generelt
Produkttype	Bundkort - micro ATX
Chipsættype	Intel B760
Processor-socket	LGA1700 sokkel
Max antal processorer	1
Kompatible processorer	(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Understøttet RAM
Maks. størrelse	128 GB
Teknologi	DDR4
Bus Clock	2400 MT/s, 2133 MT/s, 2666 MT/s, 2933 MT/s, 3000 MT/s, 3200 MT/s, 3300 MT/s (O.C.), 3333 MT/s (O.C.), 3400 MT/s (O.C.), 3466 MT/s (O.C.), 3600 MT/s (O.C.), 3666 MT/s (O.C.), 3733 MT/s (O.C.), 3800 MT/s (O.C.), 3866 MT/s (O.C.), 4000 MT/s (O.C.), 4133 MT/s (O.C.), 4266 MT/s (O.C.), 4300 MT/s (O.C.), 4400 MT/s (O.C.), 4500 MT/s (O.C.), 4600 MT/s (O.C.), 4700 MT/s (O.C.), 4800 MT/s (O.C.), 4933 MT/s (O.C.), 5000 MT/s (O.C.), 5133 MT/s (O.C.), 5333 MT/s (O.C.)
Understøttet RAM-integritetskon	Ikke-ECC, ECC (drift i ikke-ECC tilstand)
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), understøttede ECC-moduler fungerer i ikke-ECC-tilstand
Audio
Type	HD Audio (8-kanaler)
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværks interfaces	2.5 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 2 x M.2
Interface	2 x DisplayPort 1 x HDMI 1 x VGA 2 x USB 2.0 3 x USB 3.2 Gen 1 1 x USB-C 3.2 Gen 2 1 x audio linje-ind - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ud - mini-jack 1 x LAN (2.5Gigabit Ethernet) 1 x PS/2-tastatur/mus
Interne interfaces	4 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x audio - intern stik 1 x parallel - intern stik 1 x seriel - intern stik 1 x SPI - intern stik 1 x SPDIF ud - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	PnP 1.0a support, DMI 2.7 support, WfM 2.0 understøttet, SMBIOS 2.7 support, ACPI 5.0 support
Hardwareovervågning	Blæserfejlvarsel, blæserkontrol, vandkølings-flowrate
Hardware egenskaber	6+2+1 Phase Power Design, M.2 Thermal Guard, GIGABYTE Smart Fan 6, Q-Flash Plus, Solid Pin Power Connectors, RGB FUSION, MultiKey, DIY Friendly Design
Diverse
Medfølgende ledninger	2 x Seriel ATA kabel
Med software	Norton Internet Security
Overensstemmelsesstandarder	DisplayPort 1.2, HDCP 2.3, FCC Part 15 Subpart B, WEEE, UKCA
Bredde	24.4 cm
Dybde	24.4 cm

The item is known under the following item numbers in our system

EAN:	4719331850876
SKU:	GGB760M_DS3H_DDR4
SKU:	B760M DS3H DDR4

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
