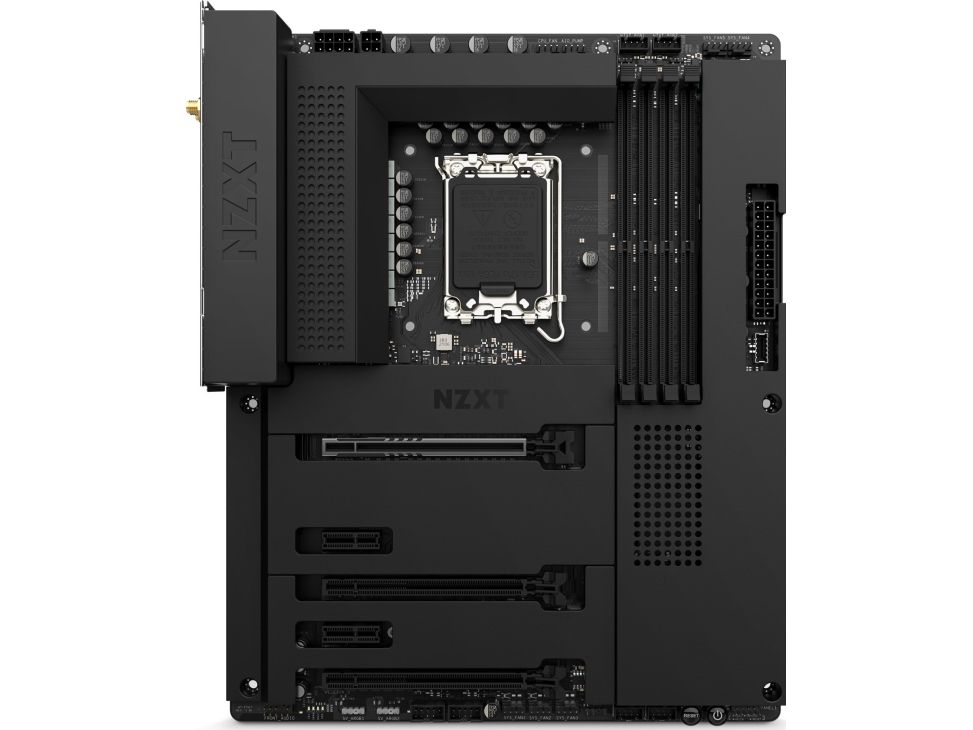

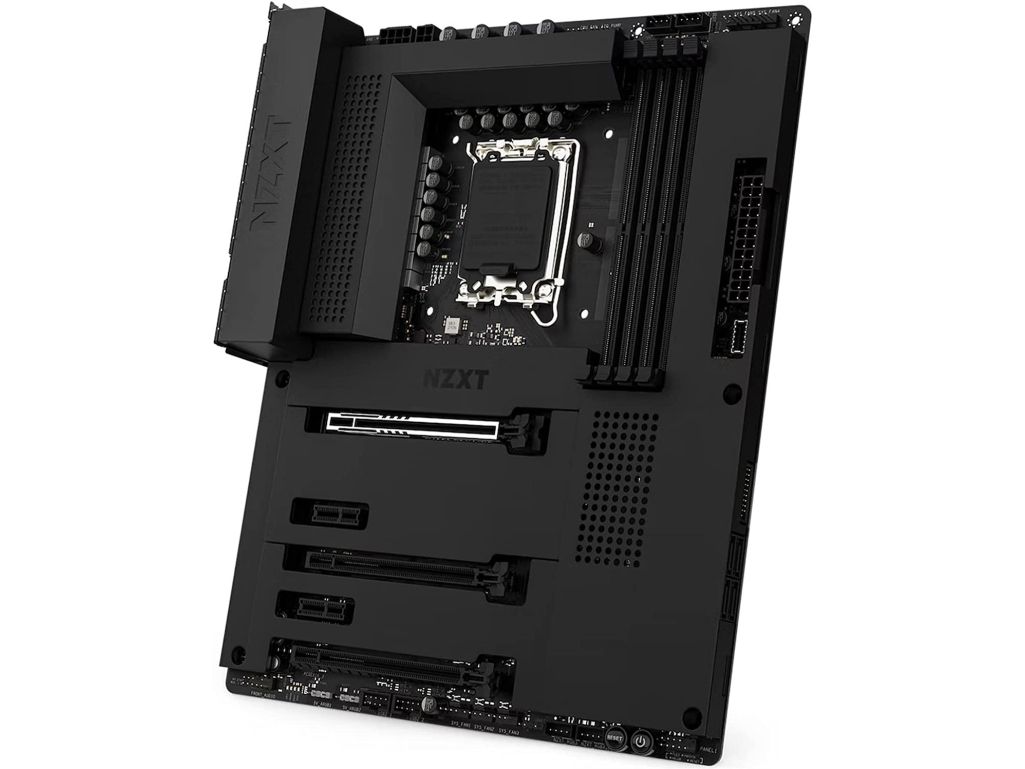

NZXT N7 Z790 DDR5 Black

Item no.: [9589644] | Manufacturer: NZXT | Model no.: N7-Z79XT-B1 | EAN: 5056547202952

Remote stock (5-7 days)

The item is in a remote warehouse, delivery time is 5-7 business days. More info

Shipping @price - GLS

12,00

EUR 225,87

Incl. VAT 282,34

Total incl. delivery 297,34

Read further specifications and description

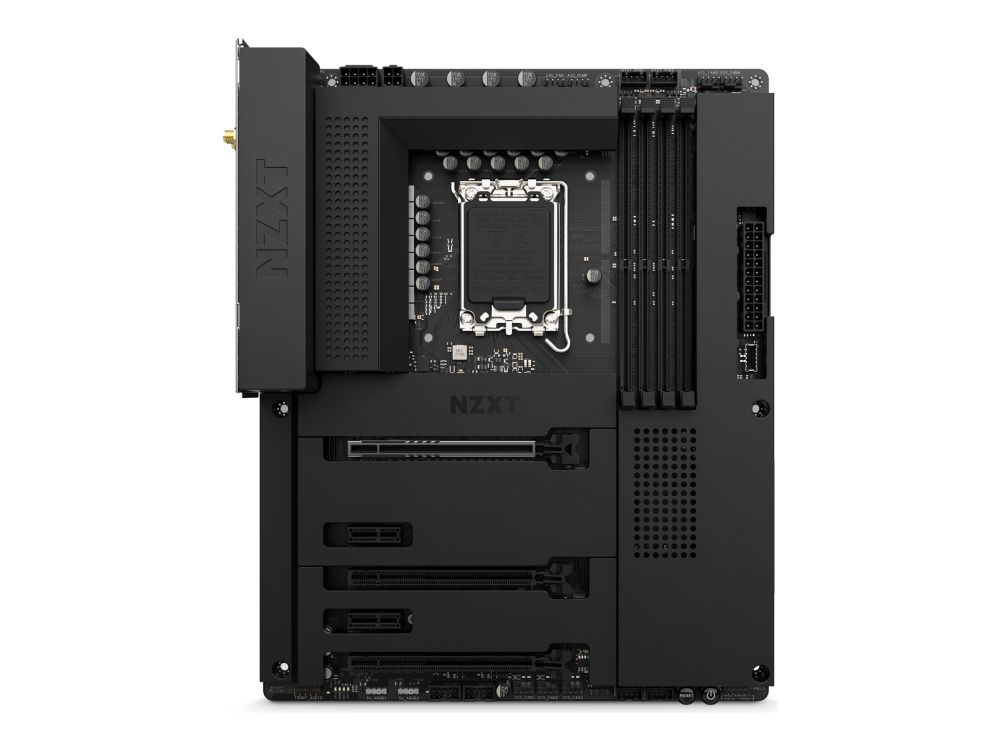

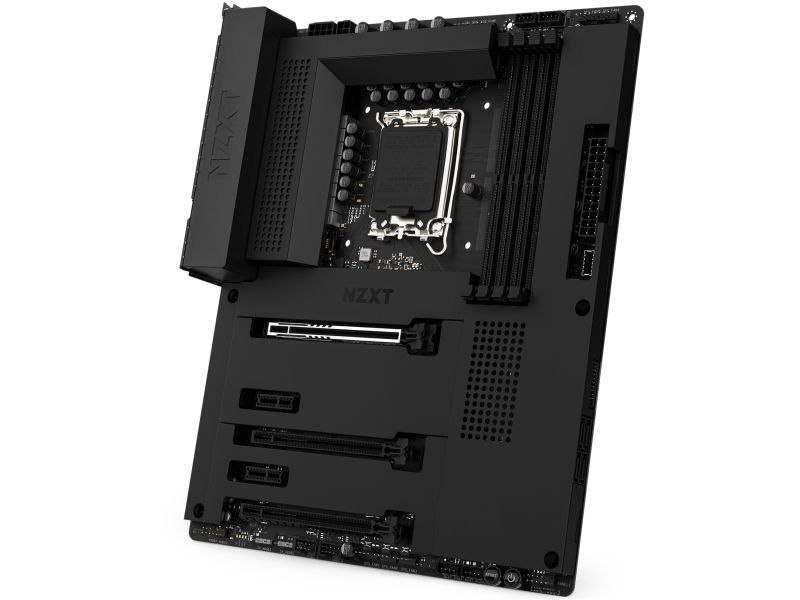

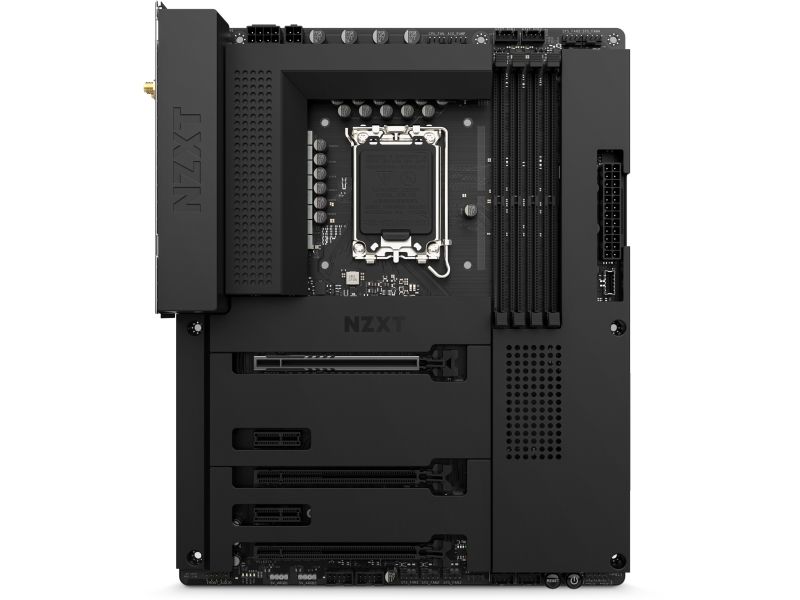

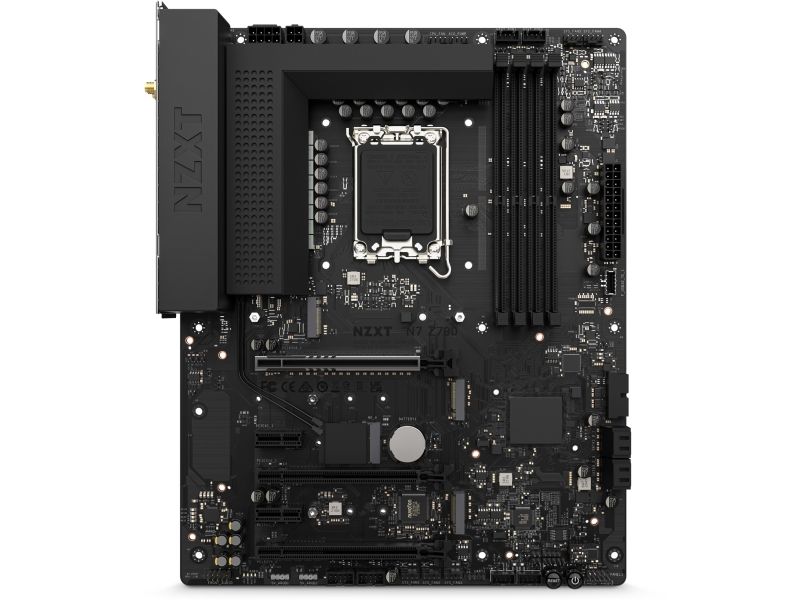

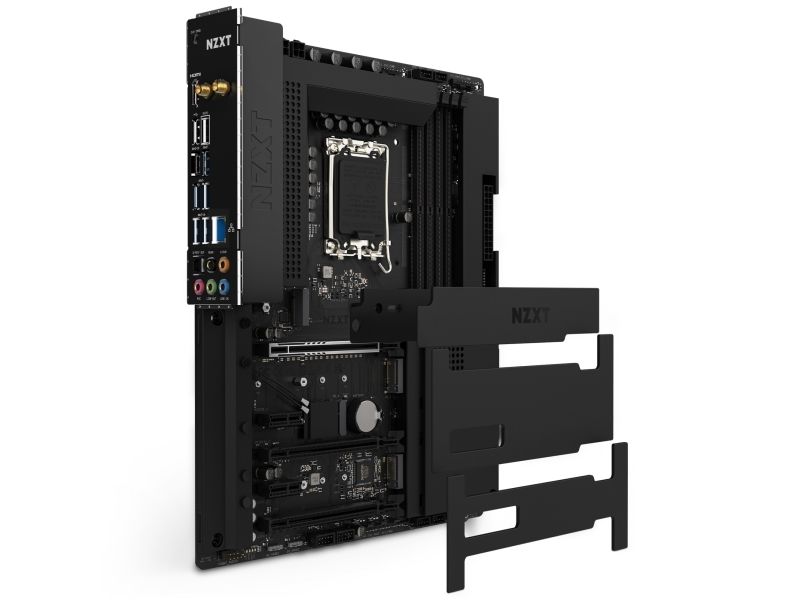

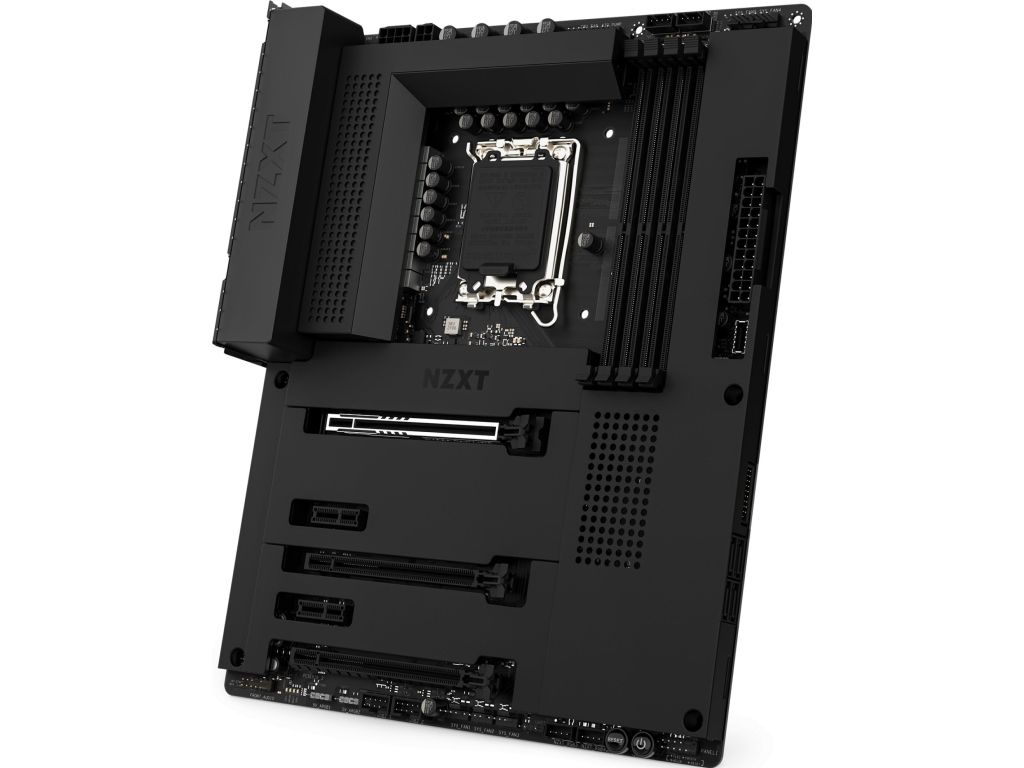

This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z790 chipset.

Produktbeskrivelse	NZXT N7 Z790 - bundkort - ATX - LGA1700 sokkel - Z790
Produkttype	Bundkort - ATX
Chipsættype	Intel Z790
Processor-socket	1 x LGA1700 sokkel
Kompatible processorer	(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)
Max RAM-størrelse	128 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte	4 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte	1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	2.5 Gigabit Ethernet
Producentgaranti	3 års garanti

Generelt
Produkttype	Bundkort - ATX
Chipsættype	Intel Z790
Processor-socket	LGA1700 sokkel
Max antal processorer	1
Kompatible processorer	(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)
Understøttet RAM
Maks. størrelse	128 GB
Teknologi	DDR5
Bus Clock	6000 MHz (O.C.)
Understøttet RAM-integritetskon	Ikke-ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type	HD Audio (8-kanaler)
Audio codec	Realtek ALC1220
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværk controller	Realtek RTL8125BG
Netværks interfaces	2.5 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 2 x PCIe 4.0 x16 (x4-modus) 2 x PCIe 3.0 x1 1 x M.2 socket (2280 M.2 Key M-åbning) 1 x M.2 socket (2242/2260/2280 M.2 Key M åbning) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA PCIe 4.0 -stikforbindelser: 3 x M.2

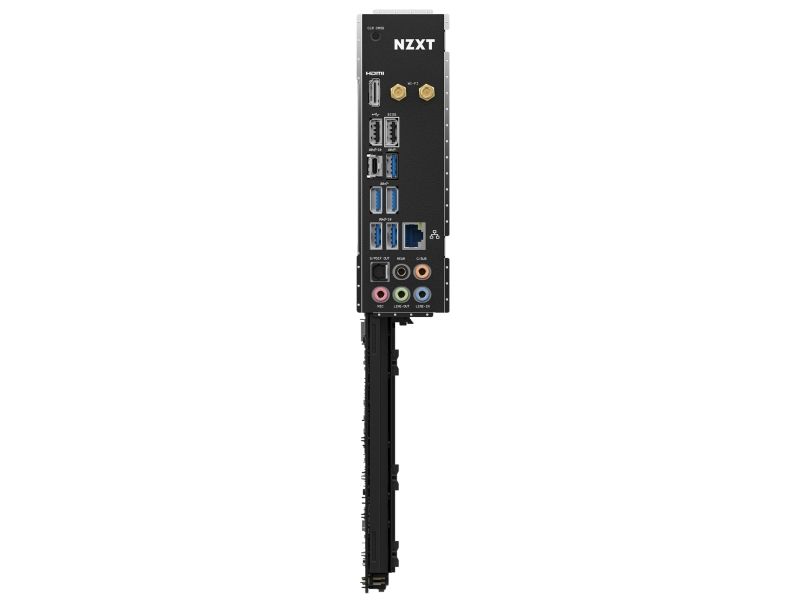

Interface	1 x HDMI 1 x USB-C 3.2 Gen2x2 2 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 1 x LAN (2.5Gigabit Ethernet) 2 x antenne 1 x SPDIF-ud
Interne interfaces	1 x USB-C 3.2 Gen 2x2 - intern stik 2 x USB 3.2 Gen 1 - intern stik 4 x USB 2.0 - intern stik 1 x audio - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor
Egenskaber
Hardware egenskaber	Water Pump Header, 16+1+2 Phase Power Design, Dr.MOS MOSFET, præmonteret I/O-skjold
Diverse
Udstyr inkluderet	3 x M.2 skruer, standoff til M.2 sokkel, 2 x Wi-Fi-antenne
Medfølgende ledninger	4 x Seriel ATA kabel
Producentgaranti
Service & Support	Begrænset garanti - 3 år

The item is known under the following item numbers in our system

EAN:	5056547202952
SKU:	N7-Z79XT-B1
