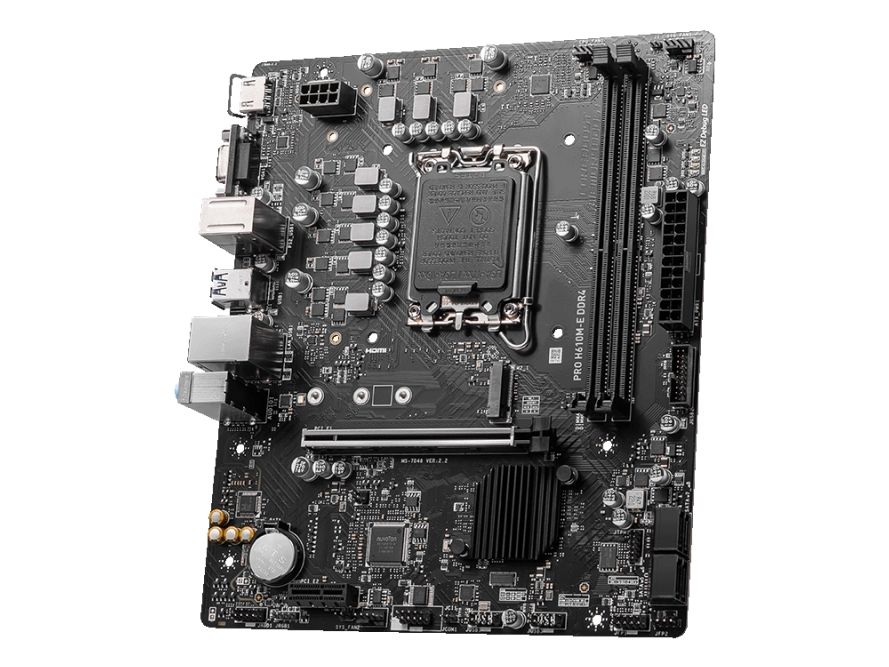

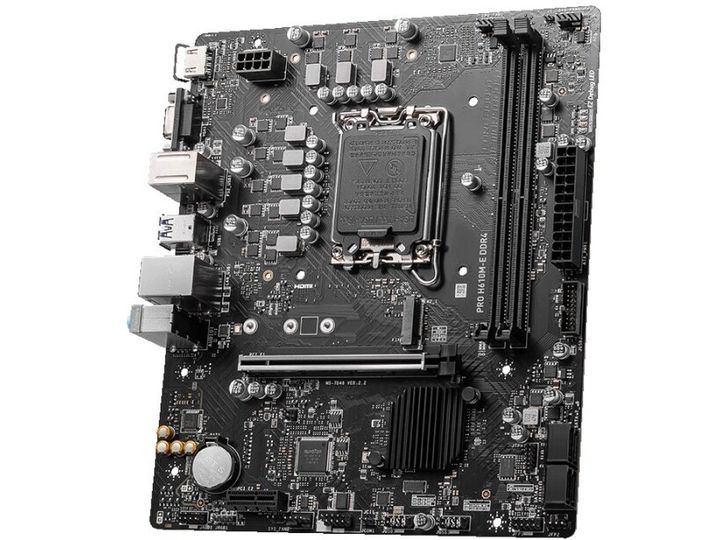

MSI PRO H610M-E DDR4, Intel, LGA 1700, Intel® Core™ i9, LGA 1700, DDR4-SDRAM, 64 GB

Item no.: [9592143] | Manufacturer: MSI | Model no.: PRO H610M-E DDR4 | EAN: 4711377002660

Remote stock (3-5 days)

The item is in a remote warehouse, delivery time is 3-5 business days. More info

EUR 70,61

ex. VAT 56,49

Total incl. delivery 85,61

Read further specifications and description

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Produktbeskrivelse	MSI PRO H610M-E DDR4 - bundkort - micro ATX - LGA1700 sokkel - H610
Produkttype	Bundkort - micro ATX
Chipsættype	Intel H610
Processor-socket	1 x LGA1700 sokkel
Kompatible processorer	(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)
Max RAM-størrelse	64 GB
RAM understøttet	2 DIMM slots - DDR4, ikke-ECC, ikke bufferet
Lagringsporte	4 x SATA-600, 1 x M.2
USB / FireWire porte	2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	Gigabit Ethernet

Generelt
Produkttype	Bundkort - micro ATX
Chipsættype	Intel H610
Processor-socket	LGA1700 sokkel
Max antal processorer	1
Kompatible processorer	(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)
Understøttet RAM
Maks. størrelse	64 GB
Teknologi	DDR4
Bus Clock	2133 MHz, 2666 MHz, 3200 MHz
Understøttet RAM-integritetskon	Ikke-ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur
Audio
Type	HD Audio (8-kanaler)
Audio codec	Realtek ALC897
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværk controller	Realtek RTL8111H
Netværks interfaces	Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 2 x DIMM 288-pins 1 x PCIe 4.0 x16 1 x M.2 socket (2242/2260/2280 M.2 Key M åbning) 1 x PCIe 3.0 x1
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA PCIe 3.0 -stikforbindelser: 1 x M.2

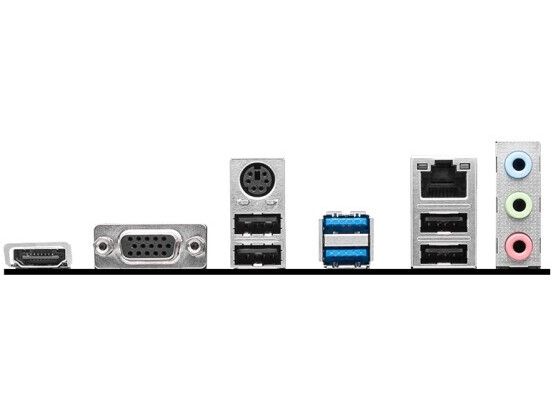

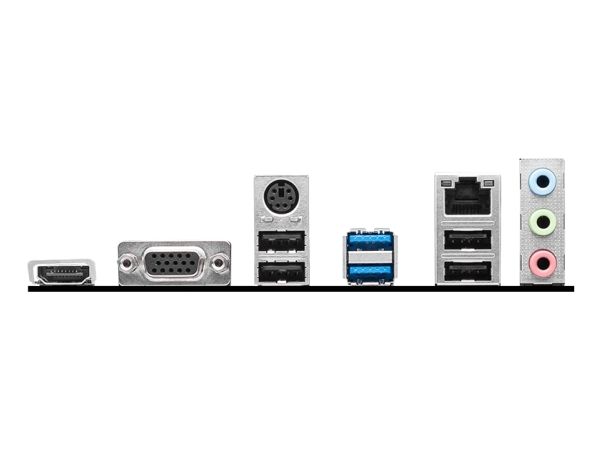

Interface	1 x HDMI 1 x VGA 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 1 x PS/2-tastatur/mus 1 x LAN (Gigabit Ethernet)
Interne interfaces	1 x seriel - intern stik 1 x SPI - intern stik 1 x audio - intern stik 2 x USB 3.2 Gen 1 - intern stik 4 x USB 2.0 - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-egenskaber	MSI ClickBIOS 5
Hardware egenskaber	Chassis intrusion styring, MSI Core Boost, MSI Memory Boost, MSI PCIe Steel Slot, Debug LED, MSI Audio Boost
Diverse
Udstyr inkluderet	IO-skjold, M.2 klemme
Medfølgende ledninger	2 x Seriel ATA kabel
Med software	MSI Center
Overensstemmelsesstandarder	FCC Part 15 Class B, WEEE, JIS C 0950
Bredde	23.6 cm
Dybde	20 cm

The item is known under the following item numbers in our system

EAN:	4711377002660
SKU:	PRO H610M-E DDR4
SKU:	7D48-001R

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
