The MegaView 91enables you to easily connect TVs at multiple locations in the home to one decoder in one central area.

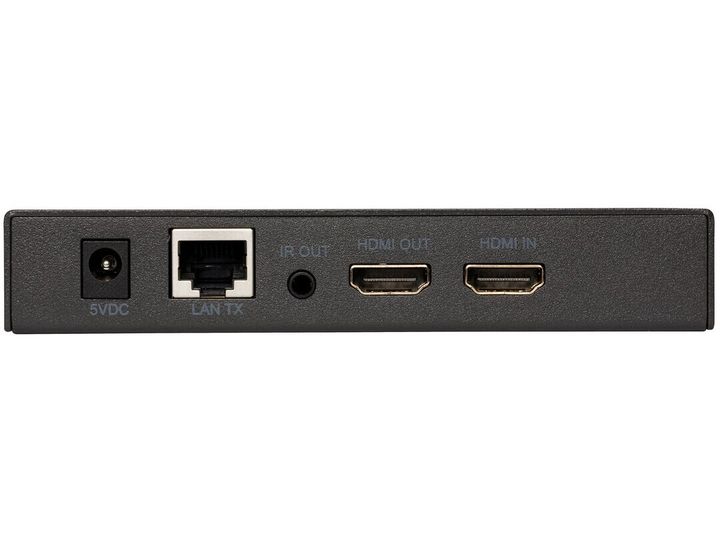

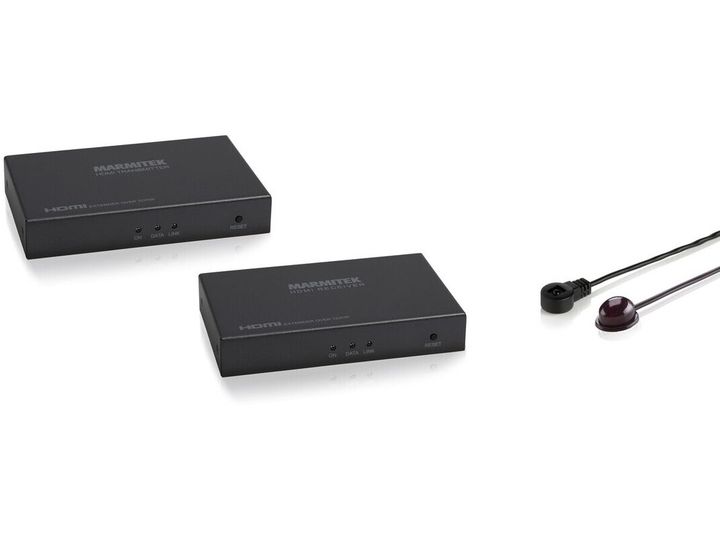

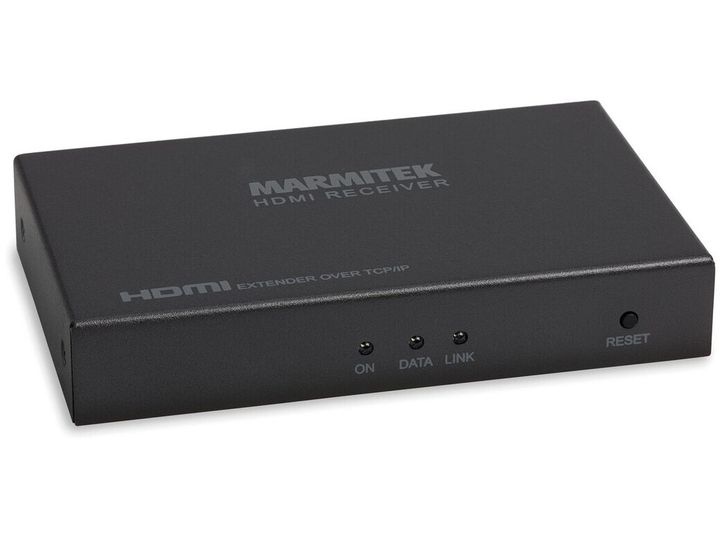

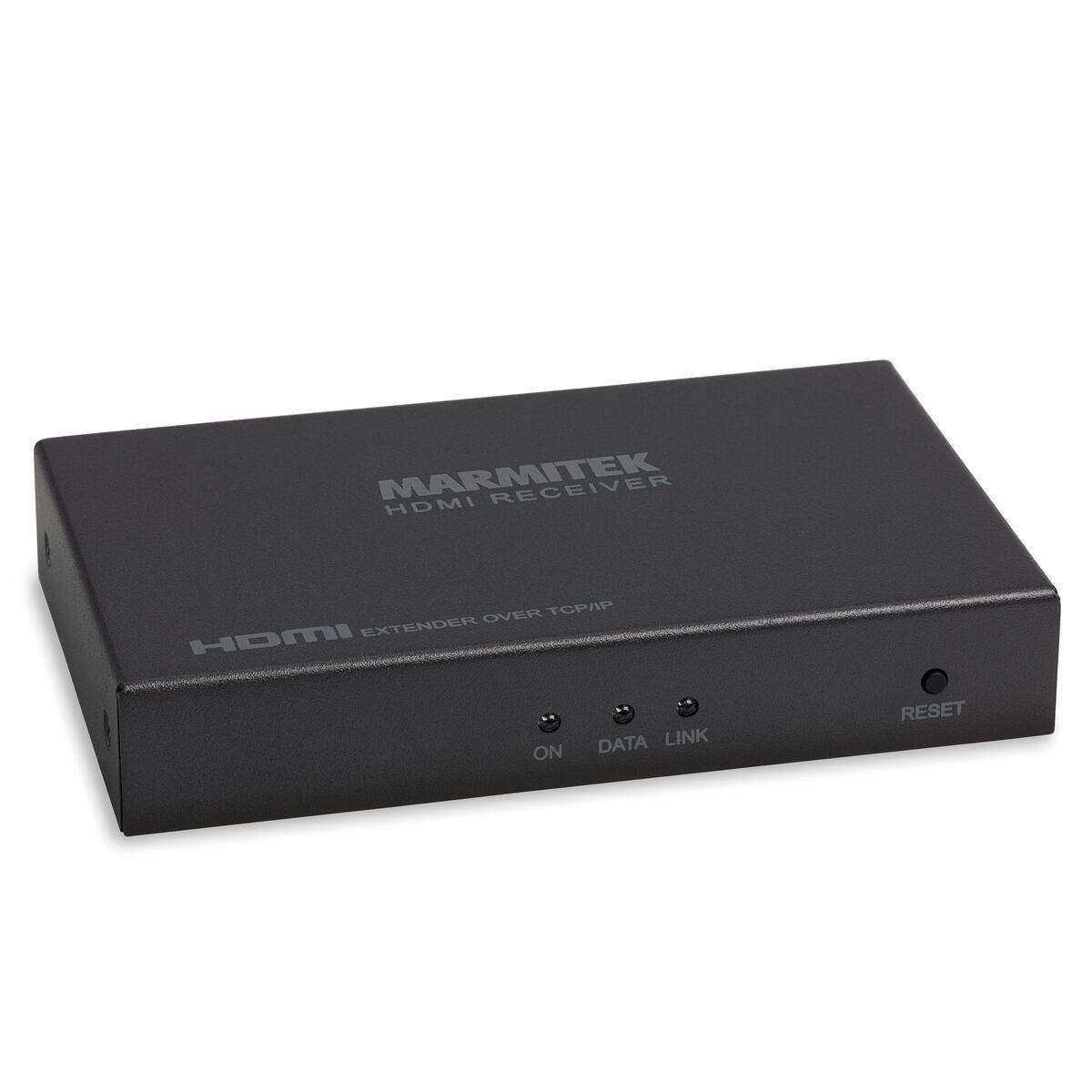

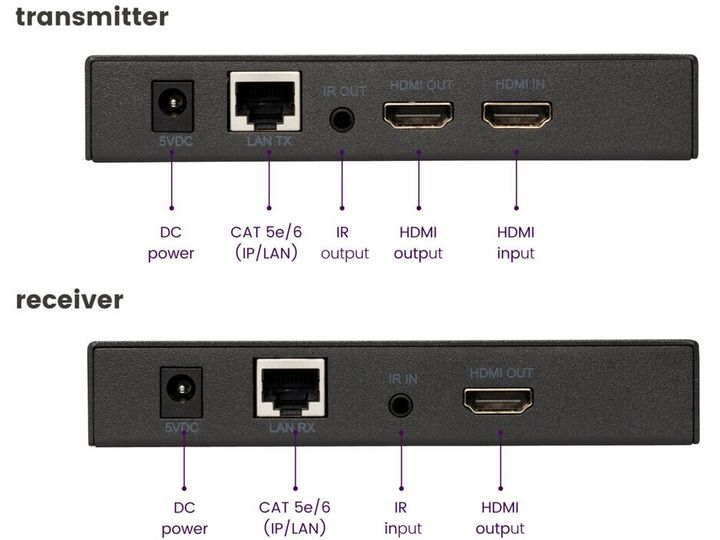

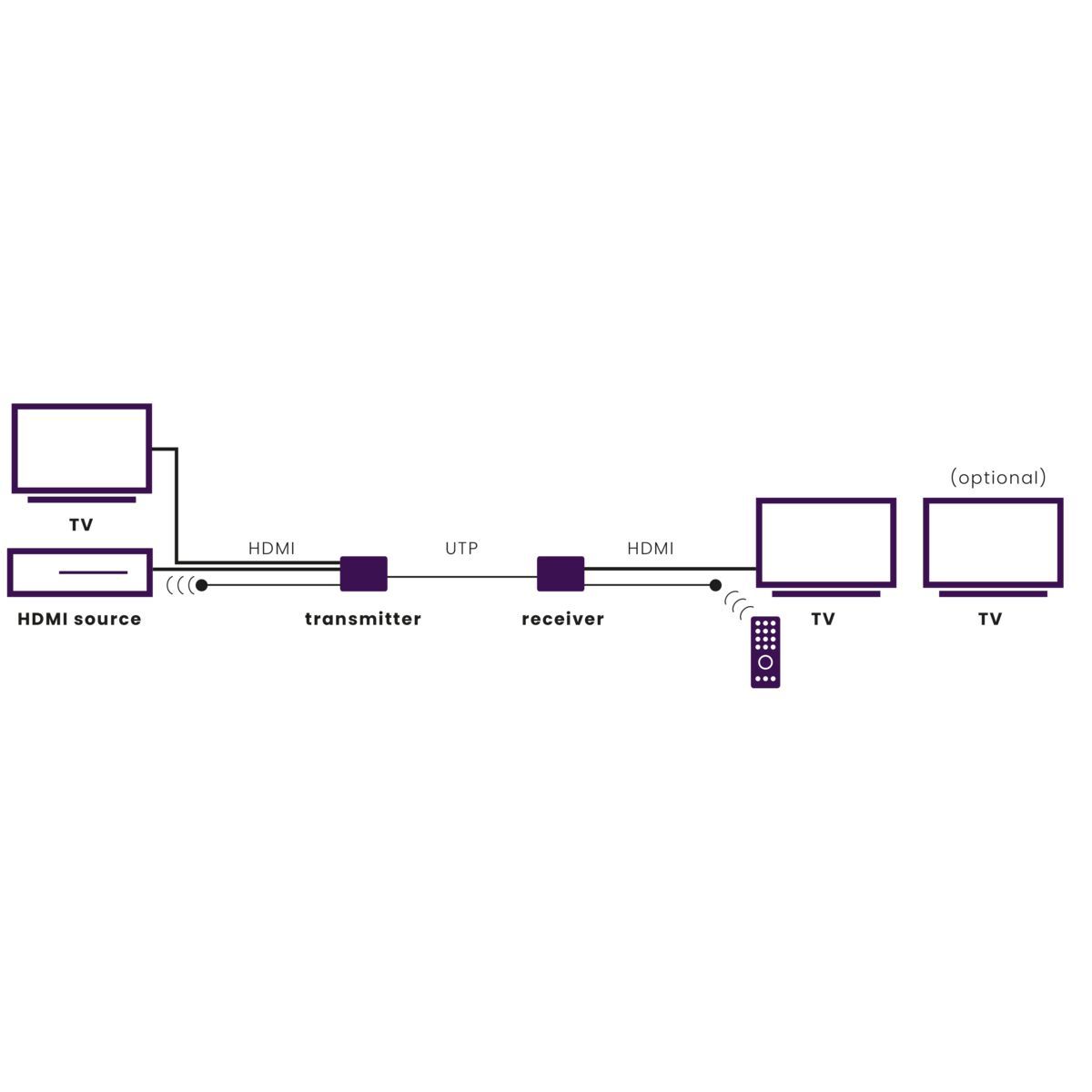

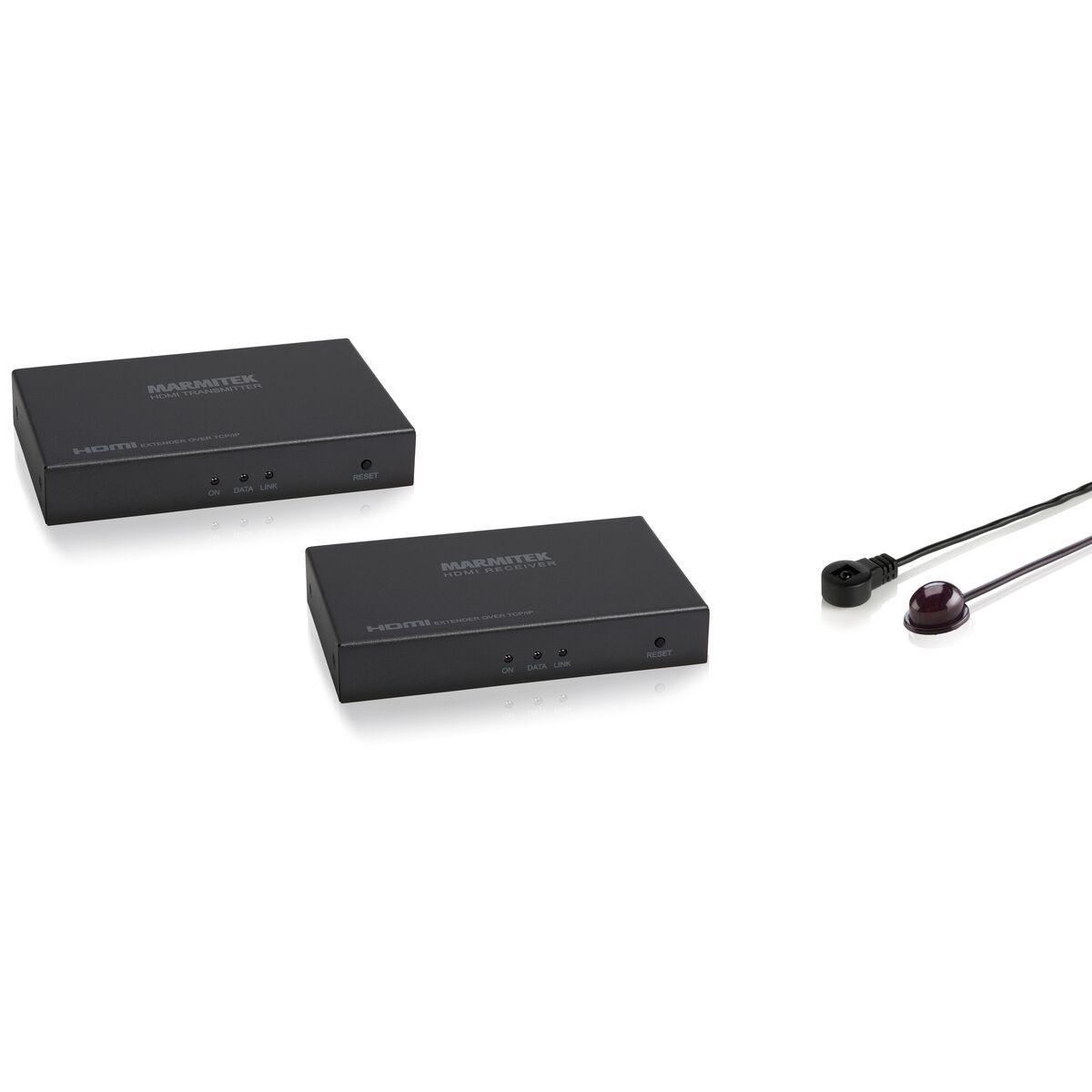

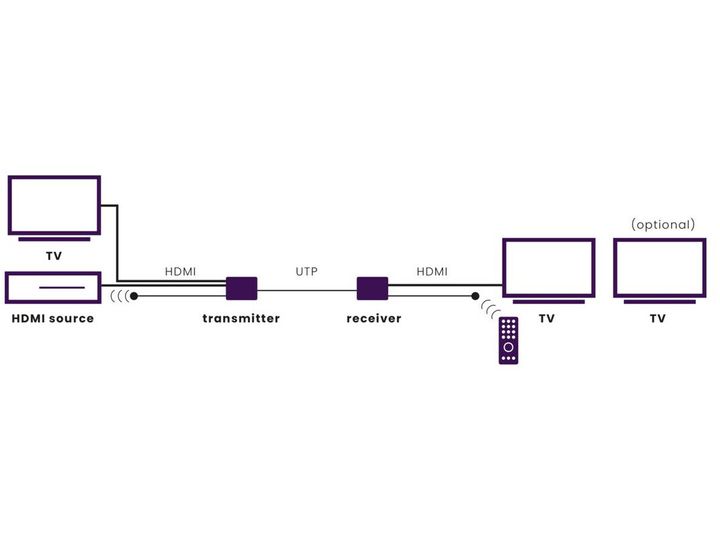

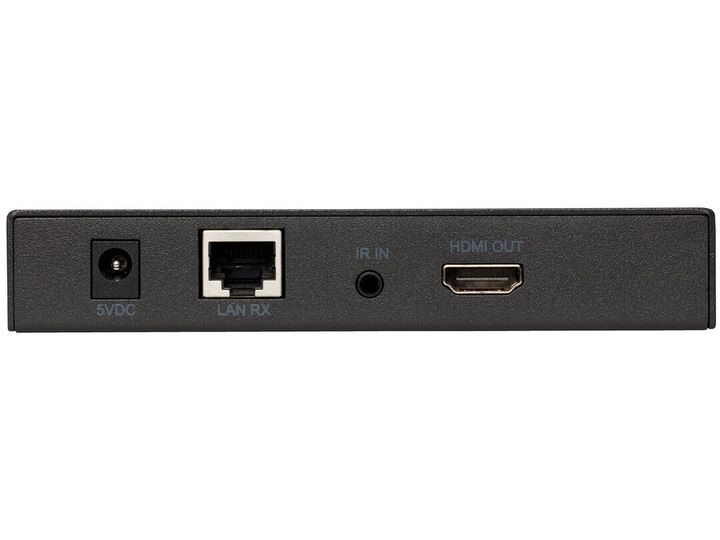

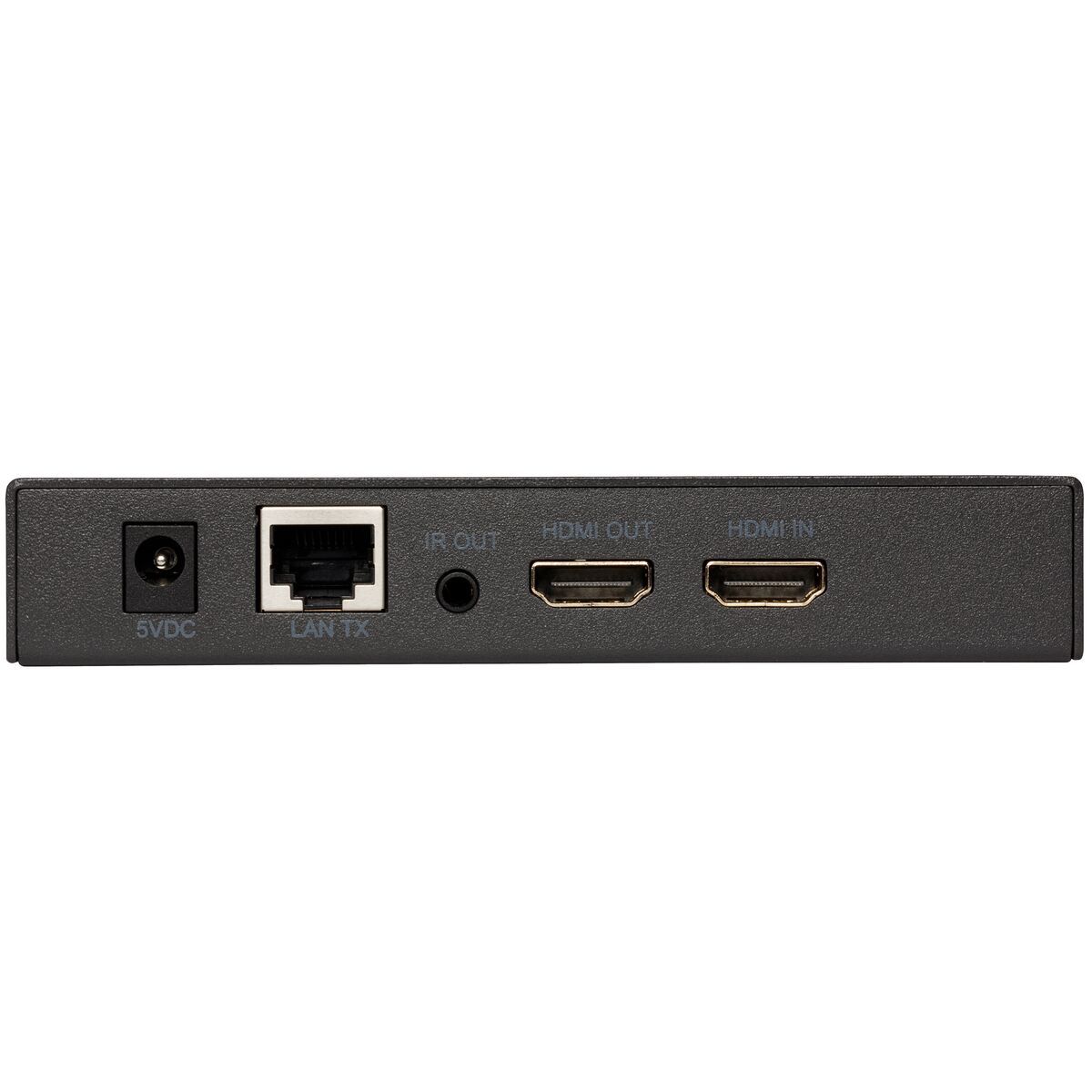

The MegaView 91consists of one HDMI transmitter and one HDMI receiver. Unique to the MegaView 91 is that you can connect additional receivers (available separately) to a single HDMI transmitter. This enables you to extend the signal of, for example, a decoder for up to 120 metres over 1 CAT 5e/6 cable, to one or more TVs (>10). You use an HDMI cable to connect the decoder to the MegaView transmitter, and another HDMI cable to connect the MegaView receiver to your (2nd) TV. The MegaView transmitter and receiver are connected through a UTP cable.
Additionally, you can use the MegaView 91in combination with your existing home network (LAN), including routers and switches.
The loopthrough connection makes it possible to connect an additional TV to your decoder. Thus, you can watch the same content on 2 TVs at the same time. The built-in infrared return function ensures that you can operate your source device remotely as well. This is useful, for example, if you want to watch the rest of your favourite series in the bedroom and your decoder is downstairs. Additionally, you can use the MegaView 91in combination with your existing home network (LAN), including routers and switches. This makes the MegaView 91 a very versatile HDMI extender over CAT5.
If you don't require multiple receivers, or if you want to have an overview of all the alternatives Marmitek offers in this category, please refer to the overview table to check which MegaView best suits your needs.
Type
AV transmitter & receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
120 m
IR pass-through
Yes
Supported network protocols
TCP/IP
Infrared (IR) frequency range
30 - 60 kHz
Supported video modes
480p, 576i, 576p, 720p, 1080i, 1080p
Bandwidth
6.75 Gbit/s
Cable length
1 m
Video compression formats
H.264
HDCP
Yes
HDCP & EDID bypass
Yes
Carrier frequency
60 kHz
Plug and Play
Yes
HDCP version
1.3
Product colour
Black
Connectivity technology
Wired
Ethernet LAN
Yes

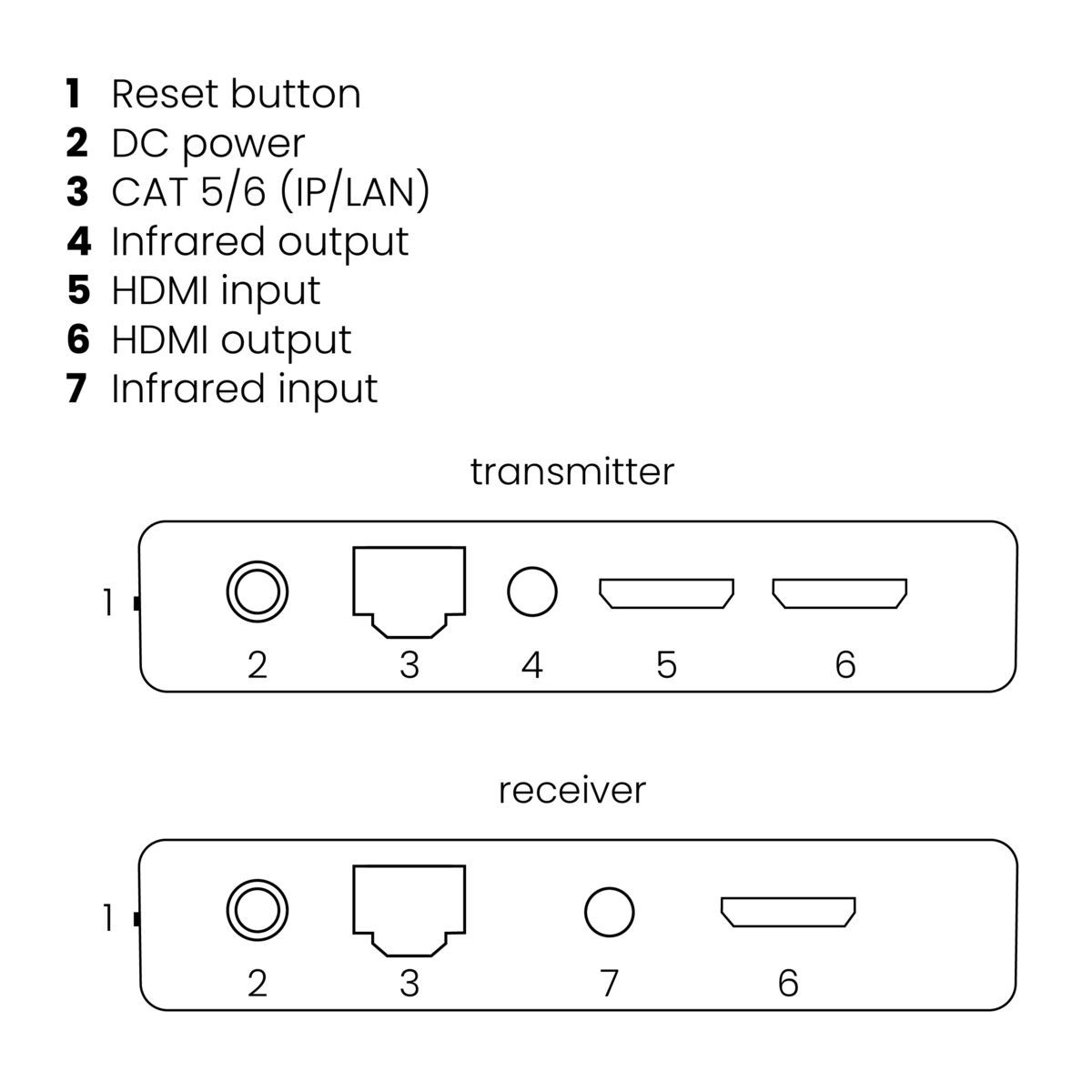

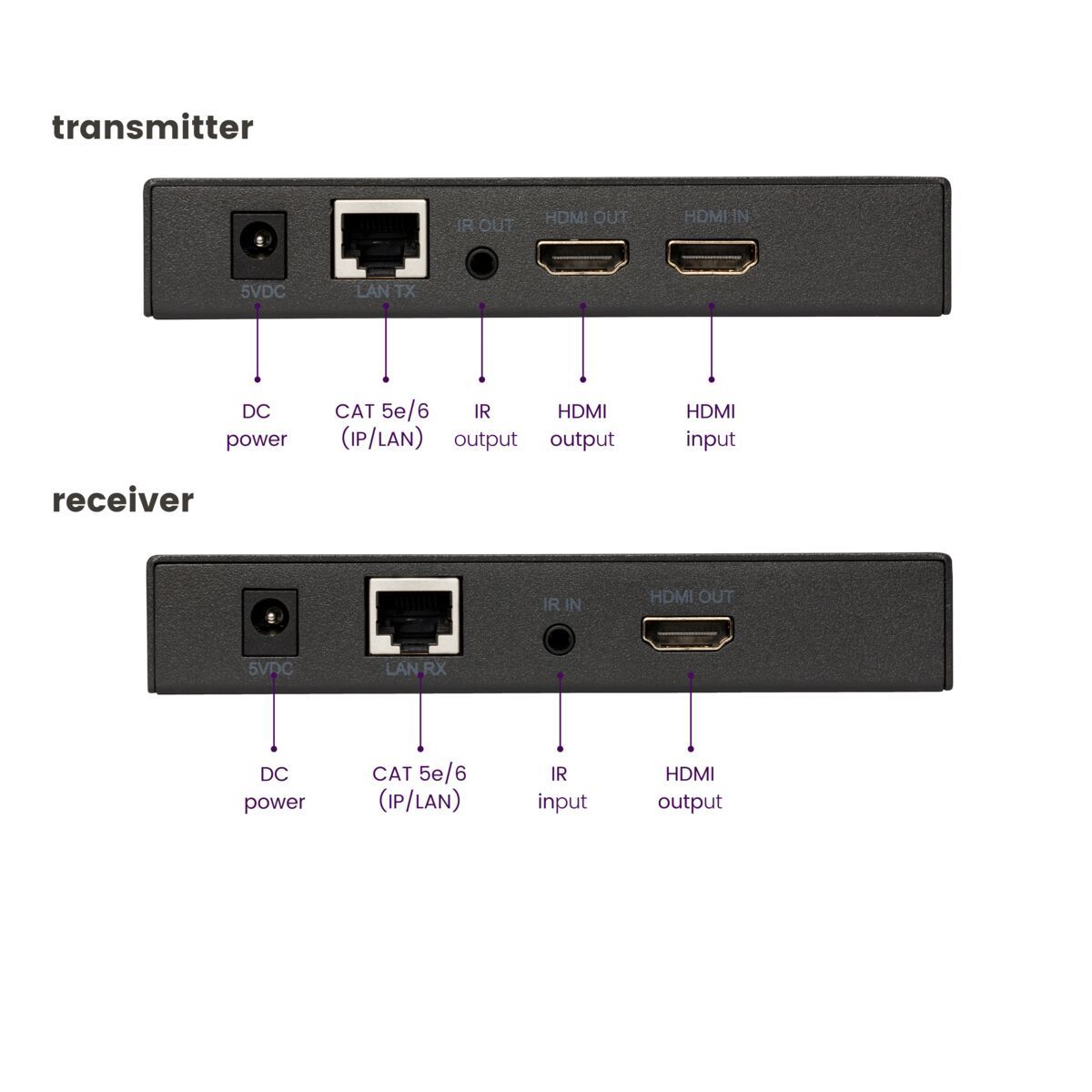

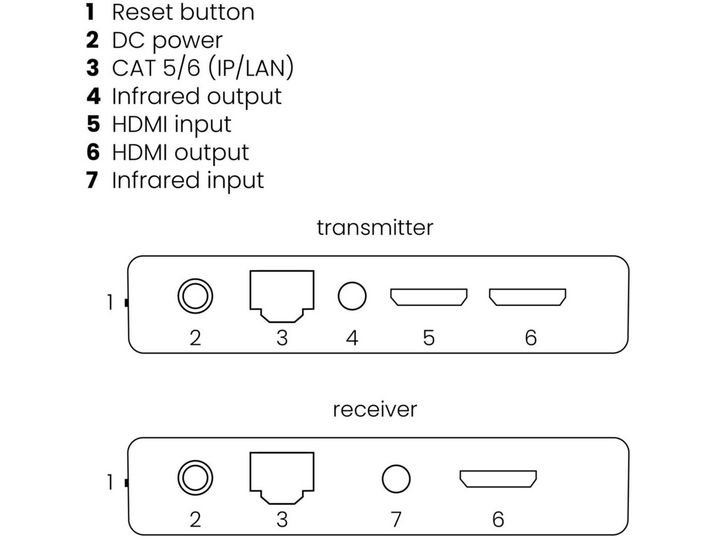

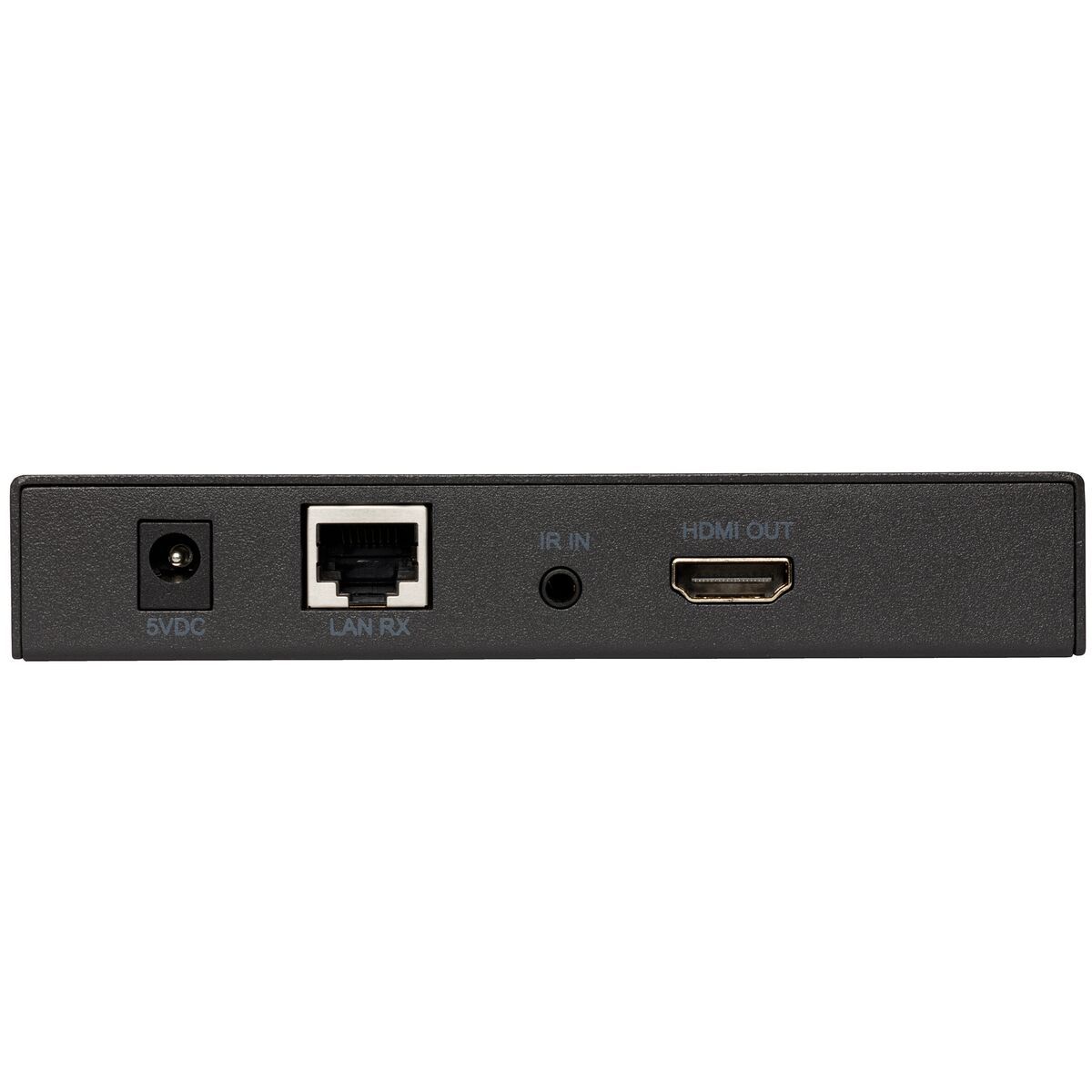

RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
2
Remote (IR) output
1
DC-in jack
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Operating voltage
5 V
Operating temperature (T-T)
0 - 70 °C
Operating relative humidity (H-H)
10 - 85%

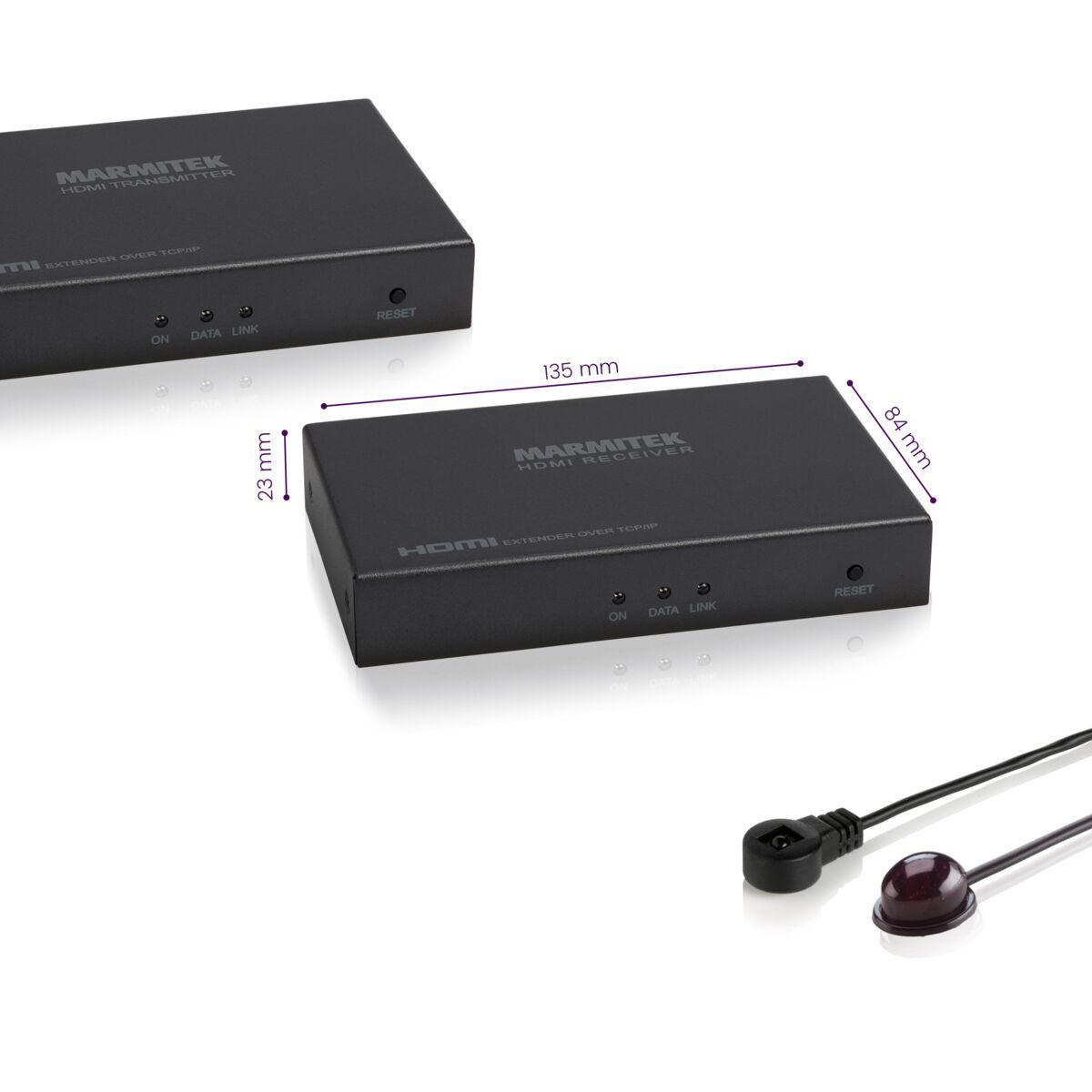

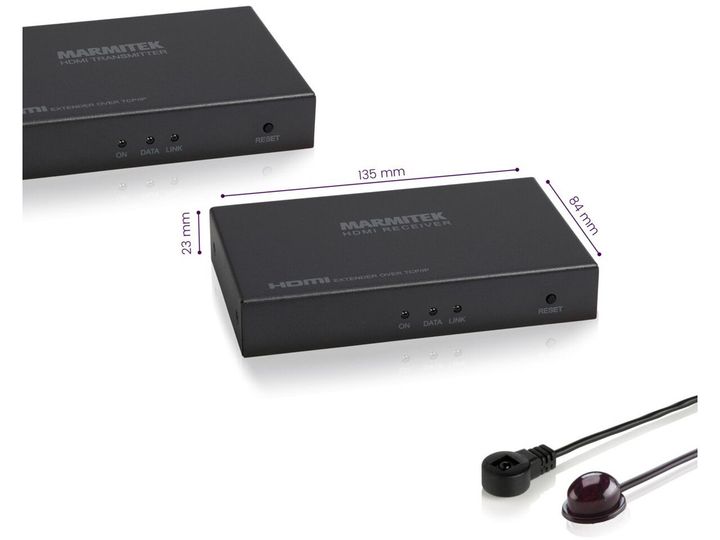

Receiver dimensions (WxDxH)
135 x 84 x 23 mm
Receiver weight
330 g
Transmitter dimensions (WxDxH)
135 x 84 x 23 mm
Transmitter weight
330 g

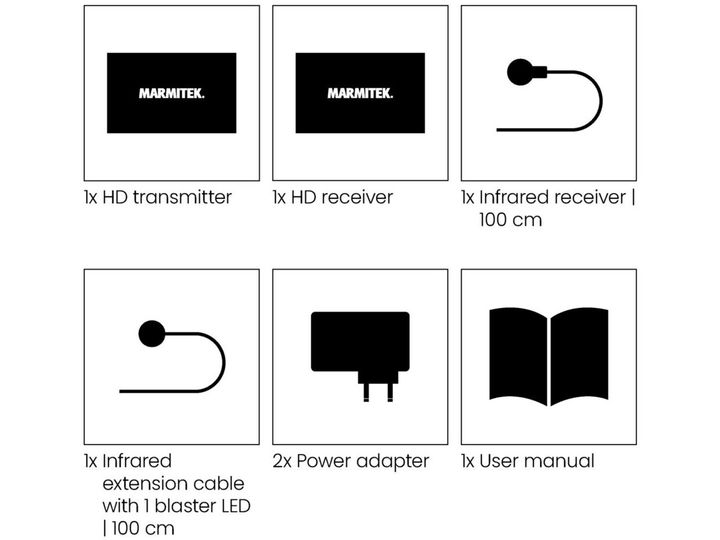

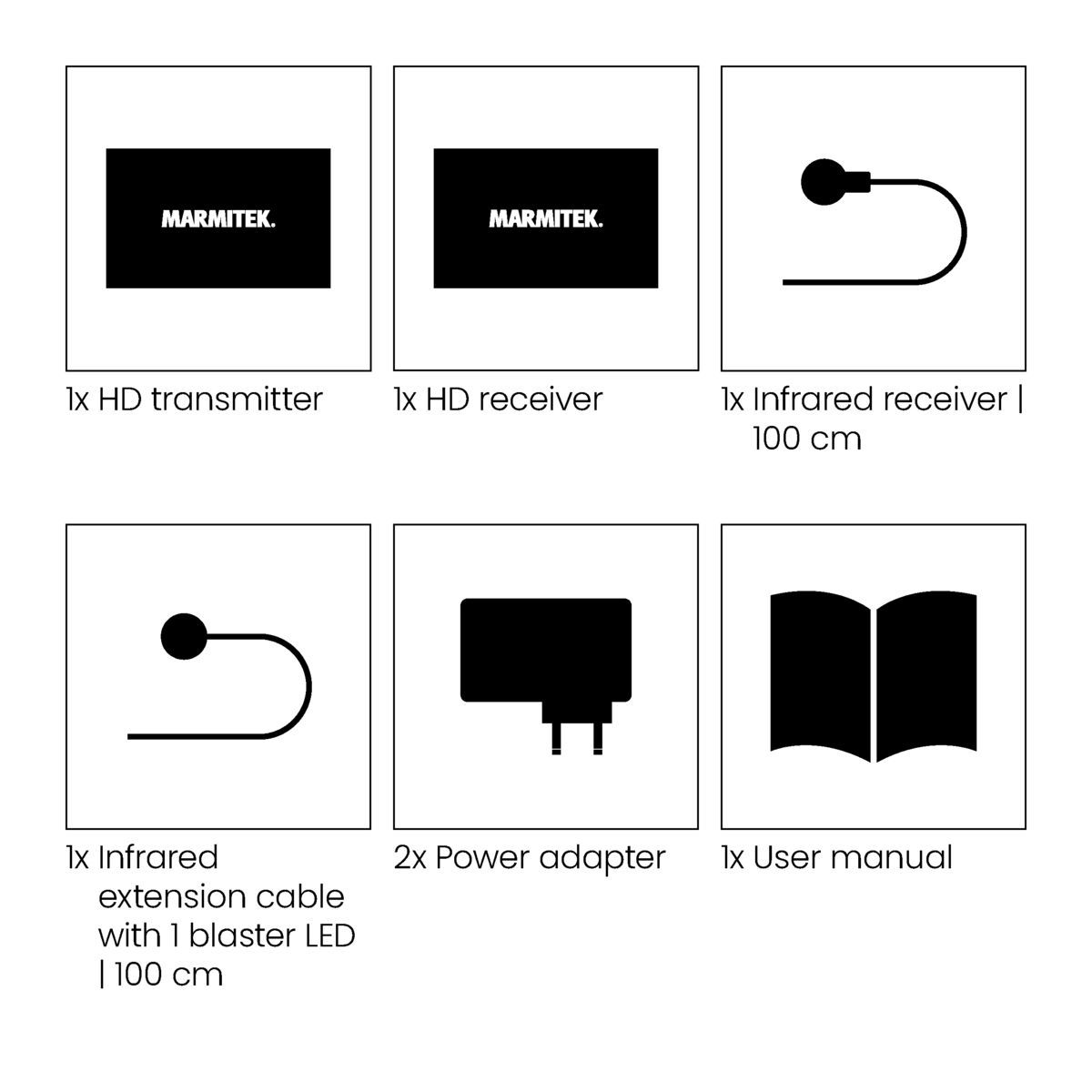

AC adapter included
Yes
IR blaster included
Yes
IR receiver included
Yes
Frequency
225 MHz
