The MegaView 90enables you to easily connect TVs at multiple locations in the home to one decoder in one central area.

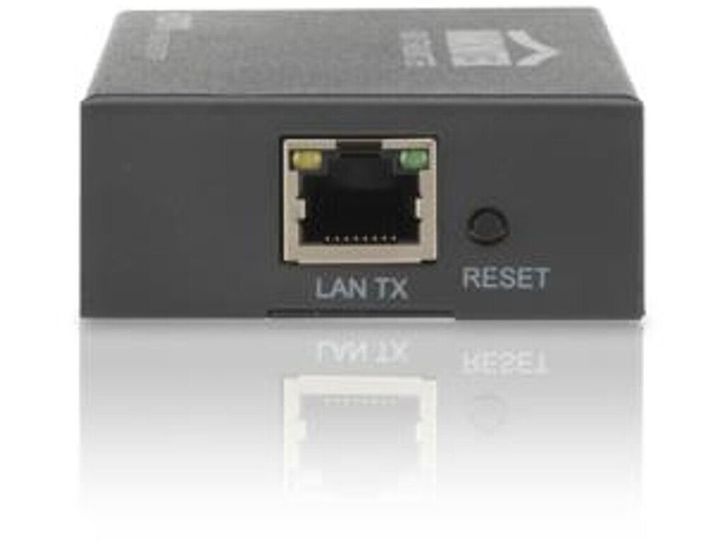

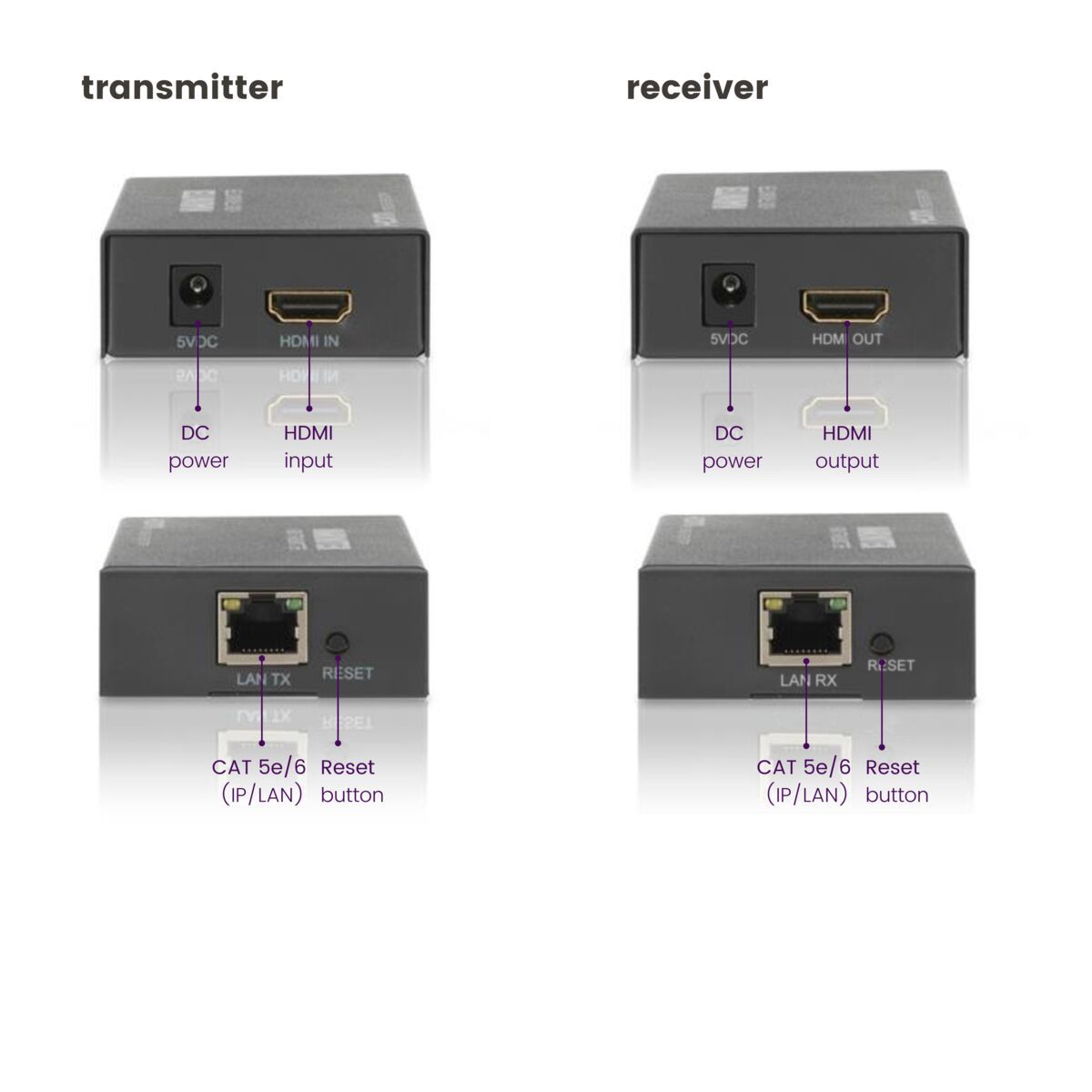

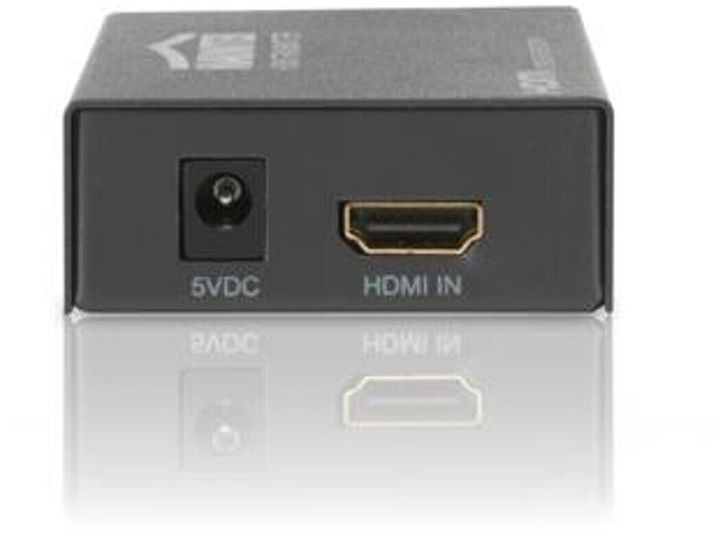

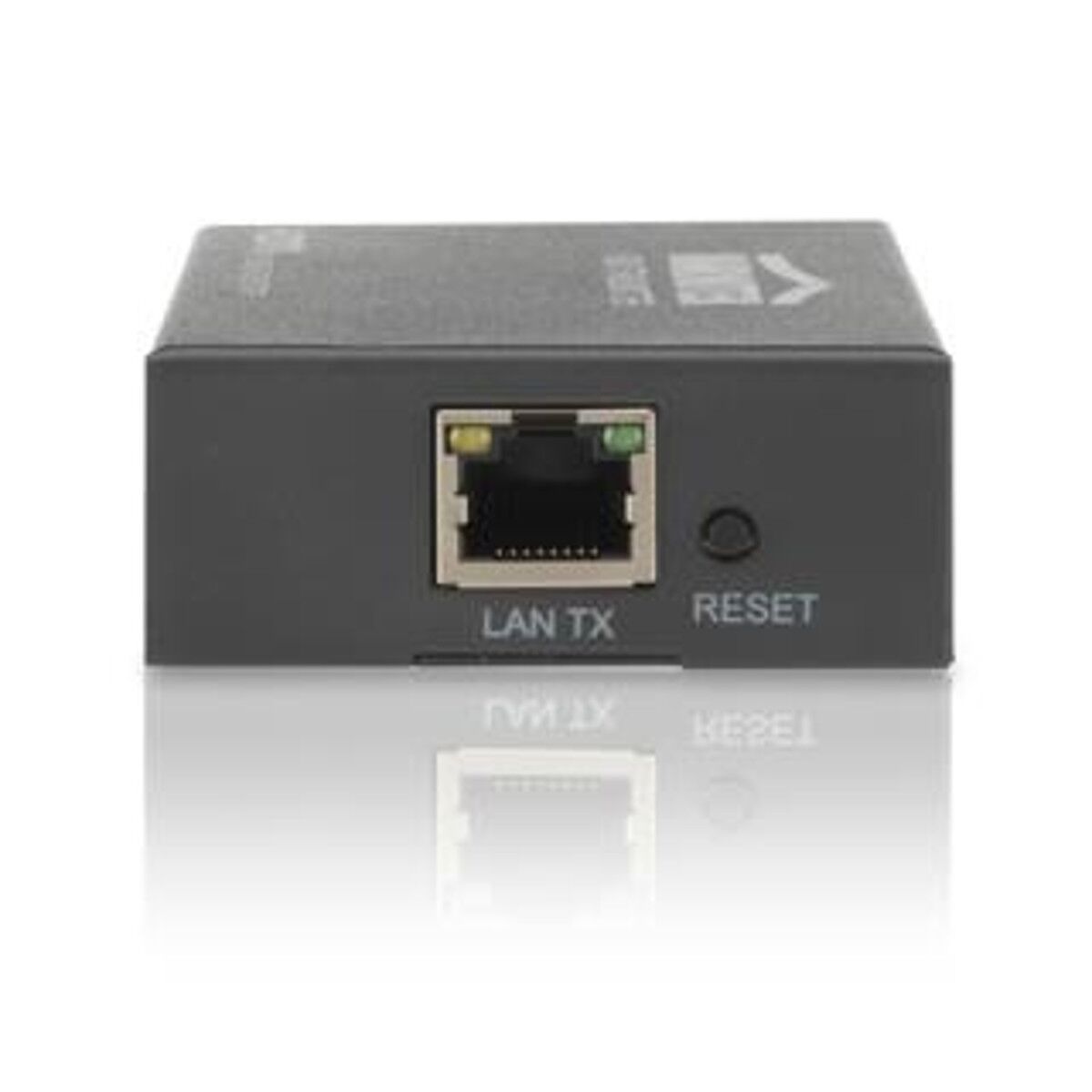

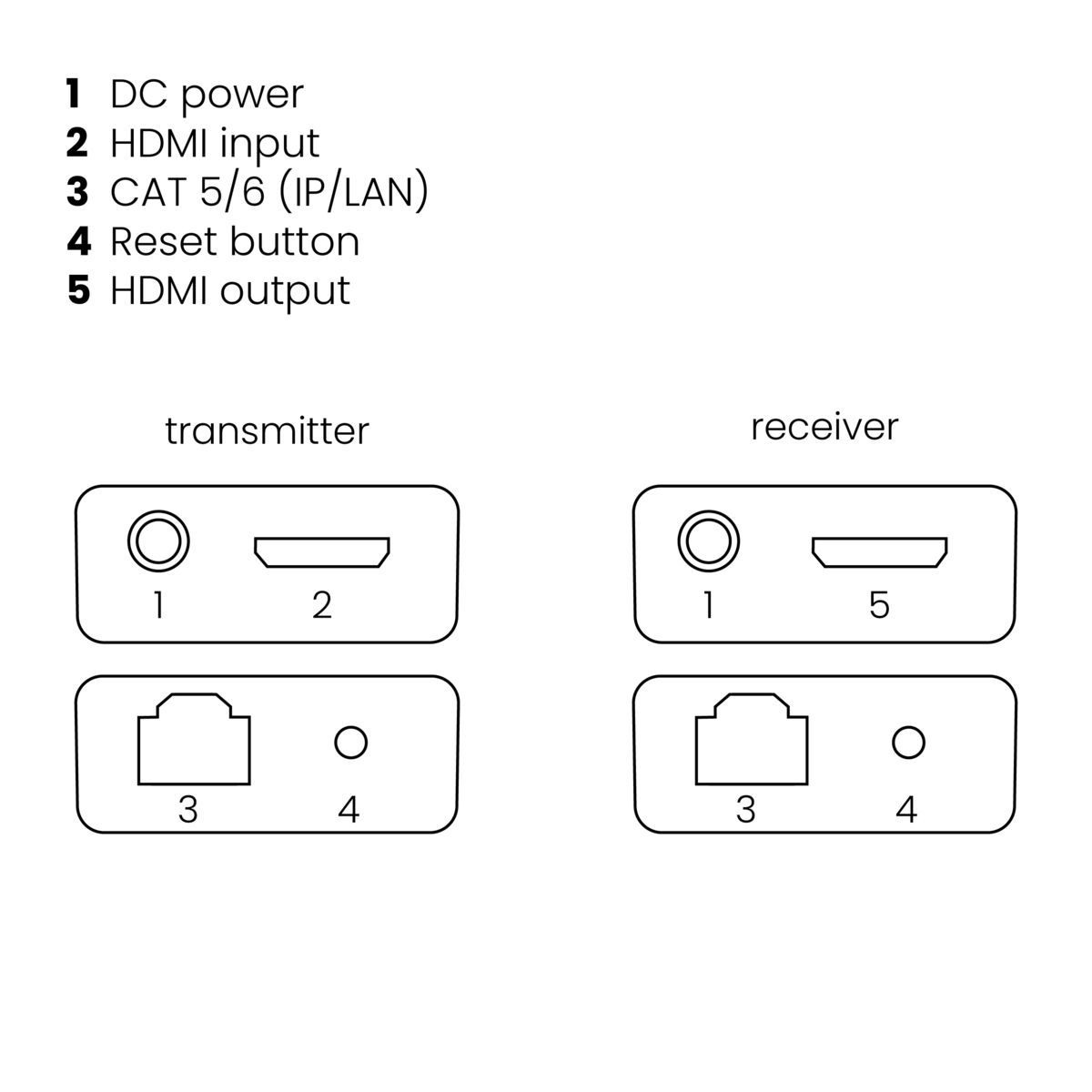

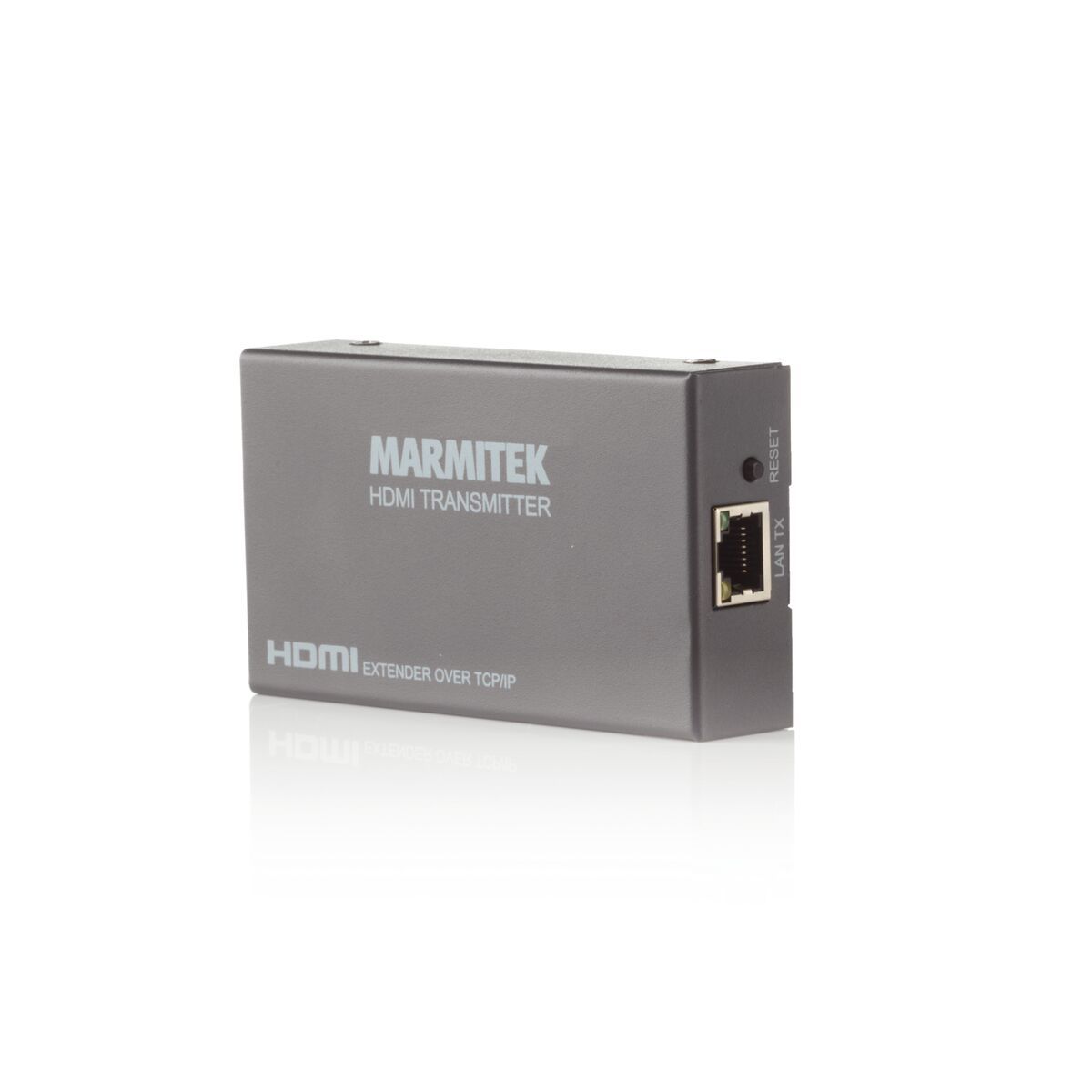

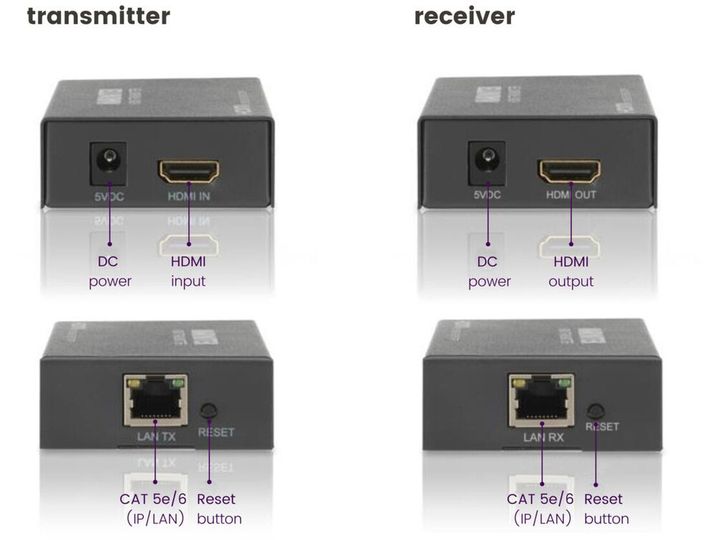

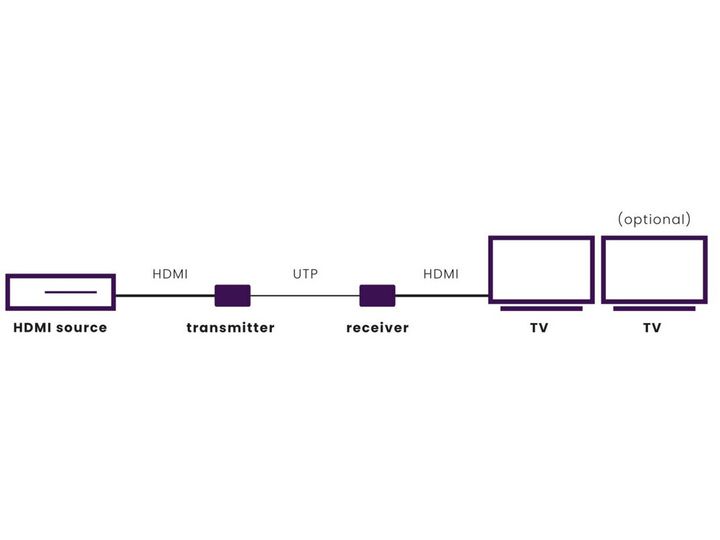

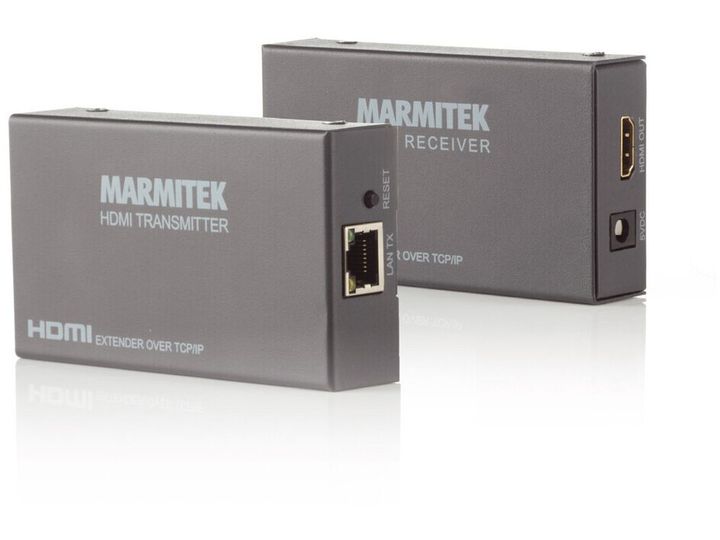

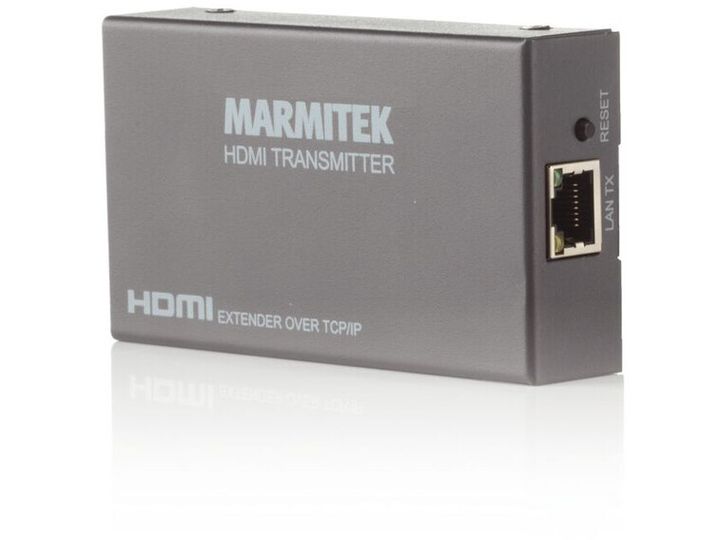

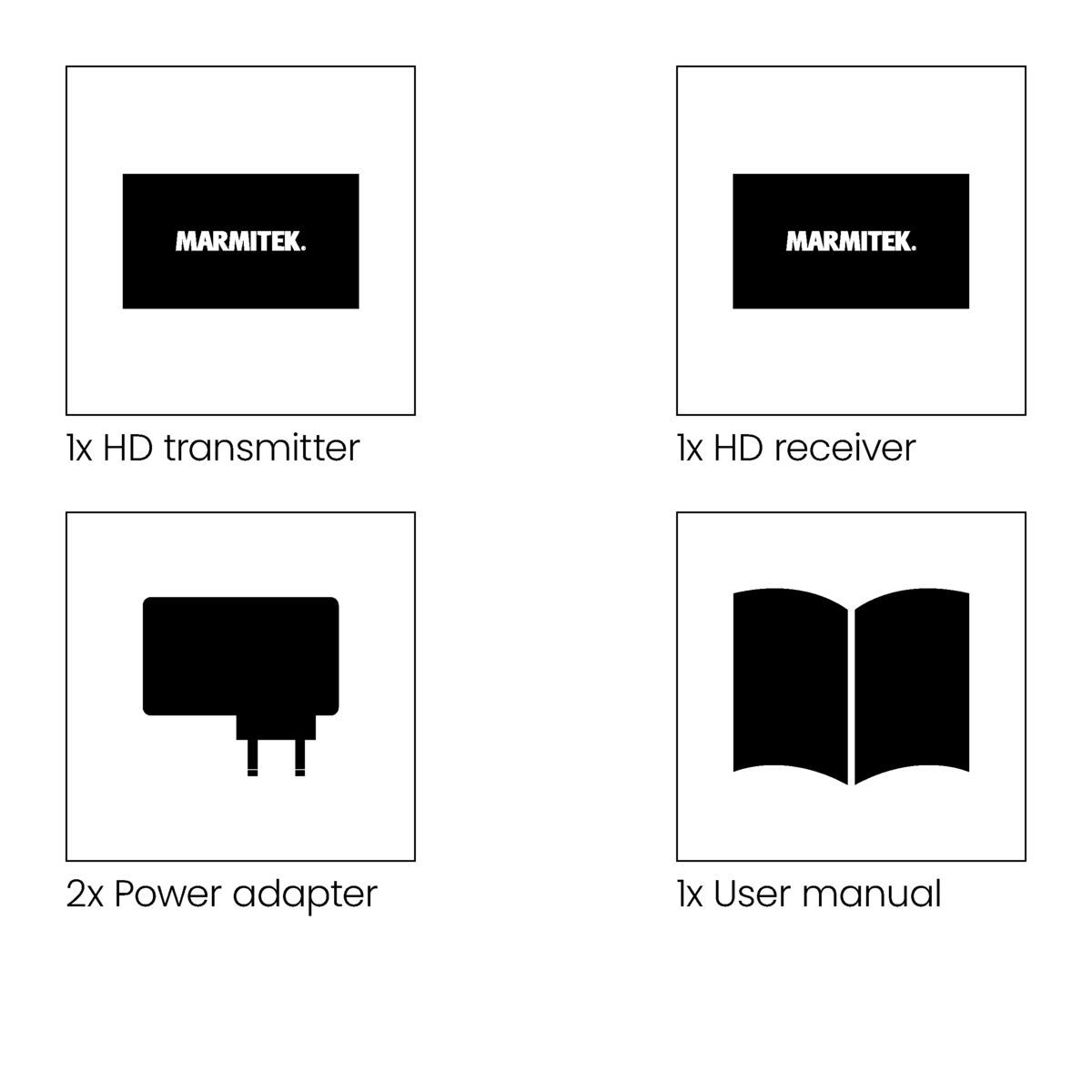

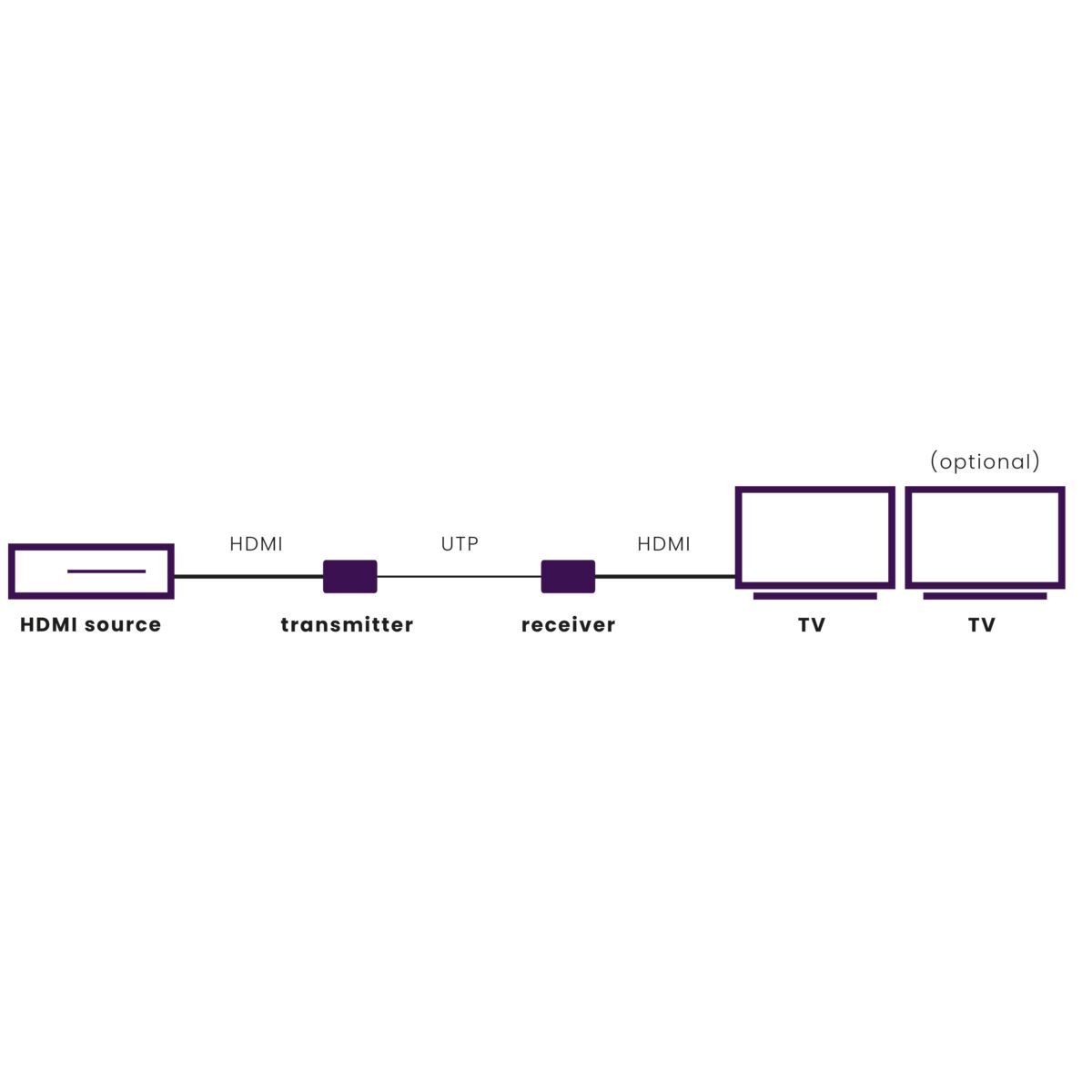

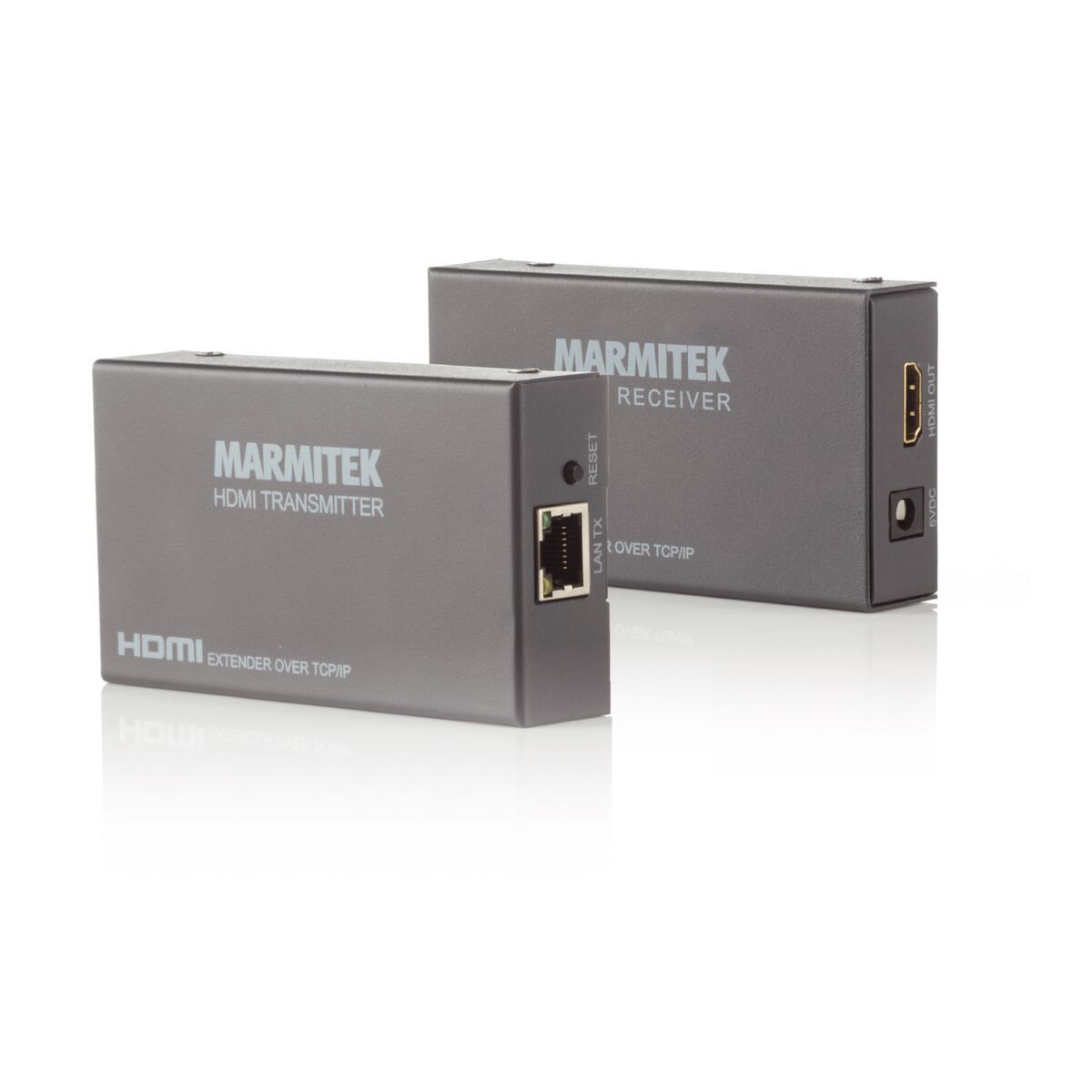

The MegaView 90consists of one HDMI transmitter and one HDMI receiver. Unique to the MegaView 90is that you can connect additional receivers (available separately) to a single HDMI transmitter. This enables you to extend the signal of, for example, a decoder for up to 120 metres over 1 CAT 5e/6 cable, to one or more TVs (>10). You use an HDMI cable to connect the decoder to the MegaView transmitter, and another HDMI cable to connect the MegaView receiver to your (2nd) TV. The MegaView transmitter and receiver are connected through a UTP cable.
Additionally, you can use the MegaView 90in combination with your existing home network (LAN), including routers and switches.
If you also want to operate the source device remotely, you should select the MegaView 90, with built-in infrared return function.
Type
AV transmitter & receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
120 m
Extended display identification data (EDID)
Yes
Supported network protocols
TCP/IP
LED indicators
Data, Link
Supported video modes
480p, 576i, 576p, 720p, 1080i, 1080p
Bandwidth
6.75 Gbit/s
Bandwidth
225 MHz
Audio formats supported
PCM
Video compression formats
H.264
HDCP
Yes
Product colour
Black
Ethernet LAN
Yes

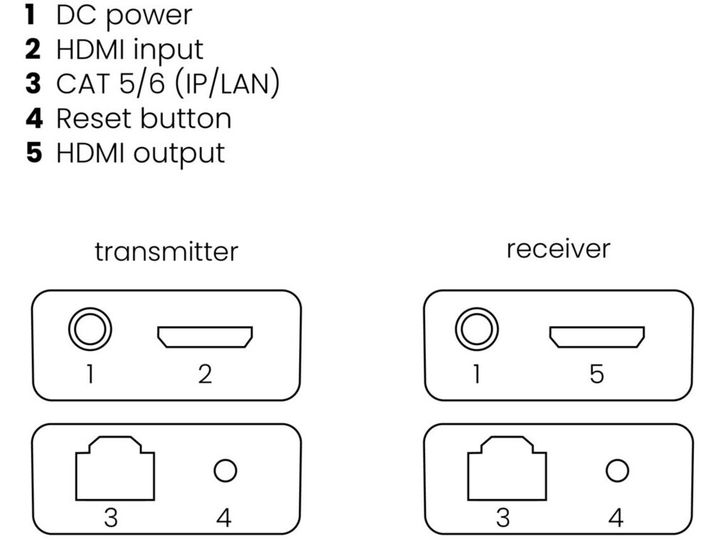

RJ-45 input ports
1
RJ-45 output ports
1

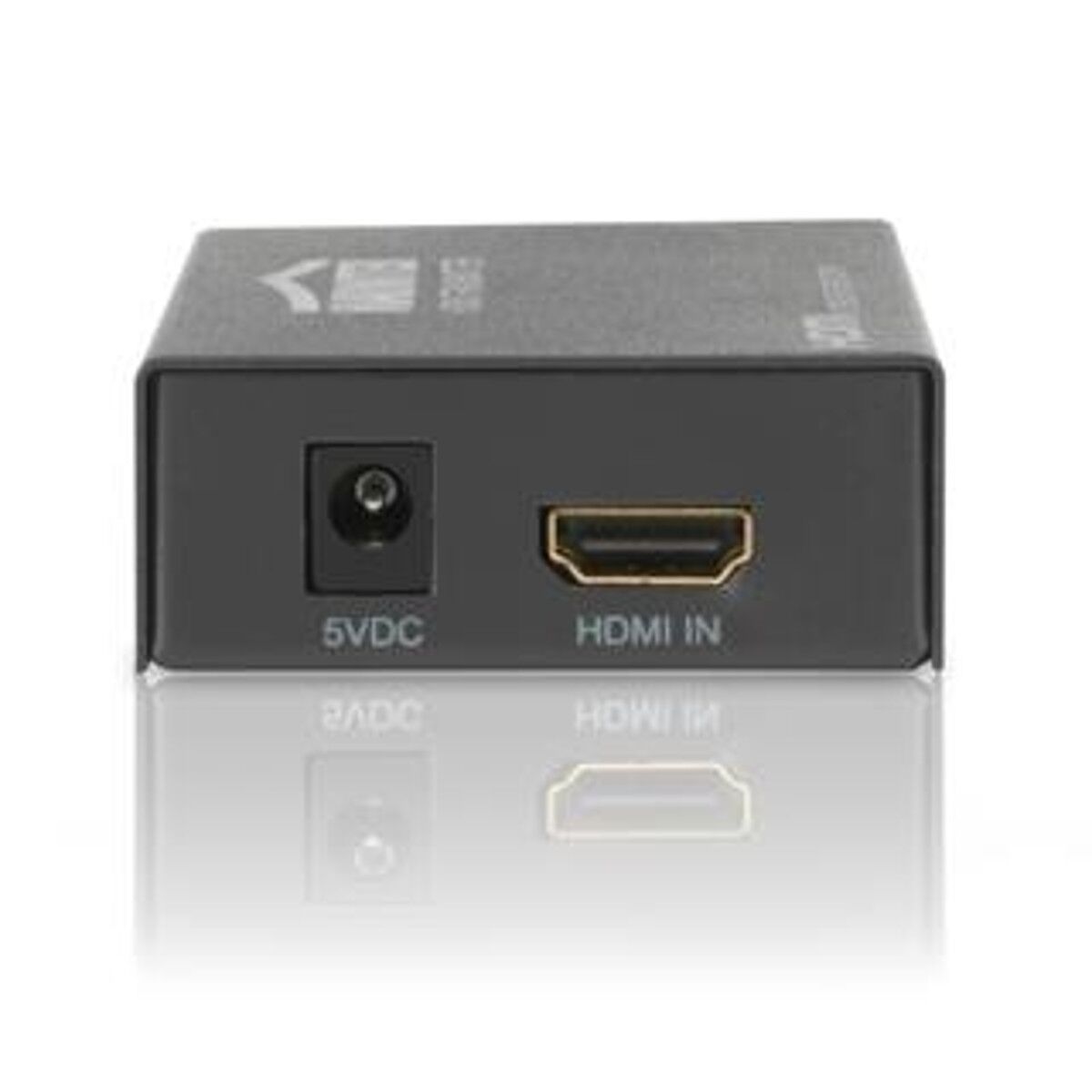

HDMI in
1
Number of HDMI outputs
1
DC-in jack
Yes
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Operating voltage
5 V
Operating temperature (T-T)
0 - 70 °C
Operating relative humidity (H-H)
10 - 85%

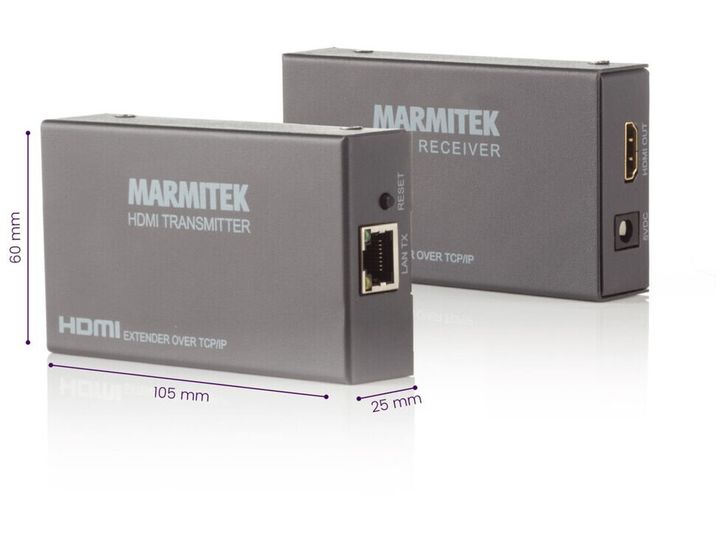

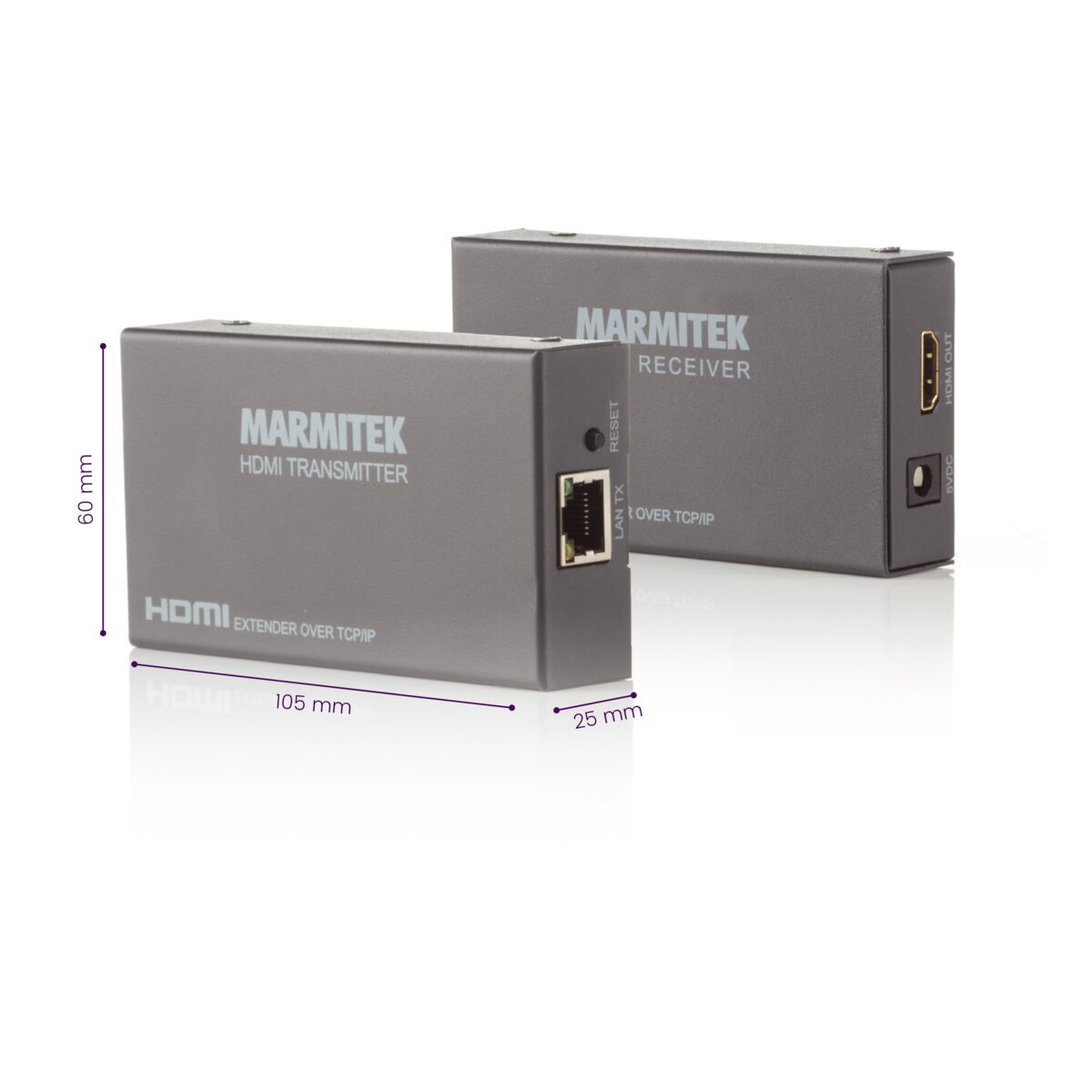

Receiver dimensions (WxDxH)
105 x 60 x 25 mm
Receiver weight
160 g
Transmitter dimensions (WxDxH)
105 x 60 x 25 mm
Transmitter weight
160 g
Package width
260 mm
Package depth
70 mm
Package height
190 mm
Package type
Box

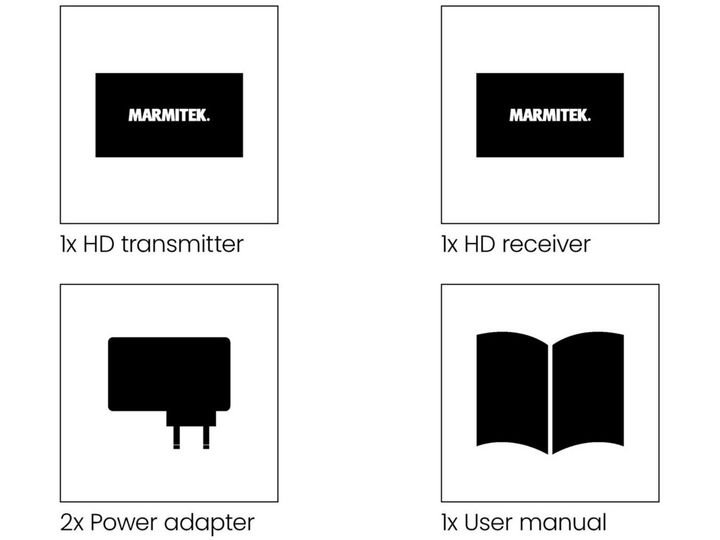

AC adapter included
Yes
Manual
Yes
